AFC 2804G60-00 12-2 HCF LITE 1000' Armored Cable

The AFC 2804G60-00 12-2 HCF LITE is an aluminum interlocked armored cable designed for healthcare facilities, providing reliable electrical distribution for lighting solutions, wire and cable applications, and switchgear supply. This cable is engineered to meet the rigorous demands of healthcare environments, including emergency circuits, with compliance to NEC® standards and UL classifications.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 2804G60-00
• Conductor Size: 12 American Wire Gauge
• Number of Conductors: 2
• Conductor Material: Copper
• Insulation Material: THHN
• Length: 1000 FT Reel
• Color: Black
• Product Weight: 130 lbs
• Made in USA: Yes (Country of Origin: United States)

Features

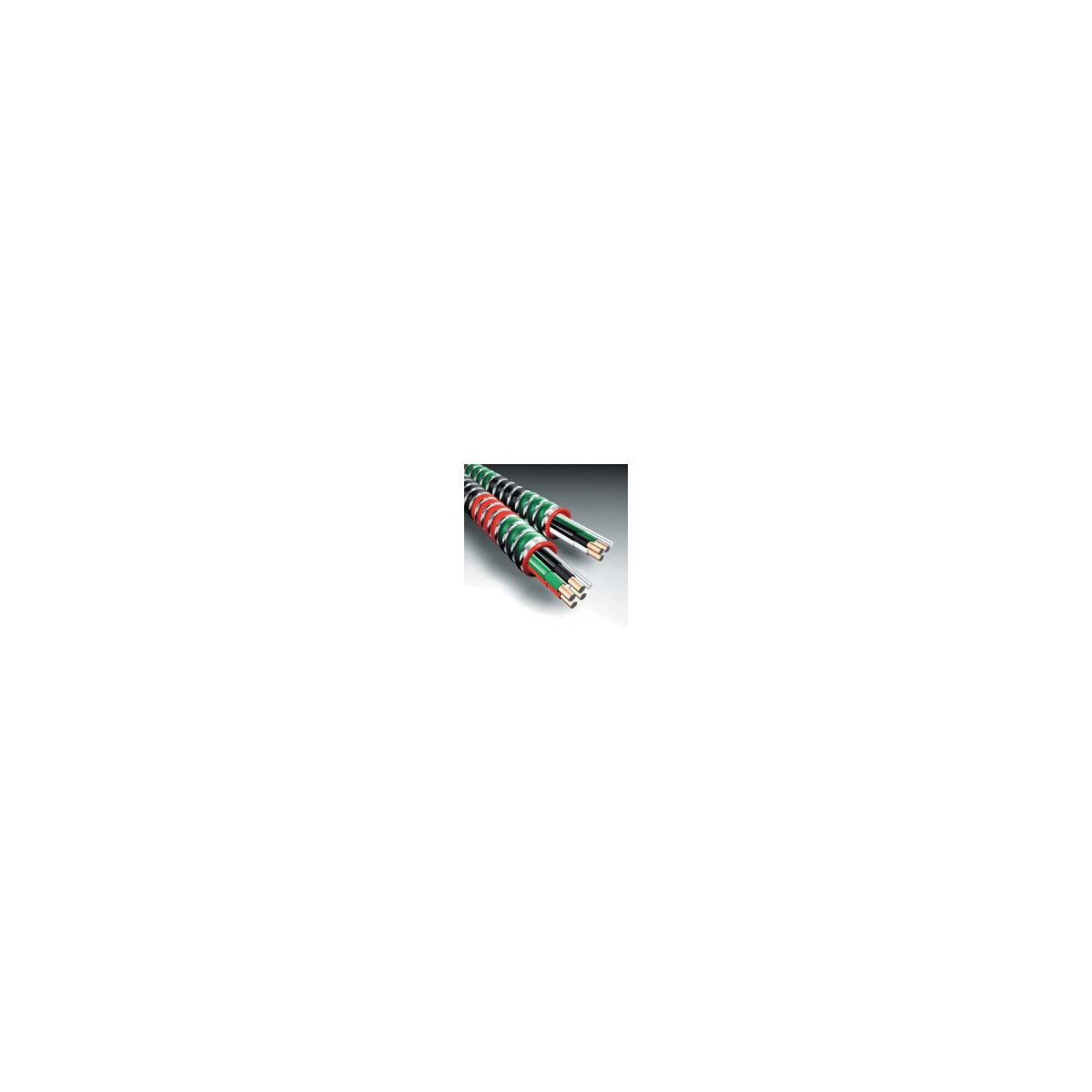

• Aluminum interlocked armor with green stripe for identification
• Moisture resistant fire retardant paper wrap insulation covering
• Rated for 600V maximum voltage
• UL Classified for 1, 2, and 3 hour fire penetration resistance
• Meets NEC¬Æ 250.118(8), 300.22(C), 320, 392, 517.13, 518, 645 requirements
• Cable tray rated and suitable for environmental air handling spaces (plenum)
• Integral 16 AWG green insulated copper grounding conductor
• Compatible with healthcare emergency circuit applications per NEC¬Æ 517.30(C)(3)(3)
• RoHS compliant aluminum armored cable

Downloads & Links

• Spec Sheet
