AFC 2307-60-00 10-2 MC PARKING DECK
SKU: #38969
Part: #2307-60-00
UPC: 077680115898
AFC 2307-60-00 10-2 MC PARKING DECK
SKU: #38969
Part: #2307-60-00
UPC: 077680115898
Description

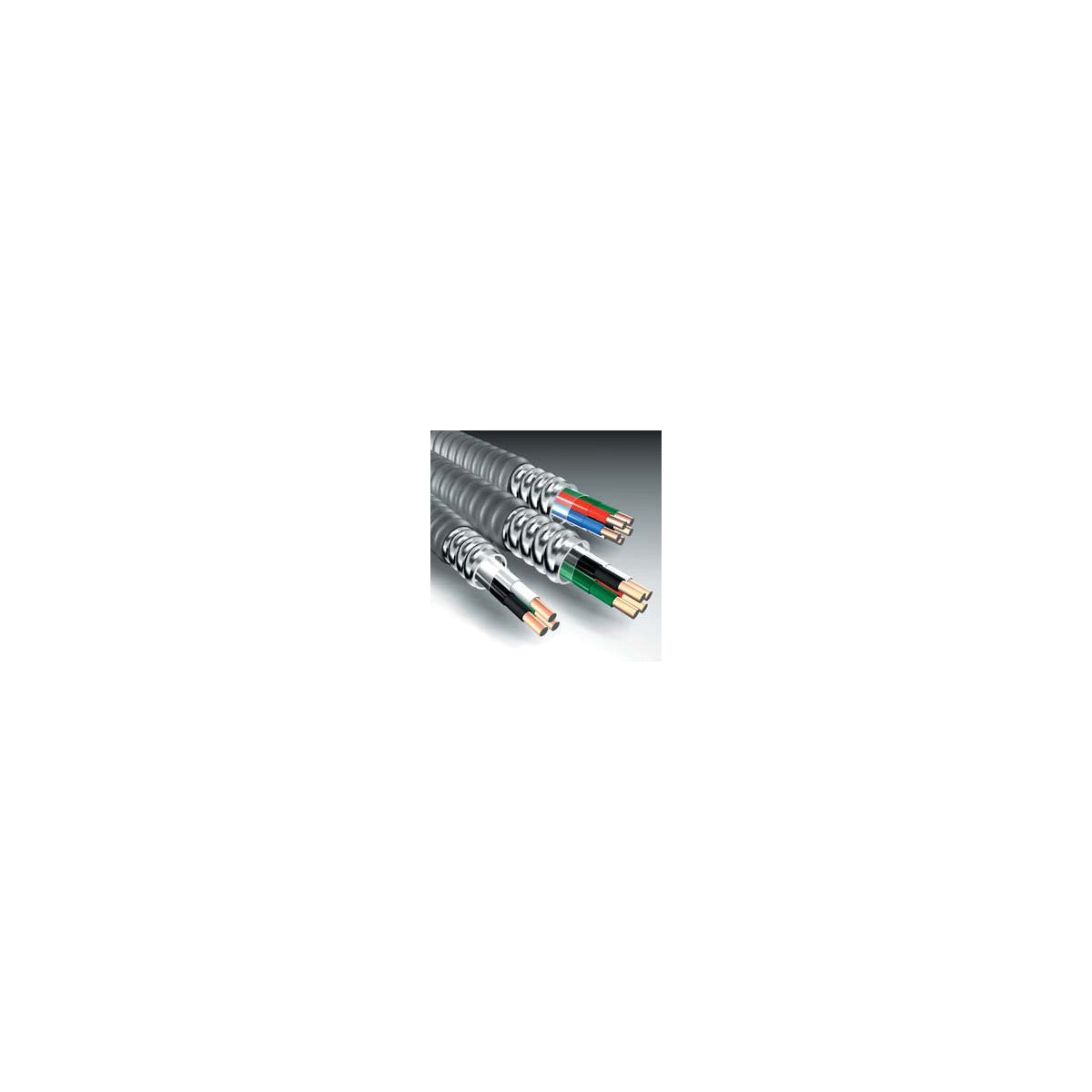

AFC 2307-60-00 10-2 MC Parking Deck Cable
The AFC 2307-60-00 is a Type MC Jacketed Parking Deck/Lot Cable designed for use in electrical distribution and lighting solutions. Manufactured by AFC Cable Systems in the United States, this cable features copper conductors and is suitable for applications requiring durable wire and cable solutions in parking decks and lots. It is constructed with interlocked galvanized steel armor and a gray PVC jacket, providing mechanical protection and environmental resistance.
Specifications
- Manufacturer Part #: 2307-60-00
- Conductor Size: 10 AWG
- Number of Conductors: 2
- Conductor Material: Copper
- Length: 1000 ft
- Product Weight: 309.8 lbs
- UPC: 077680115898
- Made in USA: Yes
- Country of Origin: United States
Features
- Type MC cable with interlocked galvanized steel strip armor and gray PVC jacket
- Solid copper conductors with THHN/THWN insulation
- Suitable for parking deck and parking lot electrical wiring
- Rated for 600V maximum voltage
- UL listed for direct burial, cable tray use, and wet locations
- Sunlight and oil resistant jacket
- Meets NEC and Federal Specification A-A-59544 standards
