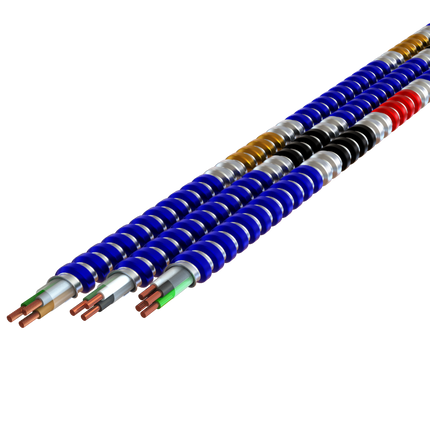

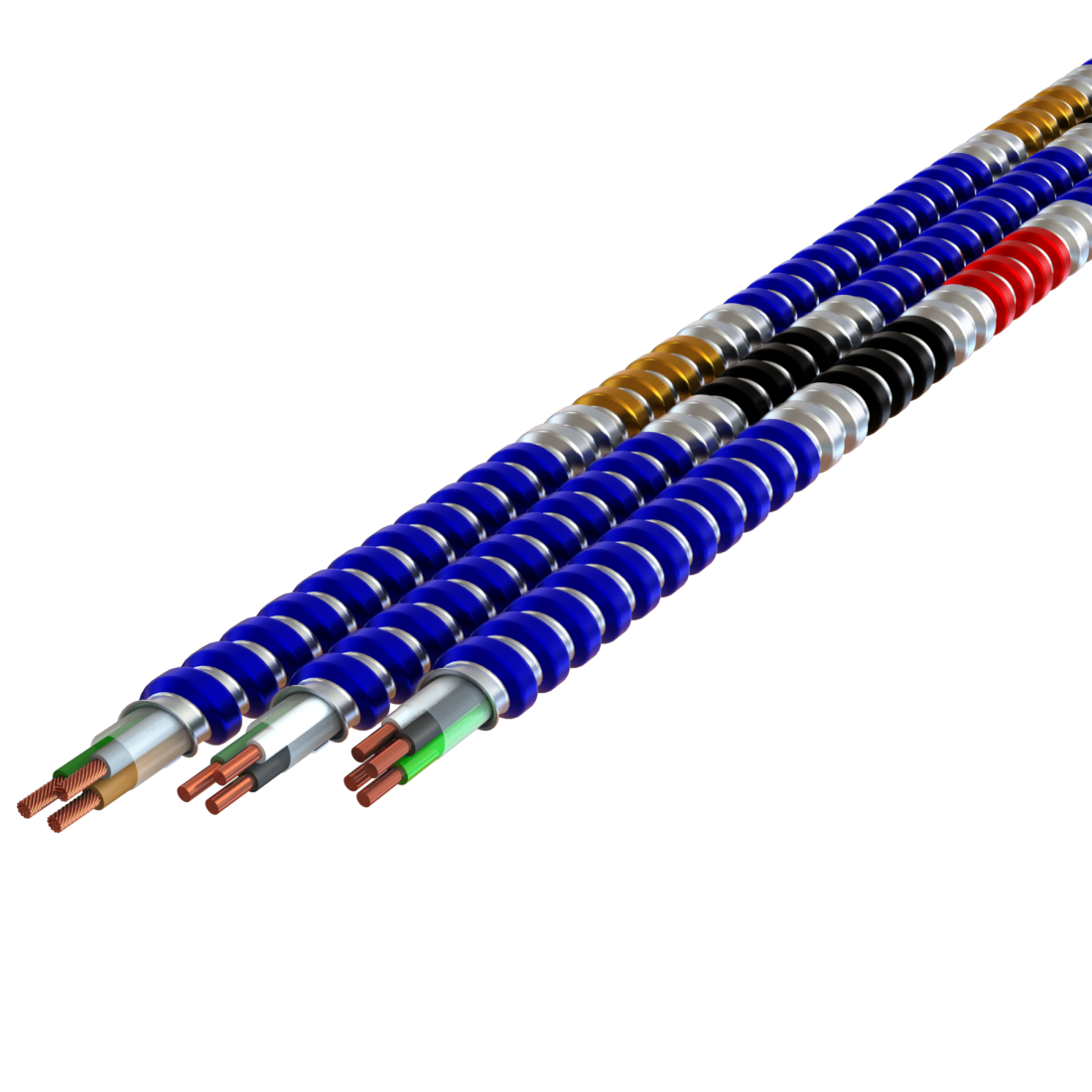

AFC 1708B60T80 10-2 MCTUFF IG BK WE Steel Armored Cable

The AFC 1708B60T80 is a steel armored cable designed for electrical distribution and wiring applications. This MC TUFF® IG Isolated Ground cable features solid copper conductors with THHN insulation, suitable for use in lighting solutions, wire and cable installations, and as part of switchgear supplier offerings. It is engineered for durability and compliance with industry standards, making it ideal for commercial and industrial electrical distributors requiring reliable building wire products.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 1708B60T80
• Conductor Size: 10 AWG
• Number of Conductors: 3
• Conductor Material: Copper
• Insulation Material: THHN
• Length: 250 ft
• Color: Blue
• Product Weight: 274.8 lbs
• Made in USA: Yes
• Country of Origin: United States

Features

• Interlocked galvanized steel strip armor with Blue Striped ColorSpec® ID
• Solid copper conductors with THHN/THWN insulation for high temperature rating (90°C dry)
• Isolated ground with additional green grounding conductor with yellow stripe
• UL Classified for 1, 2, and 3 hour fire penetration ratings
• Rated for maximum voltage of 600V
• Meets NEC® requirements for cable tray and environmental air-handling space installation
• Lightweight and durable design suitable for commercial electrical wiring

Downloads & Links

• Spec Sheet
