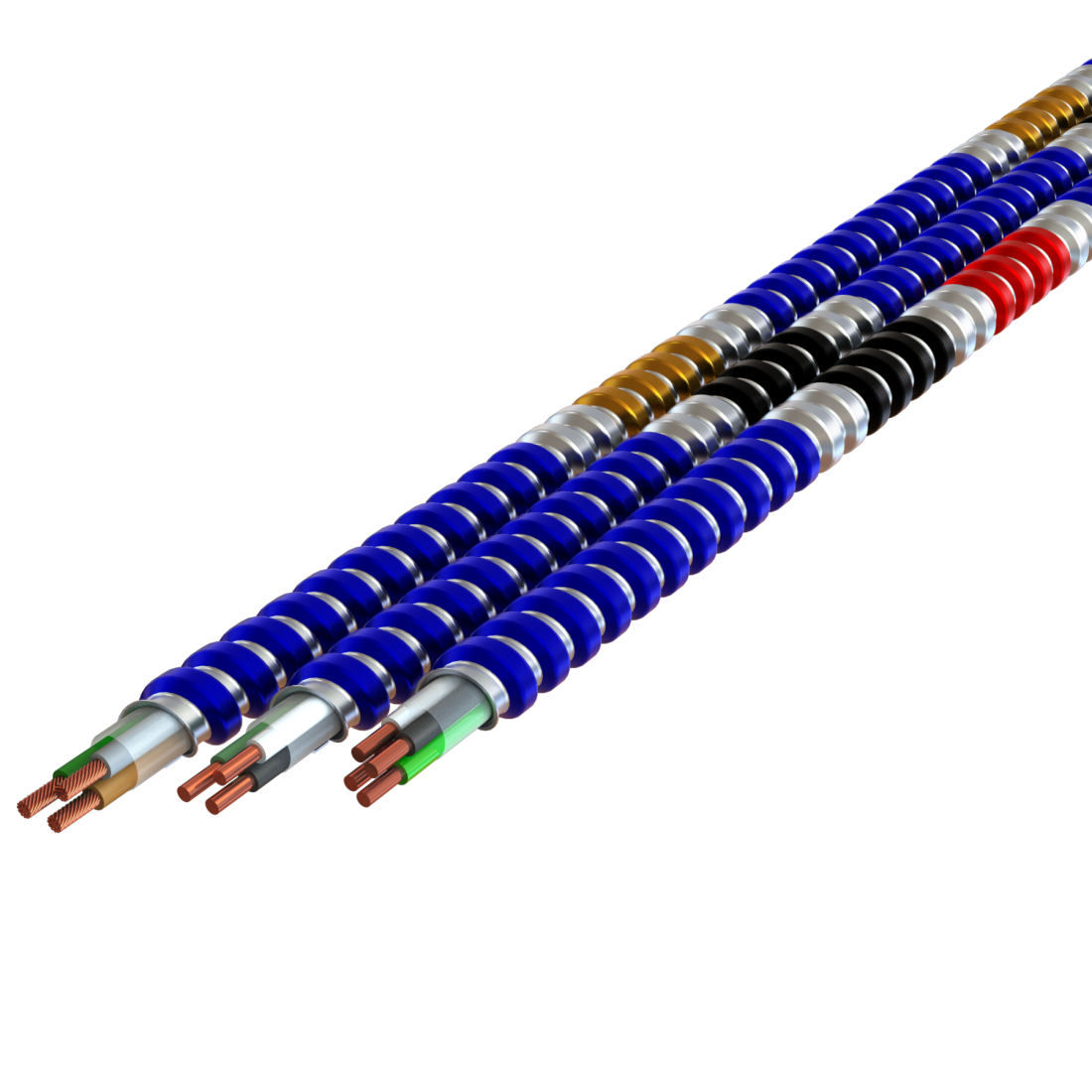

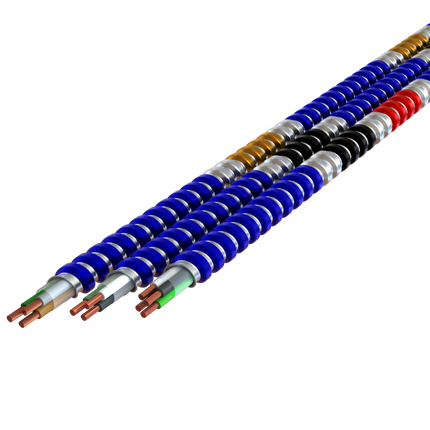

AFC 1708B42T80 10-2 MC TUFF IG BK W Cable – MC Cable

This AFC Cable Systems MC TUFF® IG Isolated Ground Steel Armored Cable is designed for robust electrical applications requiring durable wire and cable solutions. It features solid copper conductors with THHN insulation, suitable for electrical distributors and switchgear suppliers needing reliable wiring for lighting solutions and general building wire installations. The cable is made in the USA and rated for 600V maximum voltage with a 90°C dry temperature rating.

Specifications

• Name: AFC 1708B42T80 10-2 MC TUFF IG BK W
• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 1708B42T80
• Conductor Size: 10 AWG
• Number of Conductors: 2
• Conductor Material: Copper
• Insulation Material: THHN
• Length: 250 ft
• Color: Blue
• Product Weight: 68.7 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• Interlocked Galvanized Steel Strip Armor with Blue Stripe and ColorSpec® ID
• Solid Copper Conductors with THHN/THWN Insulation
• Rated for 600V Maximum Voltage and 90°C Dry Temperature
• Includes 2 Solid or Stranded Grounding Conductors, Green with Yellow Stripe
• Meets UL 83, 1479, 1569, 1581, 2556 Standards and NEC® Compliance
• UL Classified for 1, 2, and 3 Hour Fire Penetration
• Suitable for Environmental Air-Handling Space Installation per NEC® 300.22(C)
• Lightweight Traditional Type MC Cable Construction
