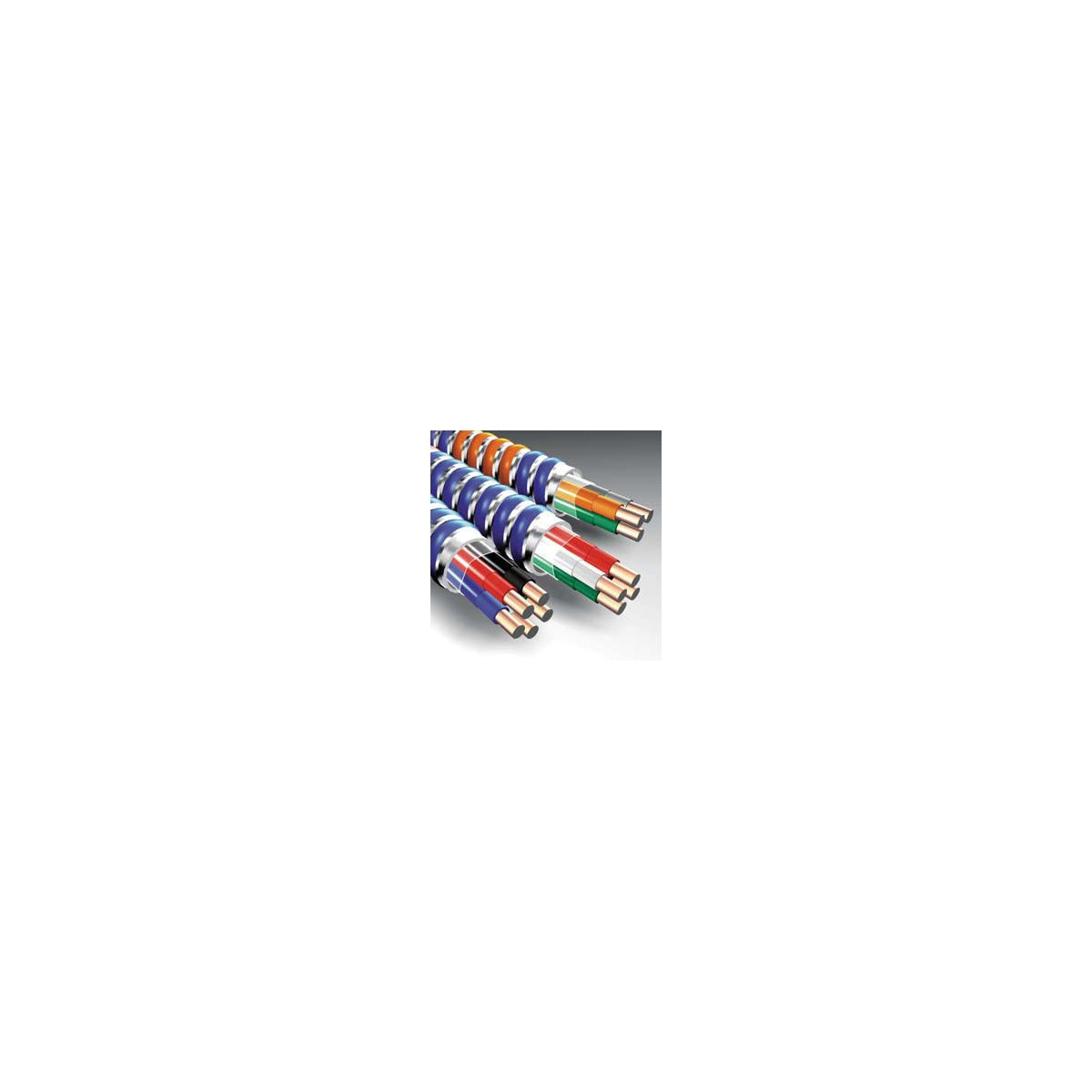

AFC 1707B42T01 10-2 MC TUFF BN GY G Electrical Cable

The AFC 1707B42T01 is a Type MC TUFF® lightweight steel cable designed for electrical distribution and wiring applications. Manufactured by AFC Cable Systems in the USA, this cable features copper conductors with THHN insulation, suitable for use in lighting solutions, wire and cable installations, and as a component within switchgear systems. Its interlocked galvanized steel strip armor provides mechanical protection while maintaining flexibility, making it appropriate for surface mounting, embedded plaster installations, and cable tray applications per NEC® guidelines.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 1707B42T01
• Conductor Material: Copper
• Insulation Material: THHN
• Number of Conductors: 2
• Product Weight: 56.4 lbs
• Country of Origin: United States
• Made in USA: Yes
• Maximum Temperature Rating: 90°C (Dry)
• Maximum Voltage Rating: 600V
• Armor: Interlocked Galvanized Steel Strip (Blue Striped) with ColorSpec® ID
• Assembly Covering: Polypropylene Tape
• Grounding: Insulated Green Grounding Conductor

Features

• UL Classified for 1, 2, and 3 hour fire penetration
• Meets NEC® 230.43, 250.118, 300.22(C), and related codes for cable tray and air-handling space installation
• Complies with Federal Specification A-A-59544
• Meets OSHA and HUD requirements
• Suitable for surface mounting, fishing, and embedding in plaster
• Color-coded conductors for easy identification
• U.S. Patent No. 8,278,554 B2
