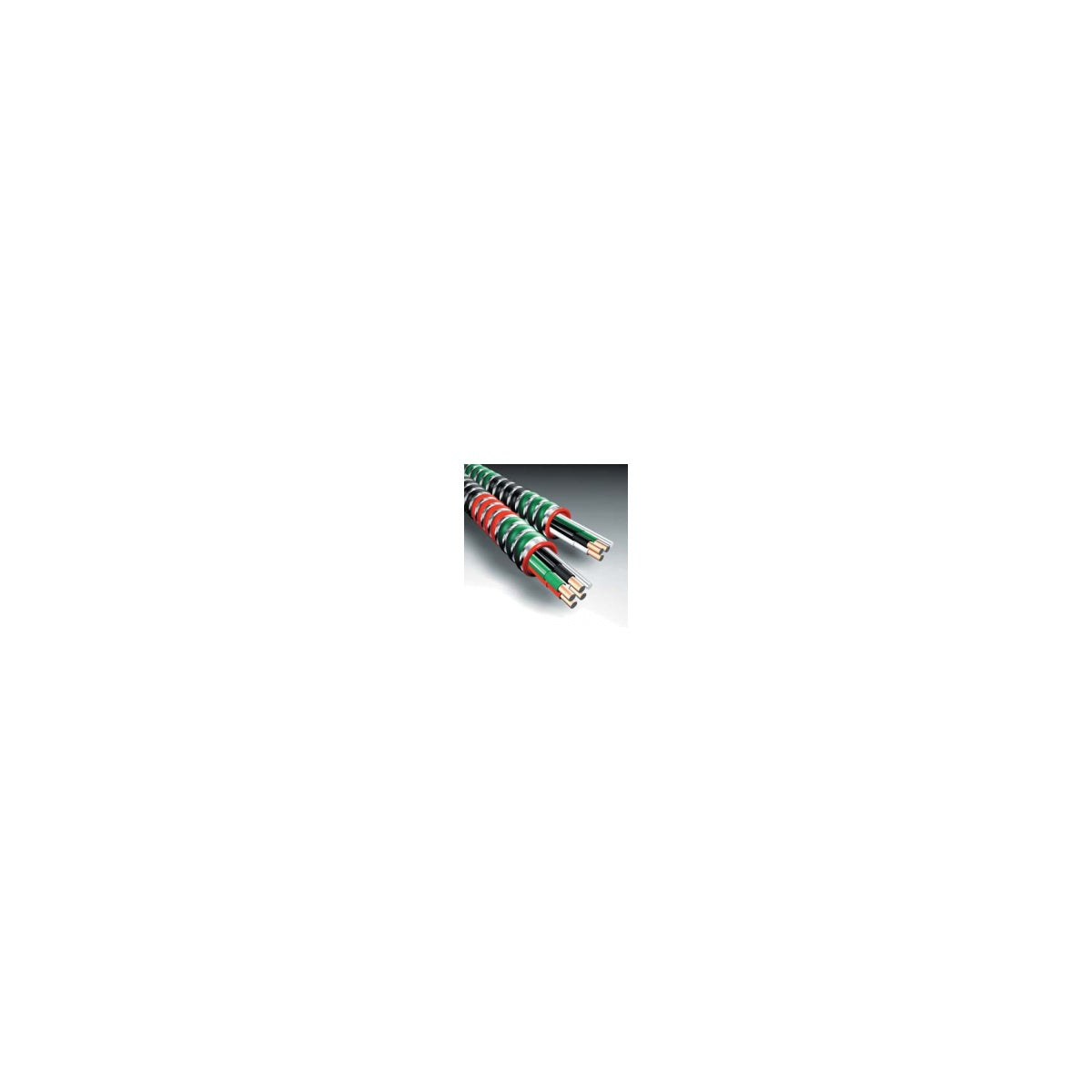

AFC 1508G42-00 10-3 HCF-90 250' COI Healthcare Facilities Cable

The AFC 1508G42-00 is a Type AC HCF-90® steel armored cable designed for healthcare facilities, providing reliable wire and cable solutions for electrical distributors and switchgear suppliers. It features solid copper conductors with THHN insulation and a moisture-resistant fire retardant paper wrap, suitable for use in healthcare settings requiring compliance with NEC and UL standards. This cable supports 600V maximum voltage and is rated for 90°C dry temperature environments, making it appropriate for lighting solutions and power distribution in critical healthcare infrastructure.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 1508G42-00
• Conductor Material: Copper
• Voltage Rating: 600V
• Temperature Rating: 90¬∞C (Dry)
• Length: 250 feet
• Number of Conductors: 3 (10 AWG solid)
• Armor: Interlocked Galvanized Steel Strip (Green Striped)
• Conductor Insulation: THHN
• Conductor Insulation Covering: Moisture Resistant Fire Retardant Paper Wrap
• Grounding: 10 AWG Solid Green Insulated Copper Grounding Conductor
• Approximate Weight: 383 lbs per 1000 ft
• Approximate Armor Outer Diameter: 0.696 inches
• Country of Origin: United States
• Made in USA: Yes
• UPC: 077680152008

Features

• UL Classified for 1, 2, and 3 hour fire penetration (R14141)
• Meets NEC¬Æ 517.13 and 517.30(C)(3)(3) requirements for healthcare facilities
• Cable tray rated and suitable for environmental air-handling space installation per NEC¬Æ 300.22(C)
• Integral 16 AWG bond wire/armor combination and insulated copper grounding conductor
• Complies with Federal Specification A-A-59544 and OSHA/HUD requirements
• Designed specifically for emergency circuits in healthcare settings
• Patent protected design (U.S. Patent No. 8,278,554 B2)

Downloads & Links

• Spec Sheet
