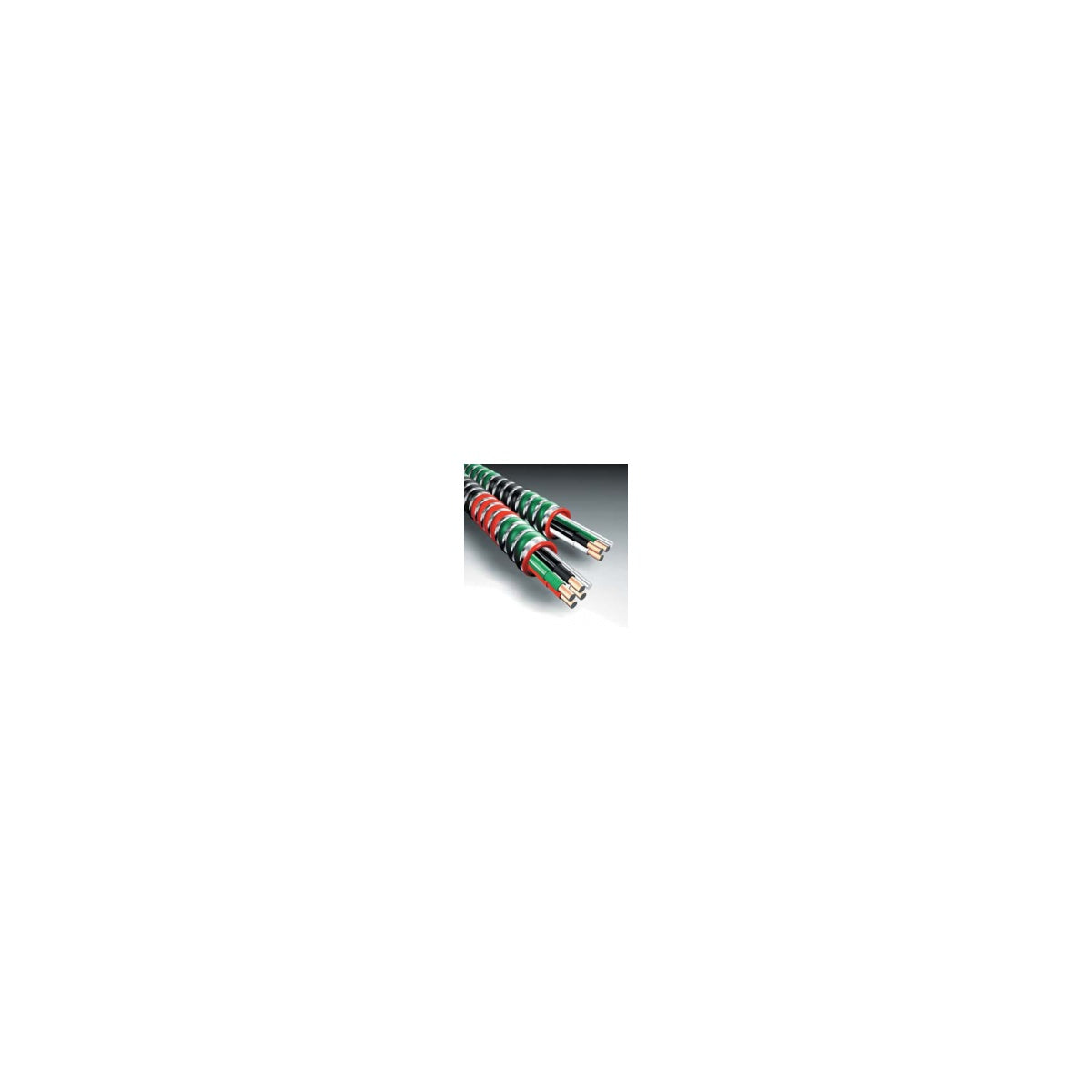

AFC 1507G60-00 10-2 HCF-90 Steel Healthcare Facilities Cable

The AFC 1507G60-00 is a Type AC HCF-90 steel armored cable designed for healthcare facilities. It features solid copper conductors with THHN insulation and a moisture-resistant fire retardant paper wrap, suitable for electrical distribution in healthcare environments. This cable supports 600V maximum voltage rating and is rated for 90°C dry applications. Manufactured in the USA by AFC Cable Systems, it is ideal for wiring in healthcare settings, meeting stringent safety and fire penetration standards.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 1507G60-00
• Conductor Material: Copper
• Voltage Rating: 600V
• Temperature Rating: 90¬∞C (Dry)
• Length: 1000 ft
• Product Weight: 308.8 lbs
• Grounding: 10 AWG Solid Green Insulated Copper Grounding Conductor
• Armor: Interlocked Galvanized Steel Strip (Green Striped)
• Insulation: THHN with moisture resistant fire retardant paper wrap
• Country of Origin: United States
• Made in USA: Yes
• UPC: 077680151797

Features

• UL Classified for 1, 2, and 3 hour fire penetration (UL File Reference R14141)
• Meets NEC¬Æ 250.118(8), 300.22(C), 392, 320, 517.13, 518, 645 requirements
• Complies with Federal Specification A-A-59544 (formerly J-C-30B)
• Suitable for cable tray installation per NEC¬Æ
• Environmental air-handling space installation rated
• Integral bond wire/armor combination grounding and green insulated copper grounding conductor
• U.S. Patent No. 8,278,554 B2

Downloads & Links

• Spec Sheet
