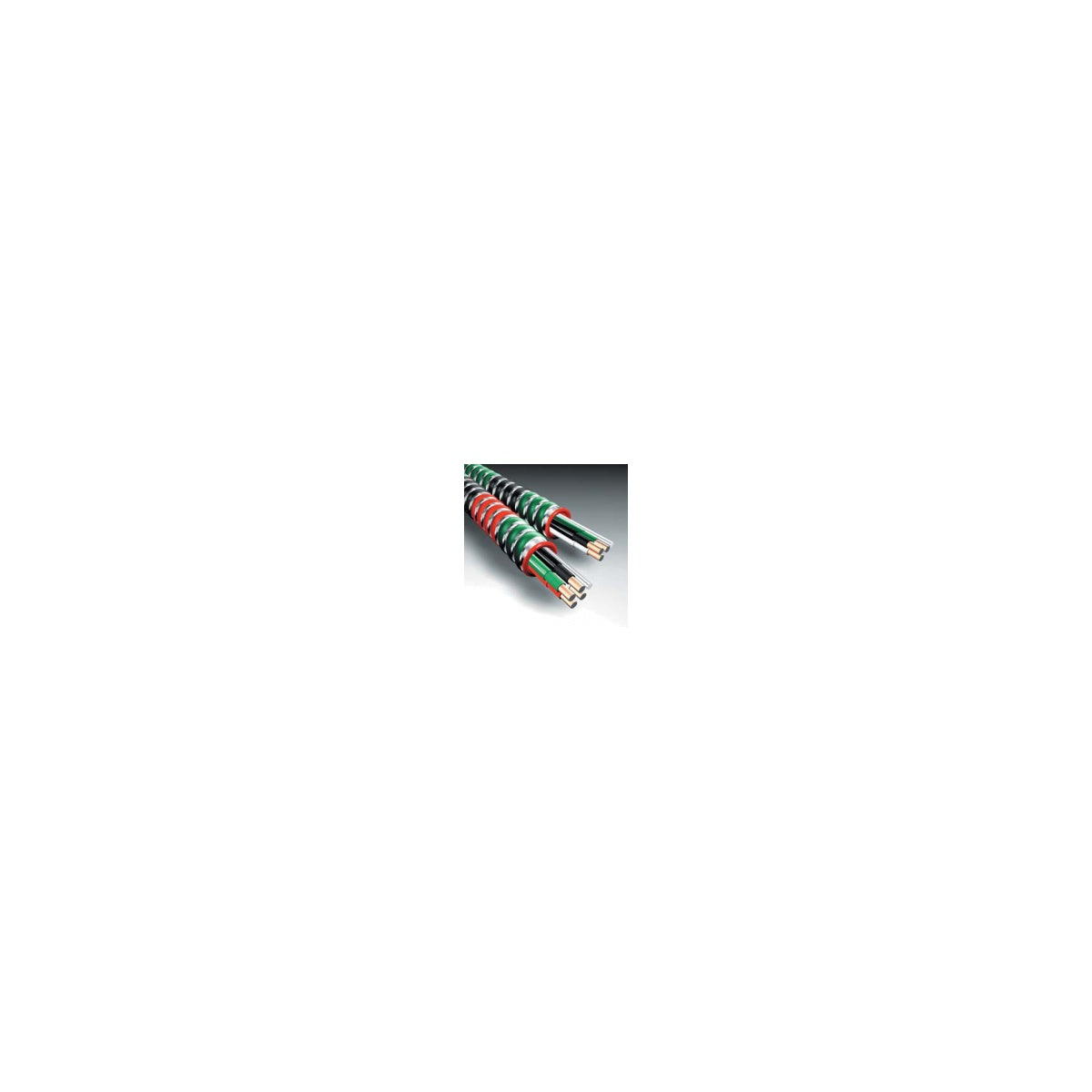

AFC 1507G42-00 10-2 HCF-90 250' COI Steel Healthcare Facilities Cable

This AFC Cable Systems Type AC HCF-90® Steel Healthcare Facilities Cable is designed for healthcare electrical applications requiring reliable, fire-retardant wiring. It features solid copper conductors with THHN insulation and a moisture-resistant fire retardant paper wrap, making it suitable for use in healthcare facilities where safety and code compliance are critical. The cable is armored with interlocked galvanized steel strip for mechanical protection and includes a green insulated copper grounding conductor. It is rated for 600V maximum voltage and 90°C maximum temperature (dry), meeting UL and NEC standards for healthcare and environmental air-handling space installations. This product is made in the USA and is ideal for electrical distributors and lighting solutions providers needing compliant wire and cable for healthcare settings.

Specifications

• Manufacturer: AFC Cable Systems
• Manufacturer Part #: 1507G42-00
• Conductor Material: Copper
• Conductor Insulation: THHN
• Conductor Insulation Covering: Moisture Resistant Fire Retardant Paper Wrap
• Armor & Jacket: Interlocked Galvanized Steel Strip (Green Striped)
• Grounding: 16 AWG Integral Bond Wire/Armor Combination and Green Insulated Copper Grounding Conductor
• Maximum Temperature Rating: 90°C (Dry) Type ACTHH
• Maximum Voltage Rating: 600V
• Length: 250 feet
• Weight: 77.2 lbs (approximate)
• Country of Origin: United States
• Made in USA: Yes

Features

• UL Classified for 1, 2, and 3 hour fire penetration
• Meets NEC® 250.118(8), 300.22(C), 392, 320, 517.13, 518, 645 requirements
• Compliant with Federal Specification A-A-59544 (formerly J-C-30B)
• Cable Tray Rated for installation per NEC®
• Environmental Air-Handling Space Installation compliant
• Includes green insulated copper grounding conductor for enhanced safety
• Suitable for emergency circuits in healthcare settings with special NEC® 517.30 guidance

Downloads & Links

• Spec Sheet
