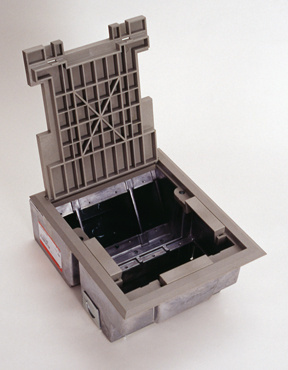

AF3 Series Raised Floor Box – Raised Floor Boxes for Electrical Distribution

The AF3 Series Raised Floor Box by Wiremold is designed to provide flexible, accessible, and capacious power and communication solutions for raised floor applications. Ideal for use in environments such as PBX rooms, MIS processing rooms, university computer labs, financial institutions, and houses of worship, this product is suited for electrical distributors and lighting solutions providers requiring reliable wire and cable management. Compatible with the Walkerflex® Manufactured Wiring System, the AF3 box supports multiple power and communication configurations through its four compartments.

Specifications

• Material: Die-Cast Aluminum
• Construction: Assembled
• Cable Entry: Through Floor
• Cubic Capacity: 303 in¬≥
• Country of Origin: United States
• Made in USA: Yes
• Product Weight: 6.5 lbs
• Manufacturer: Wiremold
• Manufacturer Part #: AF3-KT

Features

• Four separate compartments accommodate up to eight gangs of power, communication, and audio/video devices
• Unique built-in service divider for flexible power, communication, and audio/video device configurations
• Polycarbonate hinged lid and trim flange available for carpet or tile applications with color options in black, brown, or gray
• Designed for installation after floor coverings are installed, facilitating ease of installation
• Locking tabs secure the box to the floor panel for quick and reliable installation
• Compatible with Walkerflex¬Æ Prefabricated Modular Wiring System for prewired options reducing labor costs
• UL Listed to U.S. and Canadian safety standards

Downloads & Links

• AF Series Multi-Service Raised Floor Boxes - AF3, AF4"
• FloorSource AF Series
• FloorSource Raised Floor Boxes Cutsheet
• Spec Sheet
