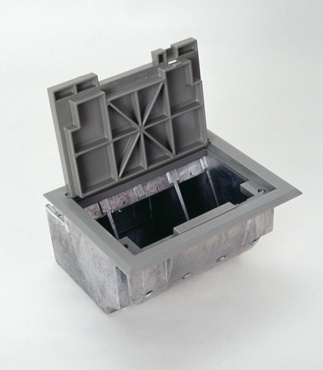

AF1 Series Raised Floor Box – Raised Floor Electrical Box

The AF1 Series Raised Floor Box by Wiremold is a die-cast aluminum floor box designed for raised floor applications, providing three separate compartments to accommodate a combination of power, communication, and audio/video devices. Suitable for environments such as PBX rooms, MIS processing rooms, university computer labs, financial institutions, and houses of worship, it offers flexibility and capacity to meet diverse wiring needs. This product is compatible with the Walkerflex® Manufactured Wiring System and is designed for installation through the floor, ensuring accessibility and ease of use for electrical distributors and lighting solutions providers.

Specifications

• Material: Die-Cast Aluminum
• Construction: Assembled
• Cable Entry: Through Floor
• Cubic Capacity: 208.6 in¬≥
• Service: Triple
• Maximum Floor Thickness: 1 1/2" (includes floor covering)
• Panel Opening: 8" x 6" (203mm x 152mm)
• Cover Size: 7 1/2" x 5" (191mm x 127mm)
• Module Depth Overall: 5" (127mm)
• Overall Trim Ring Dimensions: 8 3/4" x 6 3/4" (222mm x 171mm)
• Made in USA: Yes
• Country of Origin: United States
• Manufacturer: Wiremold
• Manufacturer Part Number: AF1-YC
• Product Weight: 4.75 lbs

Features

• Three compartments provide separation for power, communication, and audio/video devices with built-in service dividers arranged in a single-double, single-gang configuration.
• Die-cast aluminum housing offers enhanced strength and reliability for raised floor installations.
• Polycarbonate hinged lid and trim flange available for carpet or tile applications with color options including black, brown, or gray.
• Compatible with Walkerflex¬Æ Manufactured Wiring System for modular wiring solutions.
• Designed for installation after floor coverings are in place, facilitating ease of installation.
• Meets NEC Section 300-22(C) for use in air handling spaces and raised floor plenums.
• Supports flexible power and communication configurations to meet diverse wiring requirements.
