Features

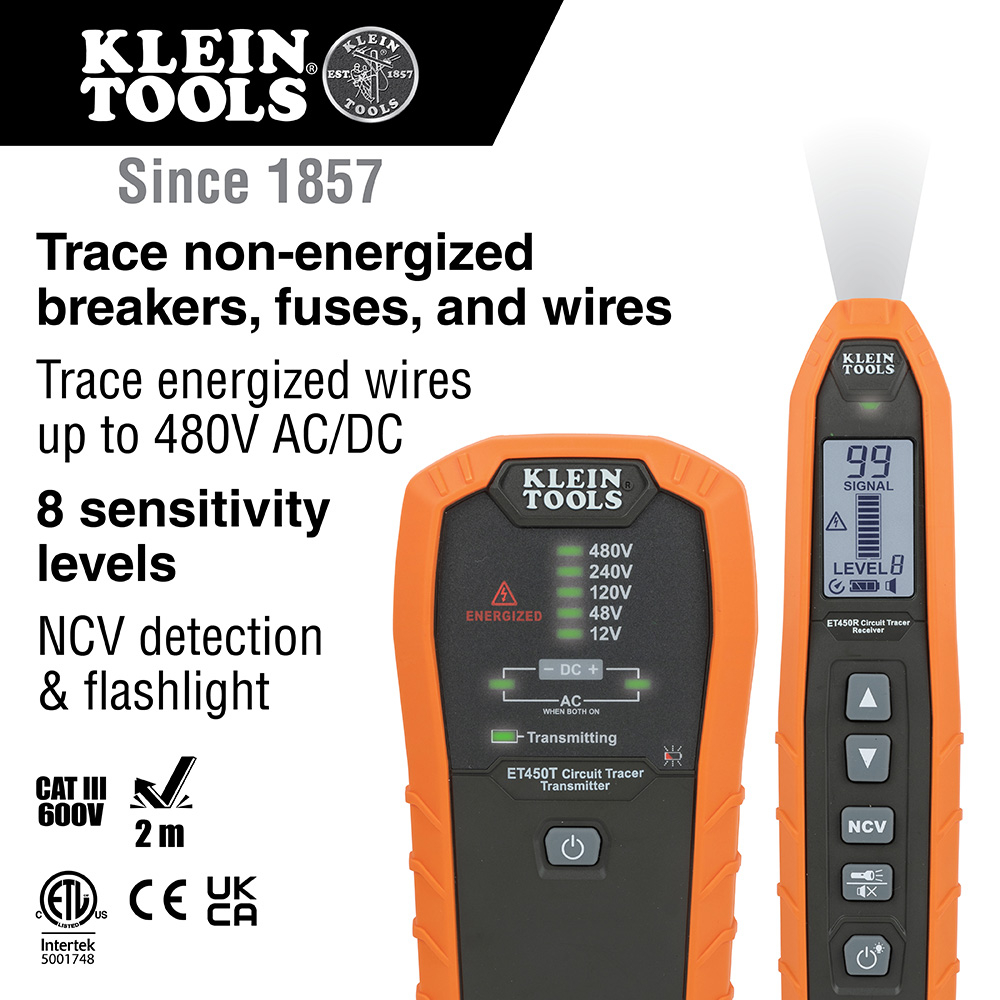

• The Advanced Circuit Tracer Kit provides reliable tracing of energized or non-energized breakers, fuses, and wires

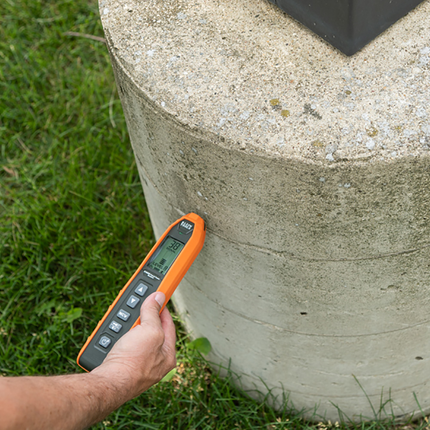

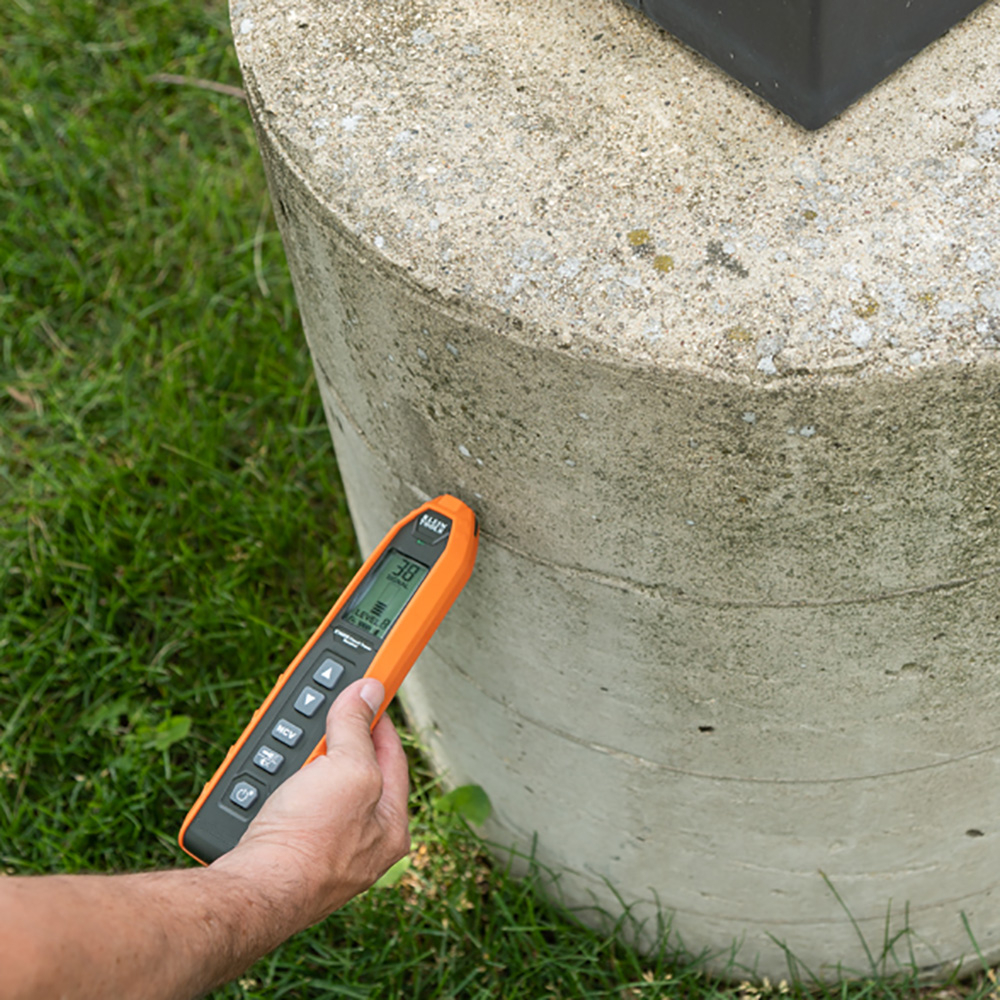

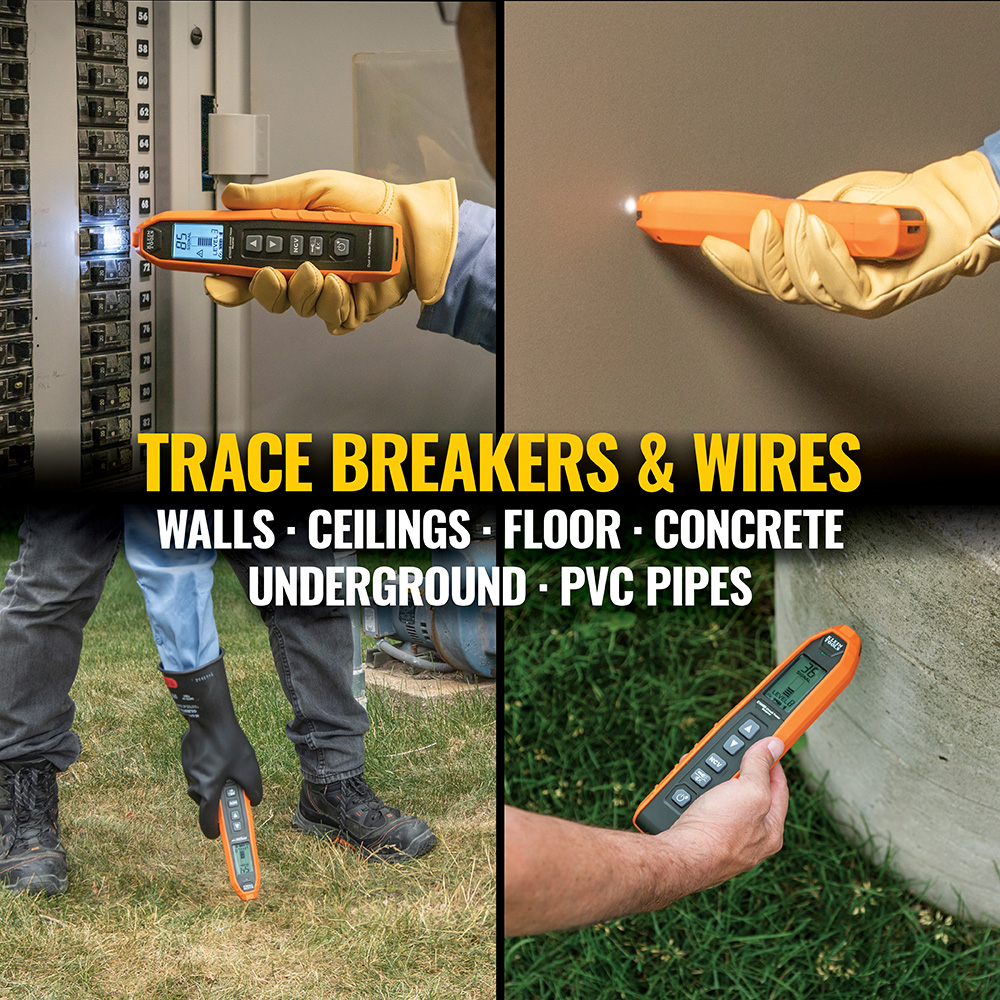

• Easily adjust receiver sensitivity level to detect the transmitted signal through drywall, cement block, and underground

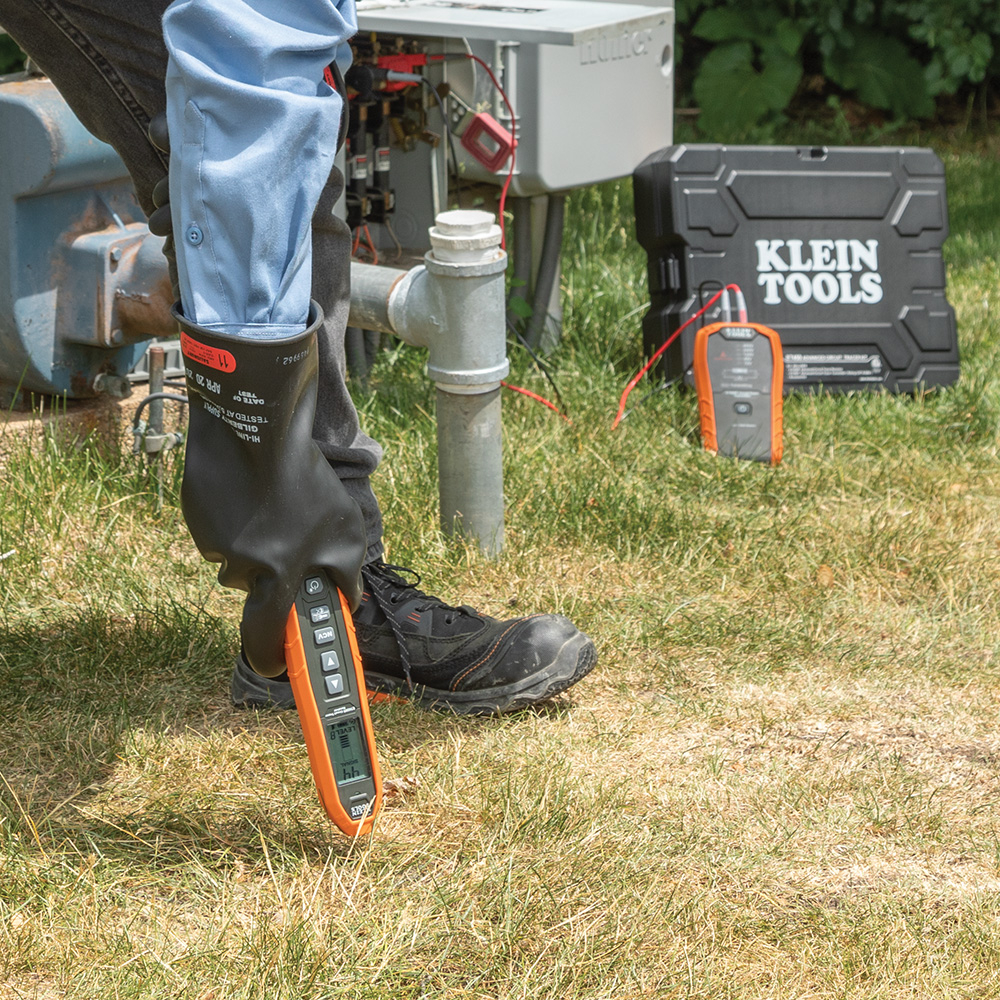

• Versatile applications include tracing wires, conduit or pipes, or a single wire in a bundle
• Audible beep and visual indicators on receiver denotes signal strength

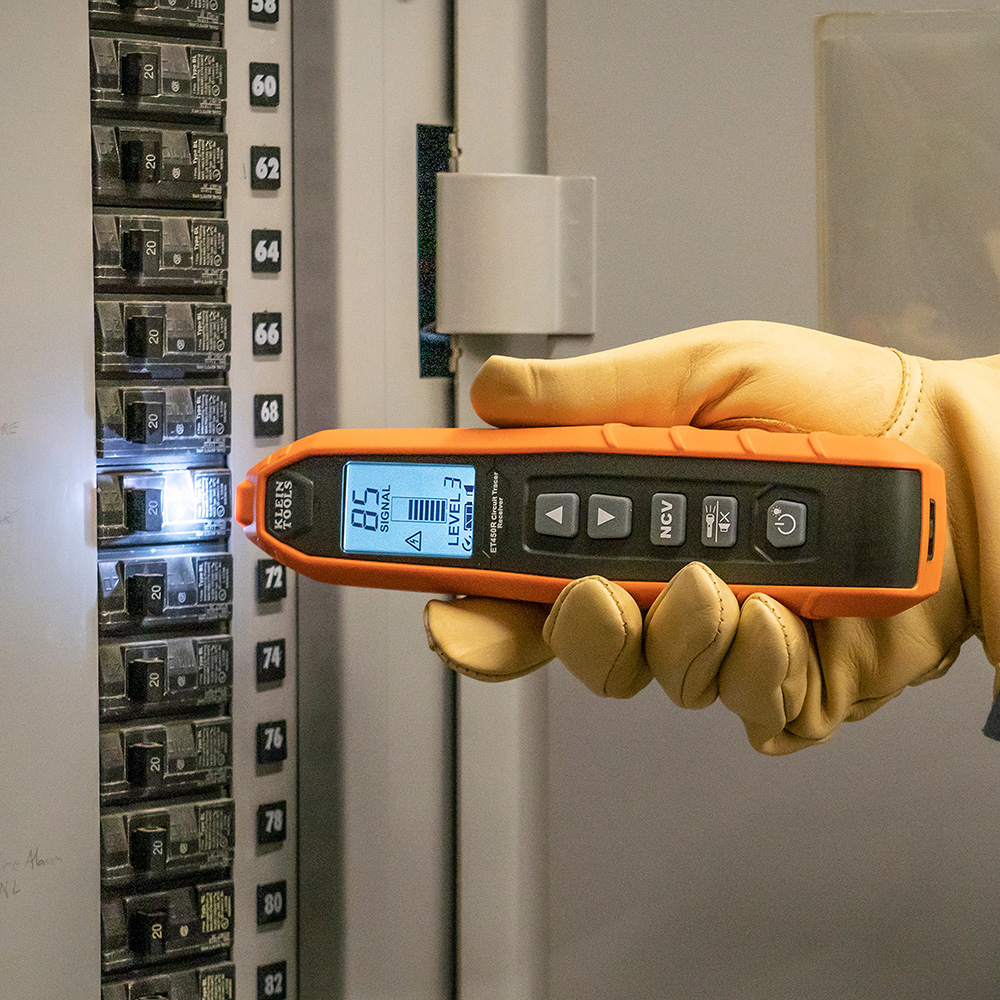

• Receiver features a flashlight for illumination in low-light areas and NCV function to test if wires are energized

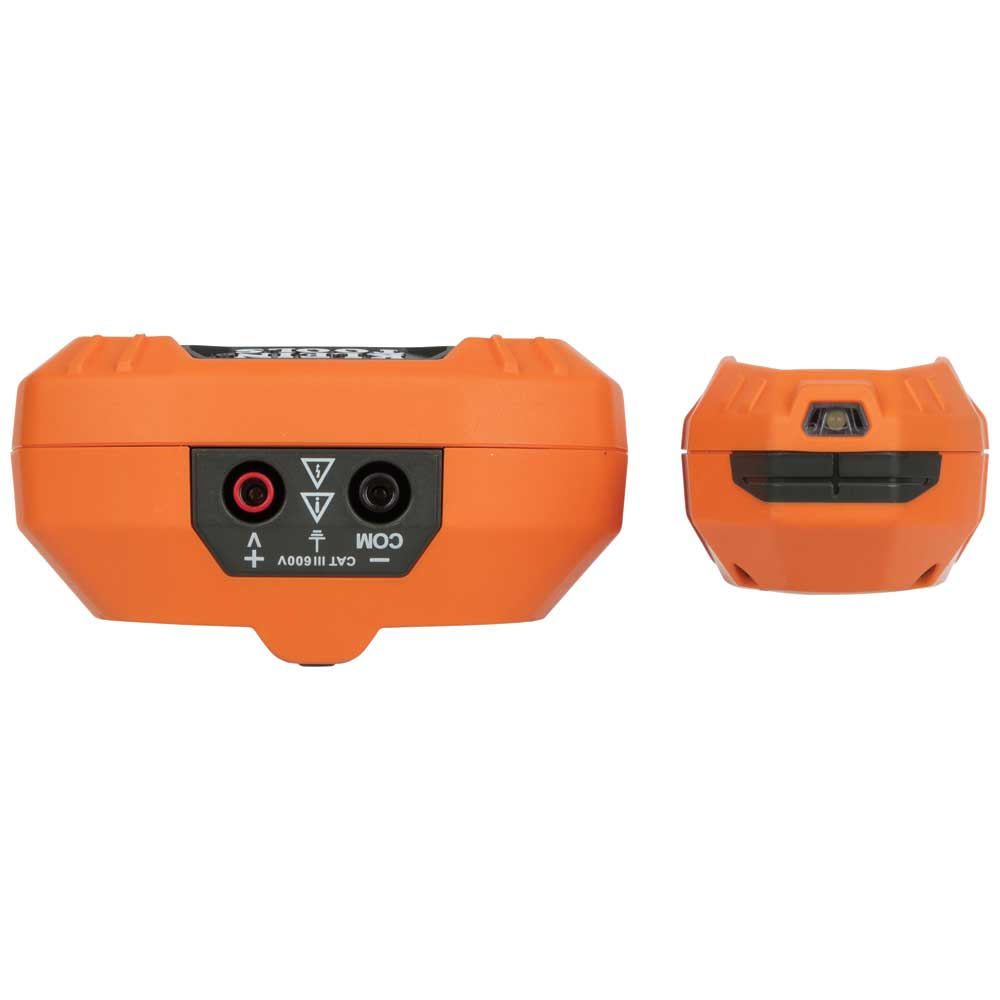

• Transmitter has AC/DC external voltage indicators of 12V, 48V, 120V, 240V, and 480V

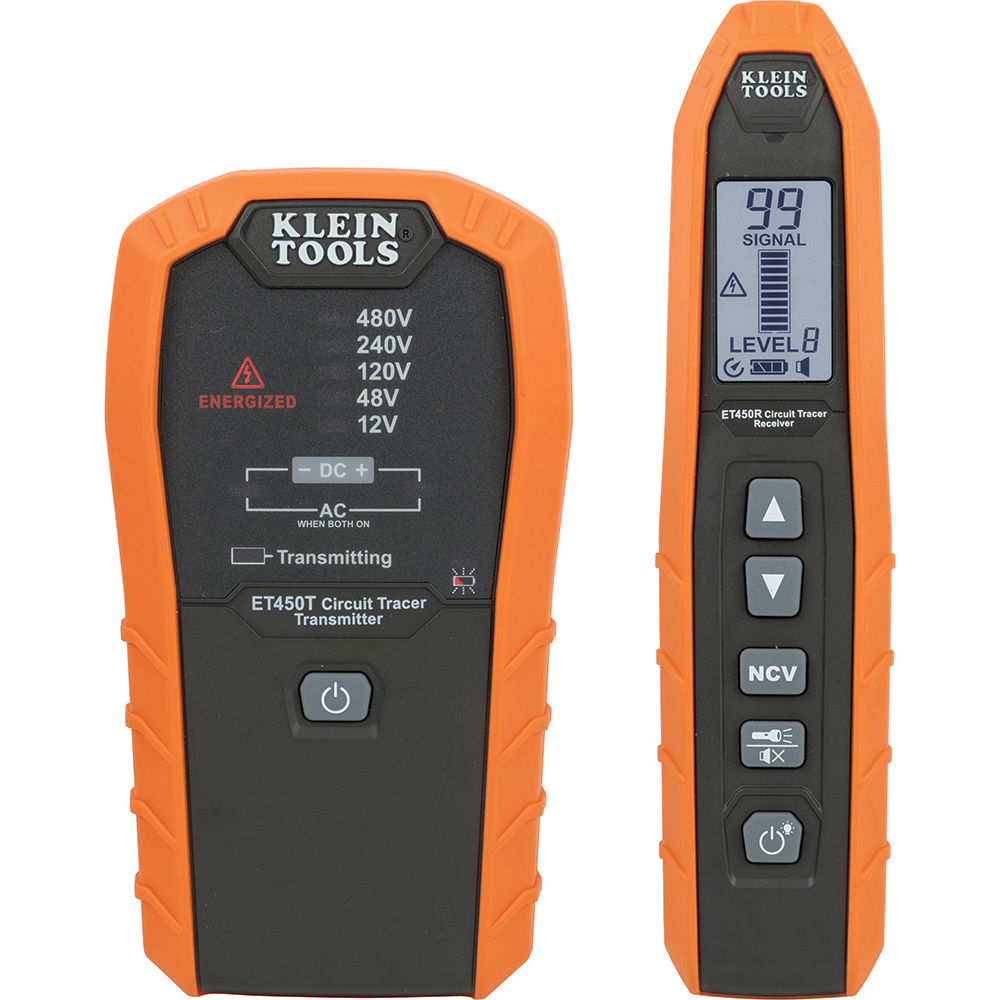

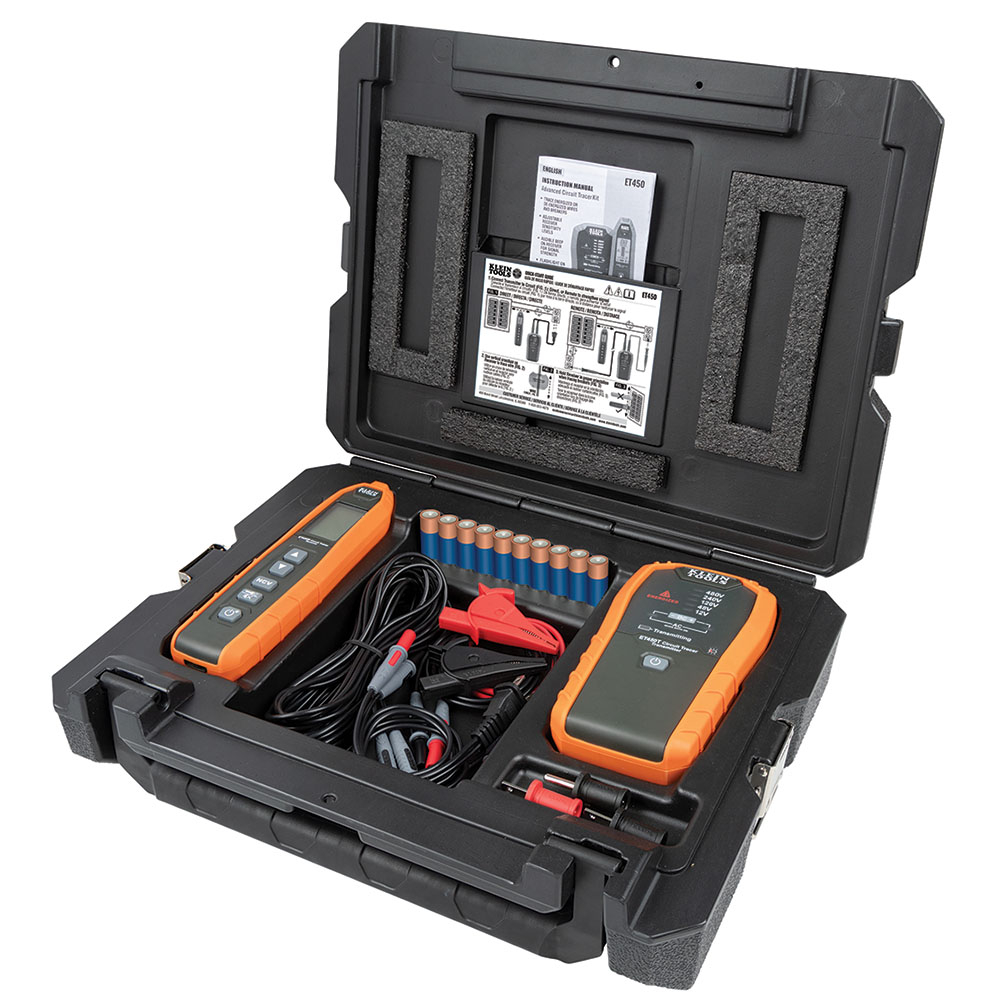

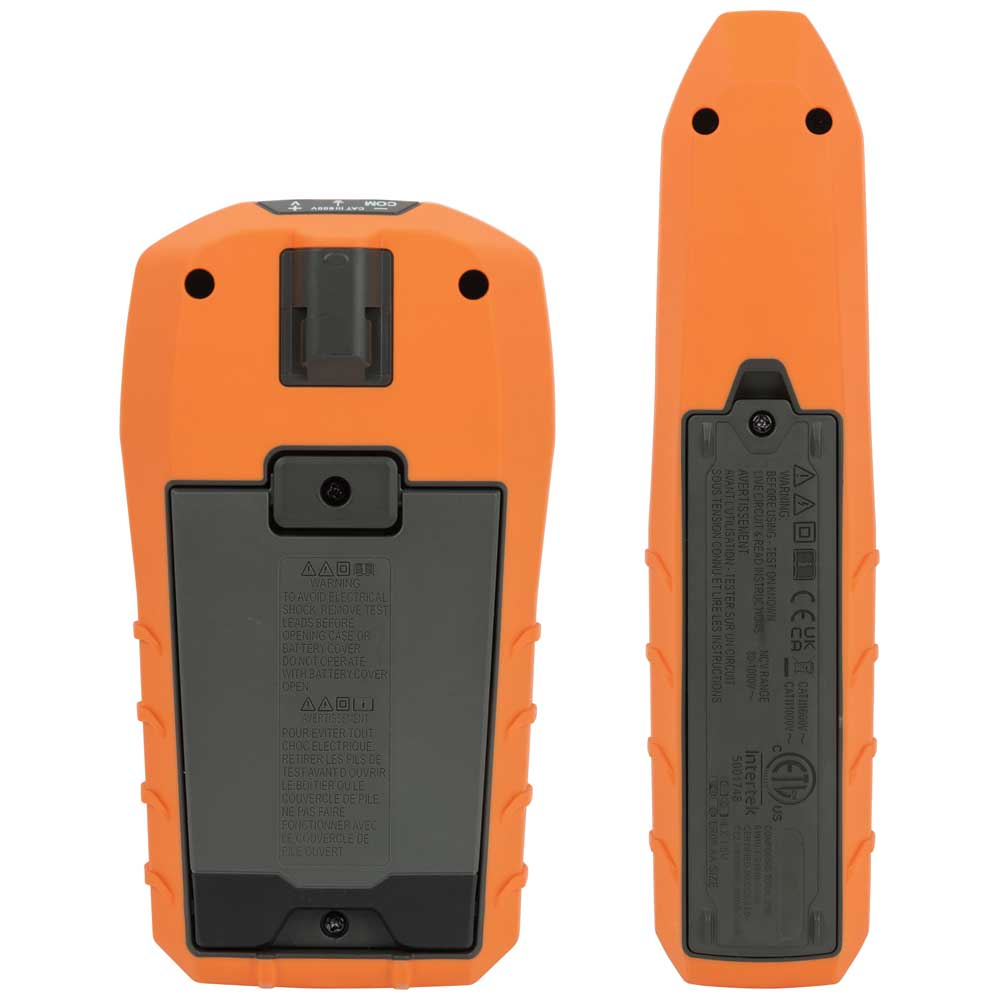

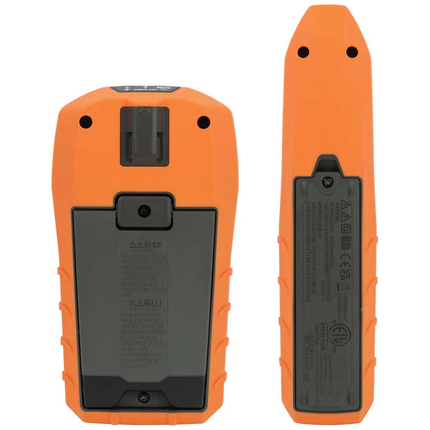

• Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case
• Flashlight and NCV Function on Receiver; Accessories, and Hard Case

Warnings

• Read, understand, and follow all warnings and instructions before operating testers.
• Before each use, verify tester operation by testing on a known live and correctly wired receptacle and circuit.
• DO NOT use if the tester appears damaged in any way.
• Always consult a qualified electrician to resolve wiring problems. ALWAYS adhere to local and national safety codes.
• NEVER use the tester on a circuit with voltages that exceed the category-based rating of this tester.
• Inspect the meter and test leads before use. DO NOT use if they appear damaged.
• DO NOT use testers during electrical storms or in wet weather.
• Turn off testers and disconnect test leads before attempting to replace batteries or fuses.
• Use personal protective equipment to prevent shock and arc blast injury where hazardous live connectors are exposed.

Specifications

• Included: Transmitter, Receiver, Blade and Ground Prongs, Alligator Clips, 3' and 20' Lead Adapters, AC Plug Leads, Instructions, All Required Batteries, and Hard Carrying Case
• Application: Trace Energized and Non-Energized Breakers, Fuses, and Wires
• Overall Height: Receiver - 1.84" (4.5 cm); Transmitter - 1.51" (3.9 cm)
• Overall Width: Receiver - 3.90" (9.9 cm); Transmitter - 2.07" (5.3 cm)
• Standard: CAT III 600V
• Material: ABS and Electronic Components
• Lead Length: 3' (1 m) and 20' (6.1 m)
• Type: Circuit Tracer
• Drop Protection: 6' (2 m)
• Voltage: External Indicators for 12V, 48V, 120V, 240V, and 480V
• Overall Length: Receiver - 7.05" (17.9 cm); Transmitter - 8.72" (22.2 cm)
• Ingress Protection: IP42
• Display: Receiver - LCD with Backlight
• Tests Continuity: No
• Frequency: Transmitter - AC 45Hz to 65Hz; Receiver - 33kHz
• Interchangeable Leads: Yes
• Batteries: Transmitter - 6 × 1.5V AA Alkaline; Receiver - 4 × 1.5V AA Alkaline
• Integral Lead Storage: No
• Pollution Degree: 2
• Control Type: Transmitter and Receiver
• Case Included: Yes
• Battery Life: Up to 24 hr
• Height: 4.0000 in
• Width: 12.7500 in
• Depth: 16.1200 in
• Weight: 6.2800 lbs
