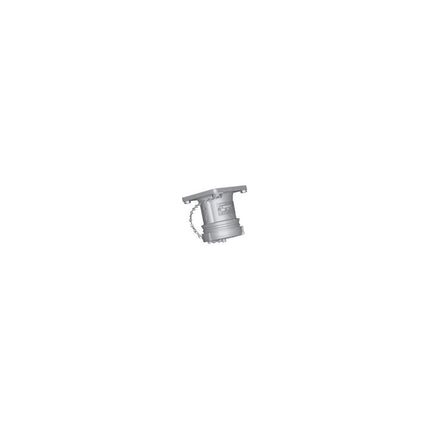

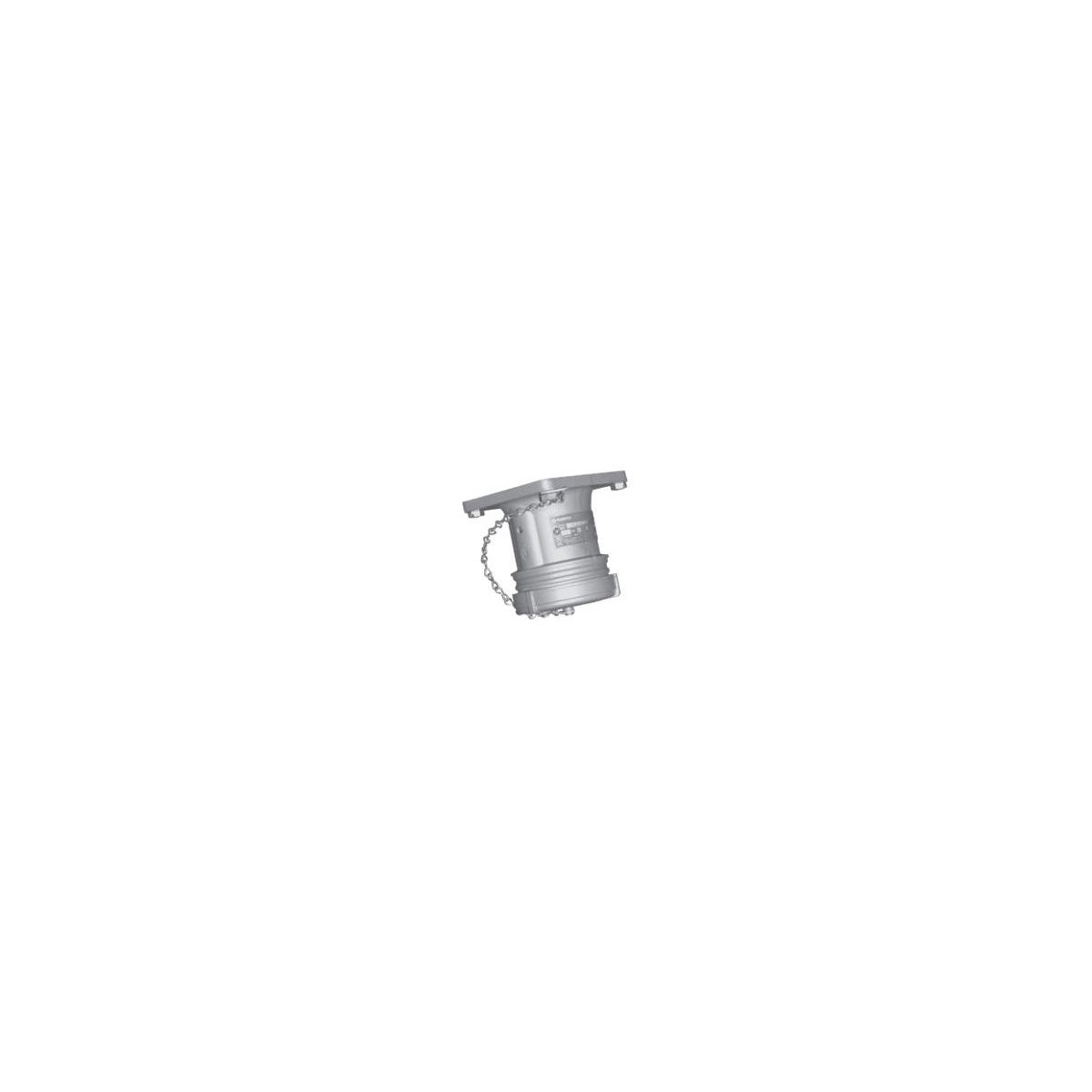

ADR6034, Pin and Sleeve Receptacle - Powertite‚Ñ¢ Series Electrical Connector

The ADR6034 Pin and Sleeve Receptacle from Appleton is a 60 ampere, 4-pole, 3-wire electrical connector designed for heavy-duty power distribution to portable or fixed equipment. Ideal for use by electrical distributors and switchgear suppliers, it supports applications such as motor generators, welders, pumps, compressors, and cellular relay stations. This receptacle features a robust pin and sleeve design with widely spaced contacts recessed within an arc snuffing chamber for enhanced safety and reliability, suitable for demanding environments requiring weatherproof and rugged electrical solutions.

Specifications

• Current: 60 amperes
• Number of Poles: 4
• Number of Wires: 3
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Product Weight: 2.94 lbs

Features

• Pin and sleeve design with solid brass pressure wire terminal contacts and beryllium copper springs
• Contacts recessed within an internal arc snuffing chamber to reduce arcing and enhance safety
• Neoprene sealing bushing resists water ingress and hydrocarbon deterioration, self-extinguishing
• Positive polarization ensures compatibility only with plugs of matching style, poles, and amperage
• Available in two grounding styles: shell only or shell plus extra pole grounding for safe "make first, break last" grounding
• Pressure wire terminals allow easy cable replacement with secure conductor grip
• Locking screw and slot prevent cable collar loosening
• Ambient temperature range: -25¬∞C to +40¬∞C (-13¬∞F to +104¬∞F)
• Insulating blocks provide high dielectric strength and mechanical durability with low arc tracking
• Suitable for emergency disconnect under load within specified horsepower ratings
• Compatible with Appleton explosionproof interlocking receptacles for classified locations
