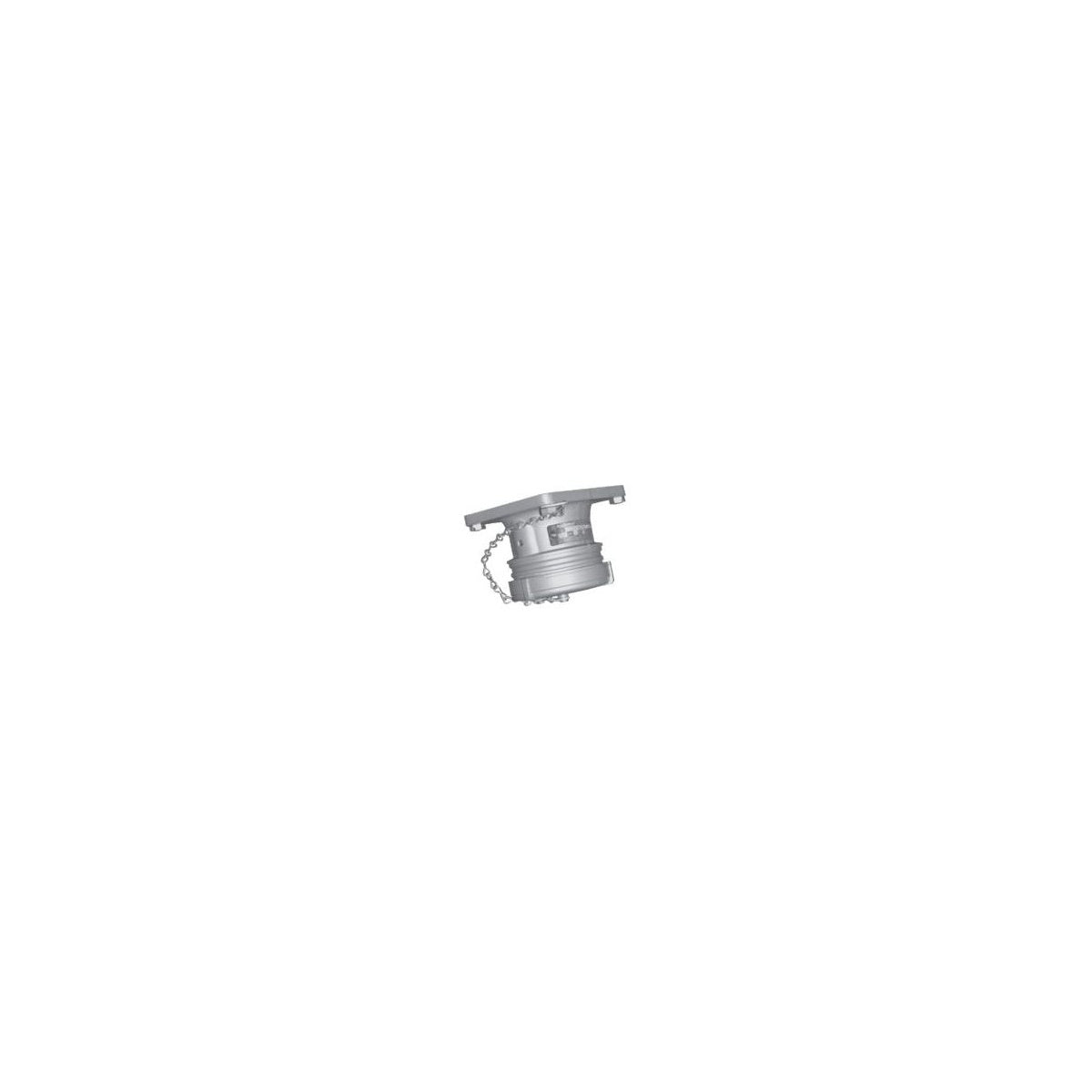

ADR3034, Pin and Sleeve Receptacle – Heavy Duty Electrical Connector

The ADR3034 Pin and Sleeve Receptacle from Appleton is part of the Powertite‚Ñ¢ Series, designed to provide safe, reliable power connections for heavy-duty equipment, whether fixed or portable. Ideal for industrial electrical distributors and switchgear suppliers, this device is suited for applications requiring robust and watertight connections, such as motor generator units, welders, pumps, and compressors. Its rugged construction and versatile pin and sleeve design ensure durability and safety in harsh environments, making it a key component in lighting solutions and wire and cable systems.

Specifications

• Current: 30 amperes
• Number of Poles: 4
• Number of Wires: 3
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Product Weight: 1.59 lbs

Features

• Versatile pin and sleeve design for secure power connections
• Widely spaced contacts recessed within an internal arc snuffing chamber to confine arcing
• Durable neoprene sealing bushing ensures watertight integrity
• Positive polarization to prevent mismatching of plugs
• Shell only or shell plus extra pole grounding options provide safe ‚Äúmake first, break last‚Äù grounding
• Epoxy powder coated, copper-free aluminum housing for ruggedness and corrosion resistance
• Designed for use with copper conductors only
• Complies with UL Standards 1682, 1686, 1010/1203 and CSA Specification C22.2 No. 182.1
• Suitable for use in locations requiring watertight enclosures (Type 3, 4, 4X)
• Self-aligning floating plug and receptacle contacts for easy mating
• Clamping ring with neoprene gasket for watertight union
• Positive cable clamp with reversible design to accommodate a wide range of cable diameters
