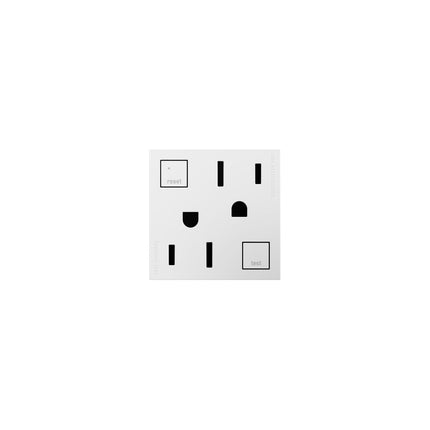

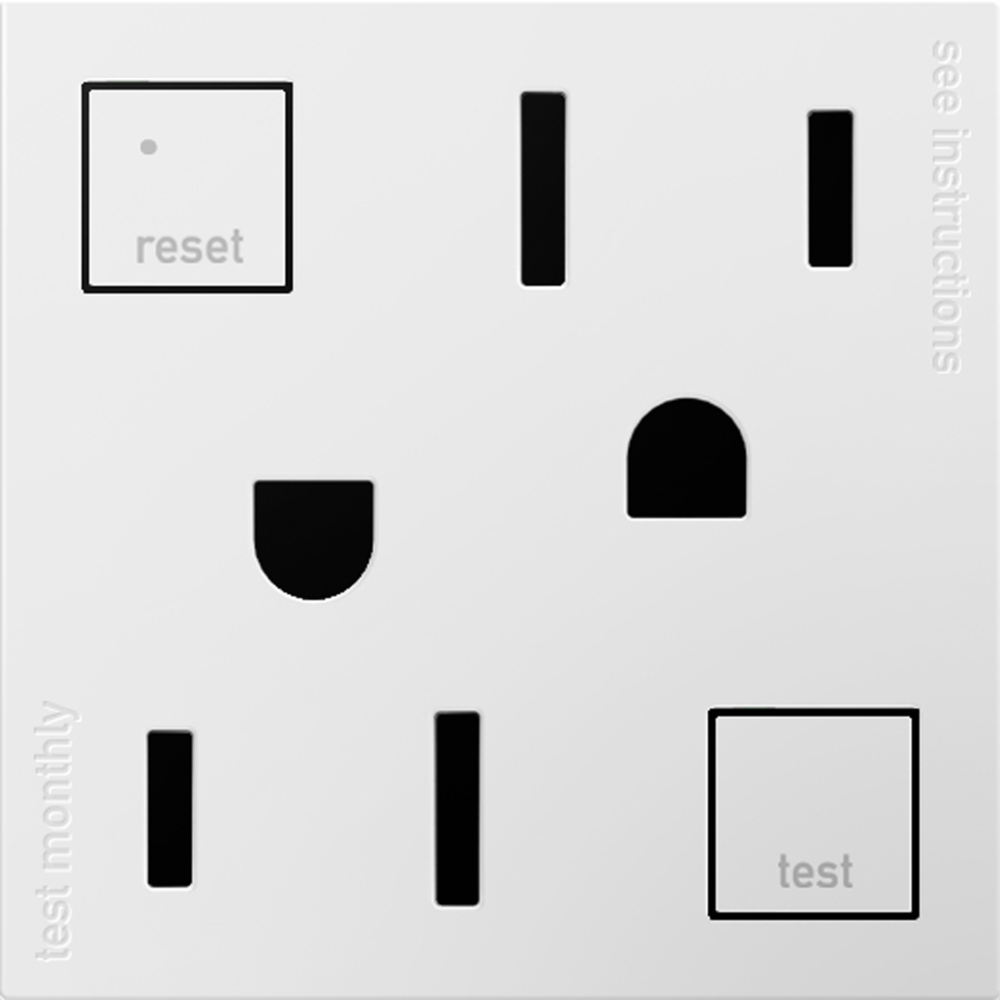

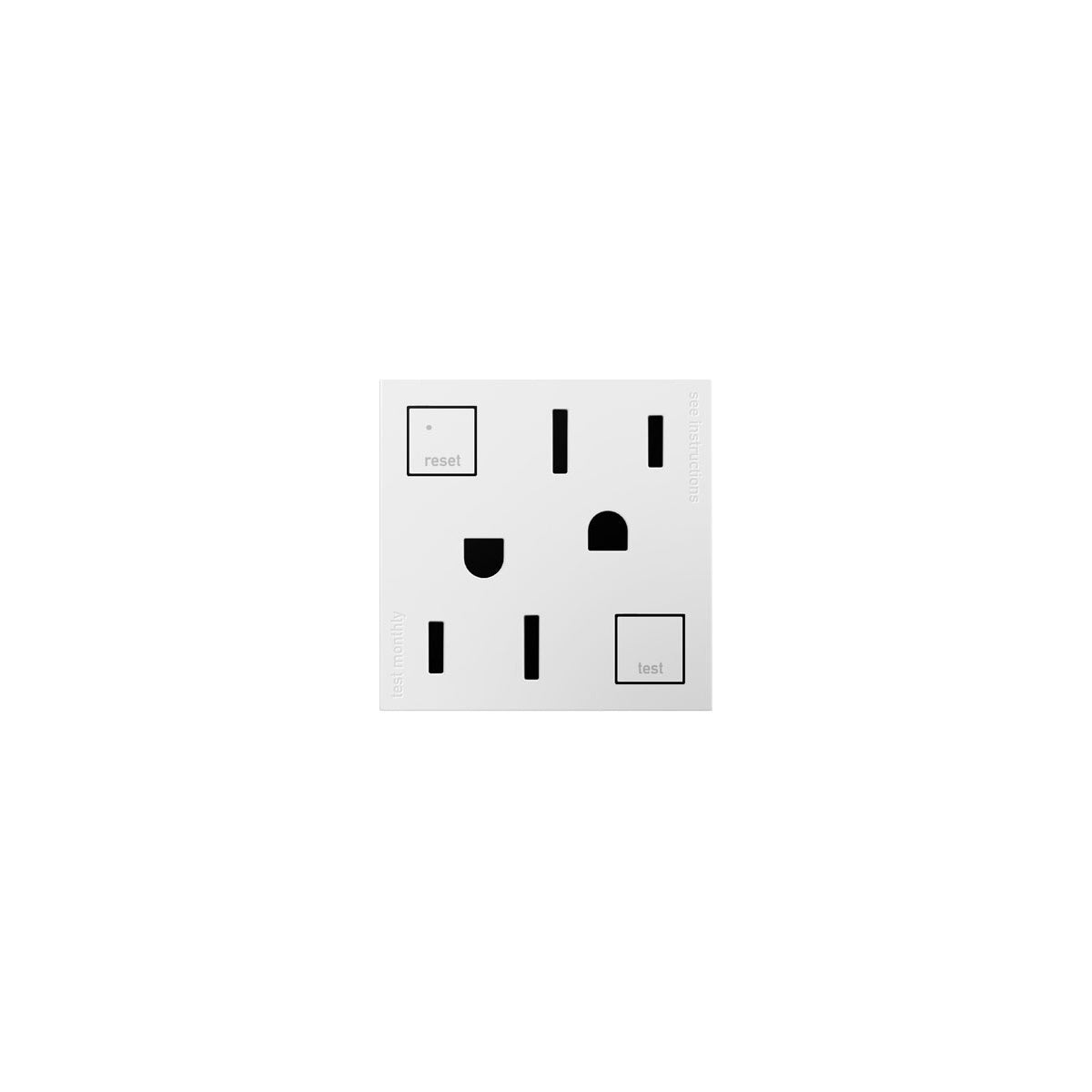

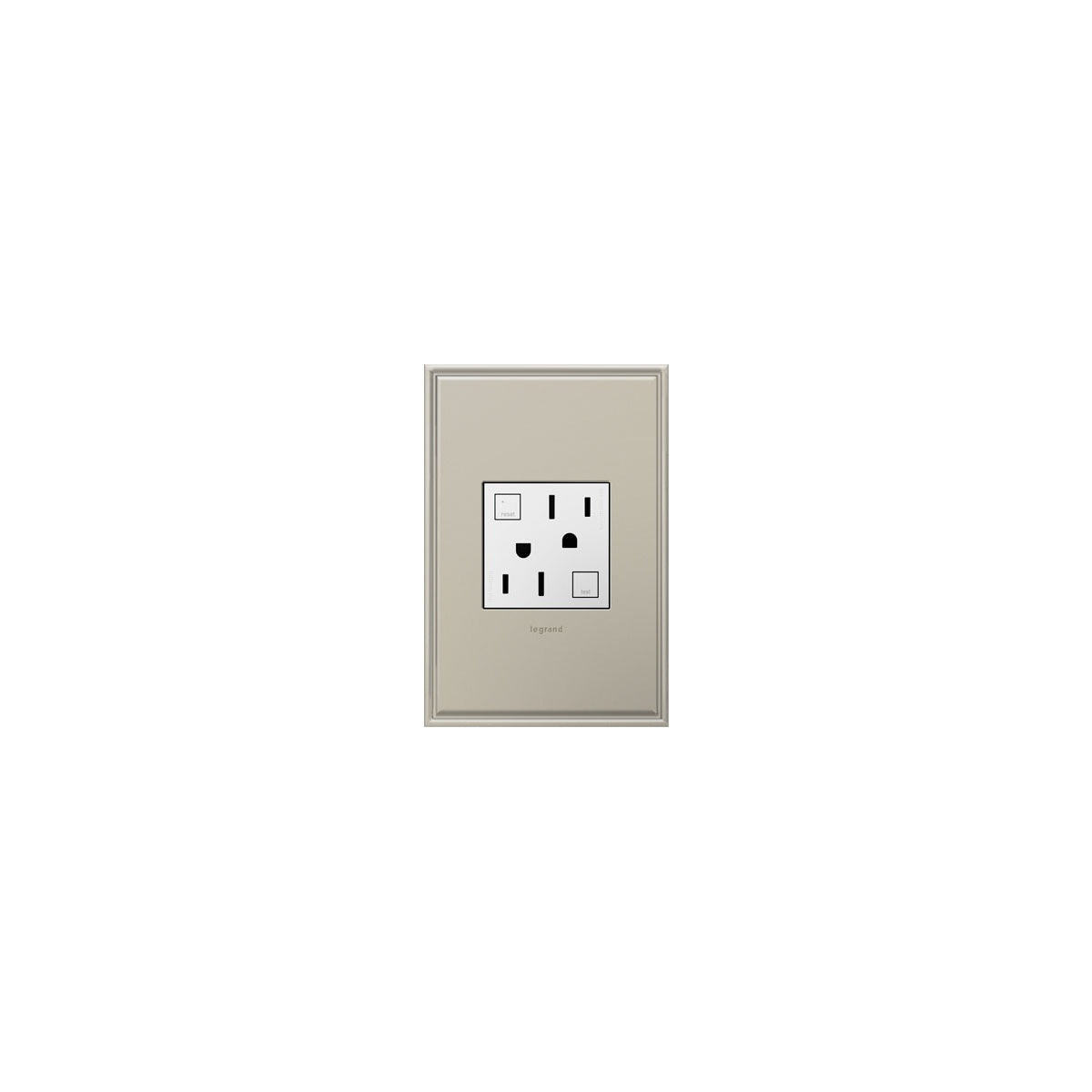

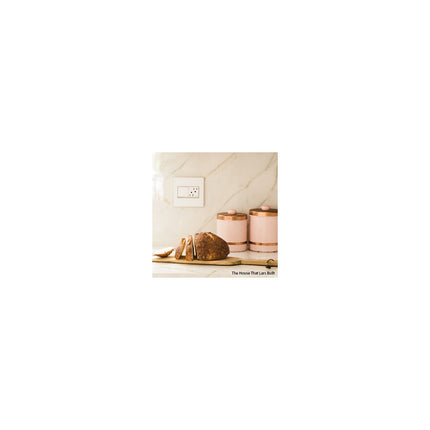

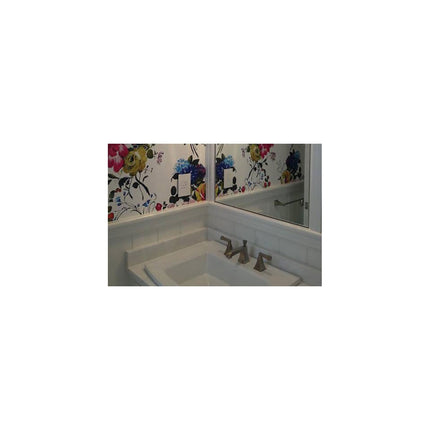

adorne® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles, White - Ground Fault Circuit Interrupter Outlet

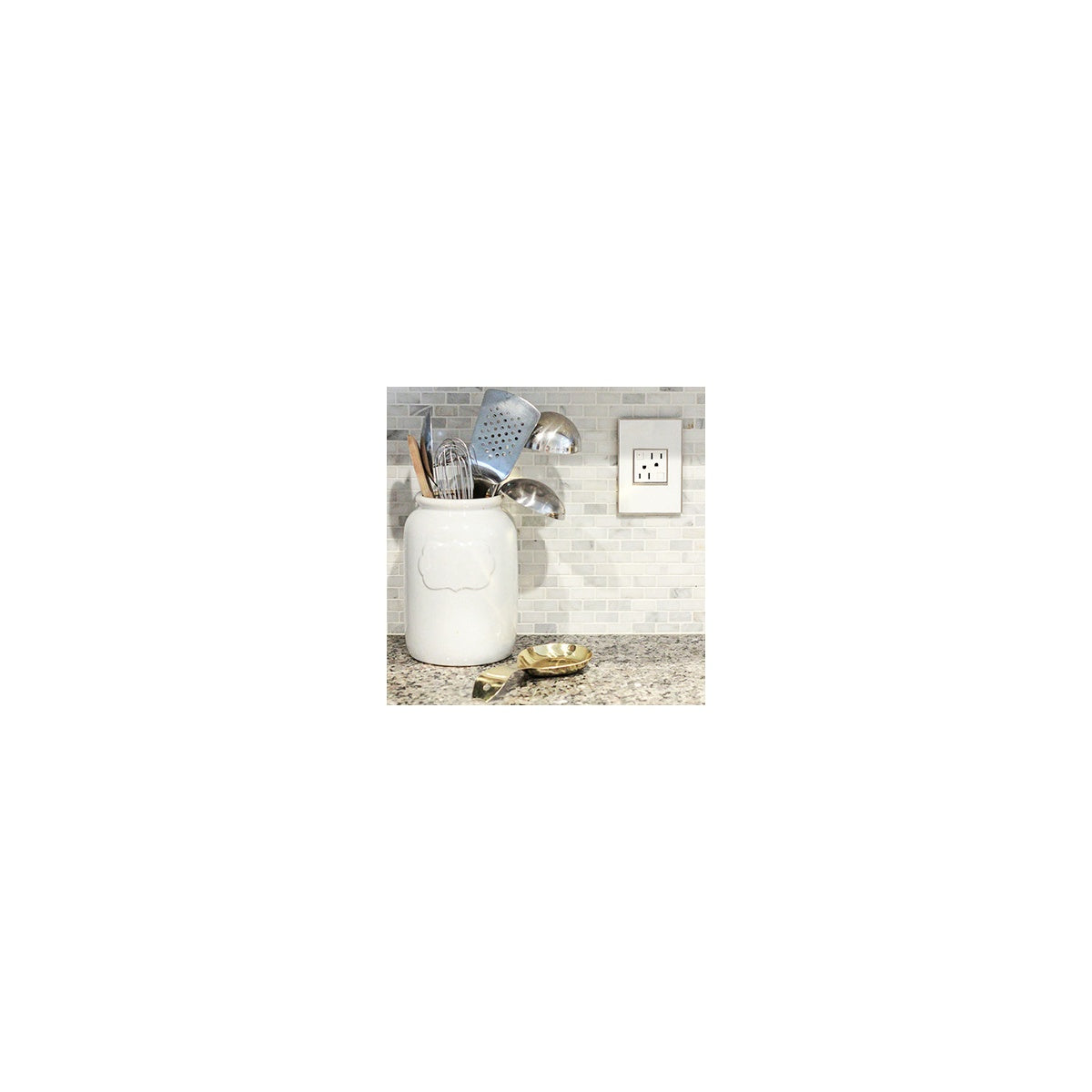

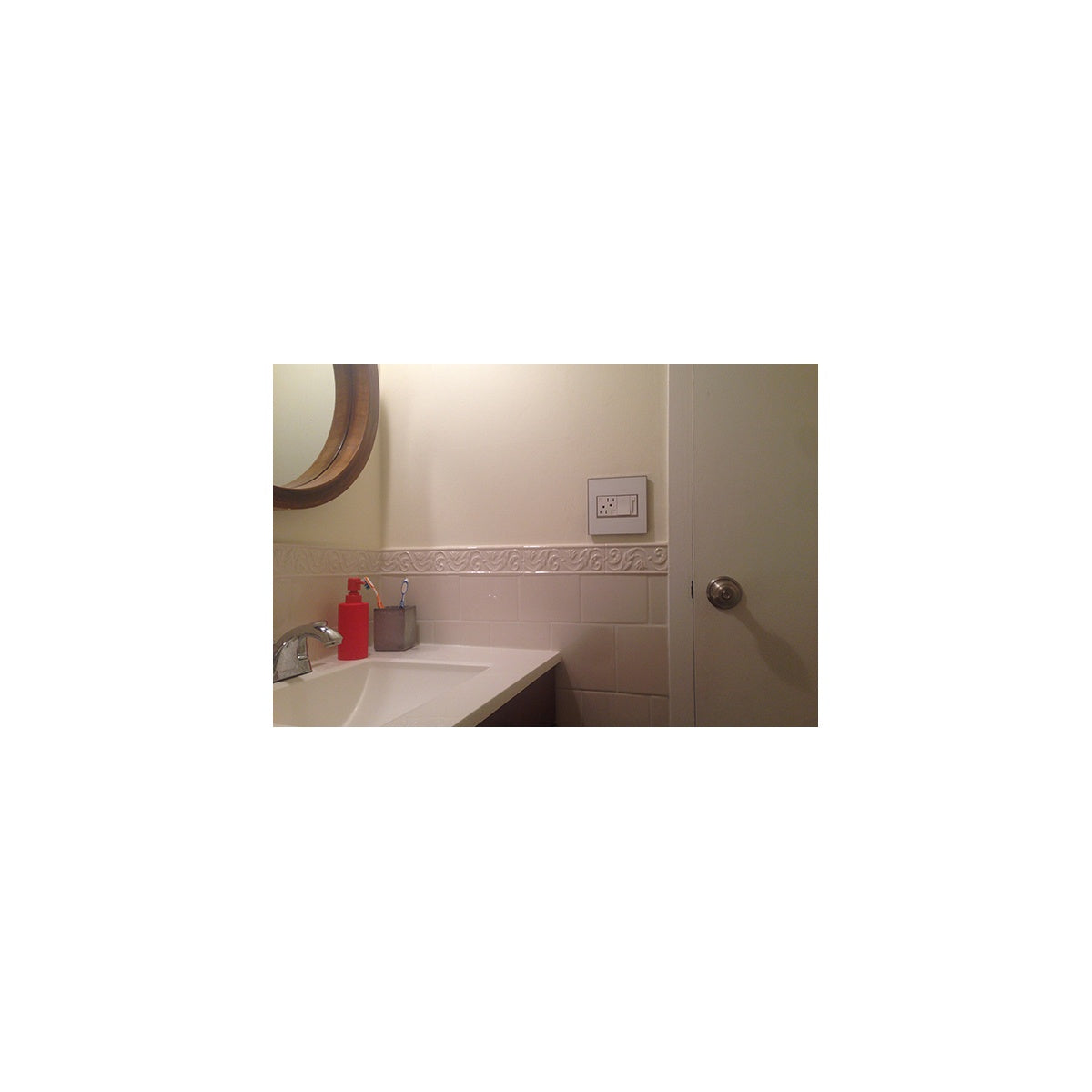

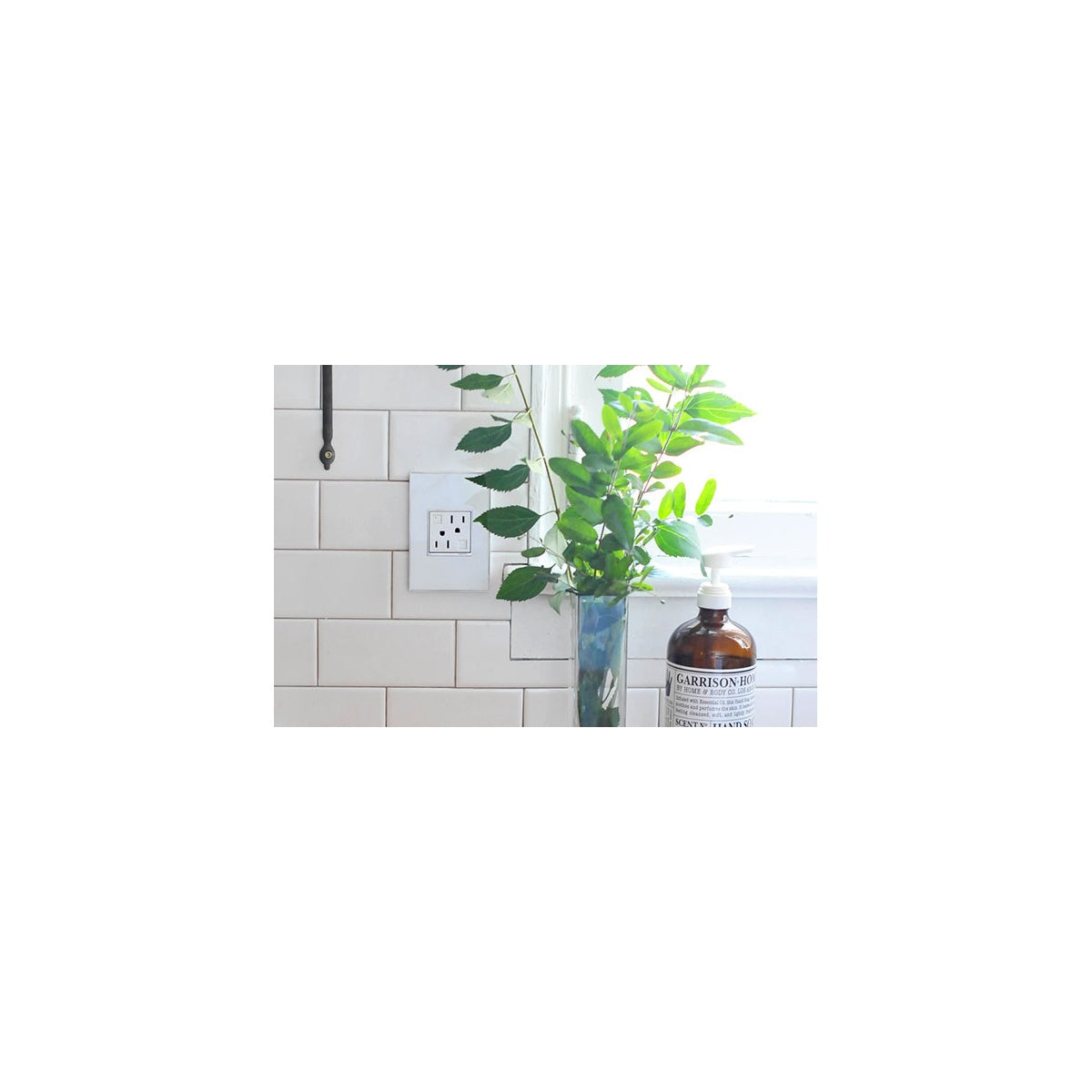

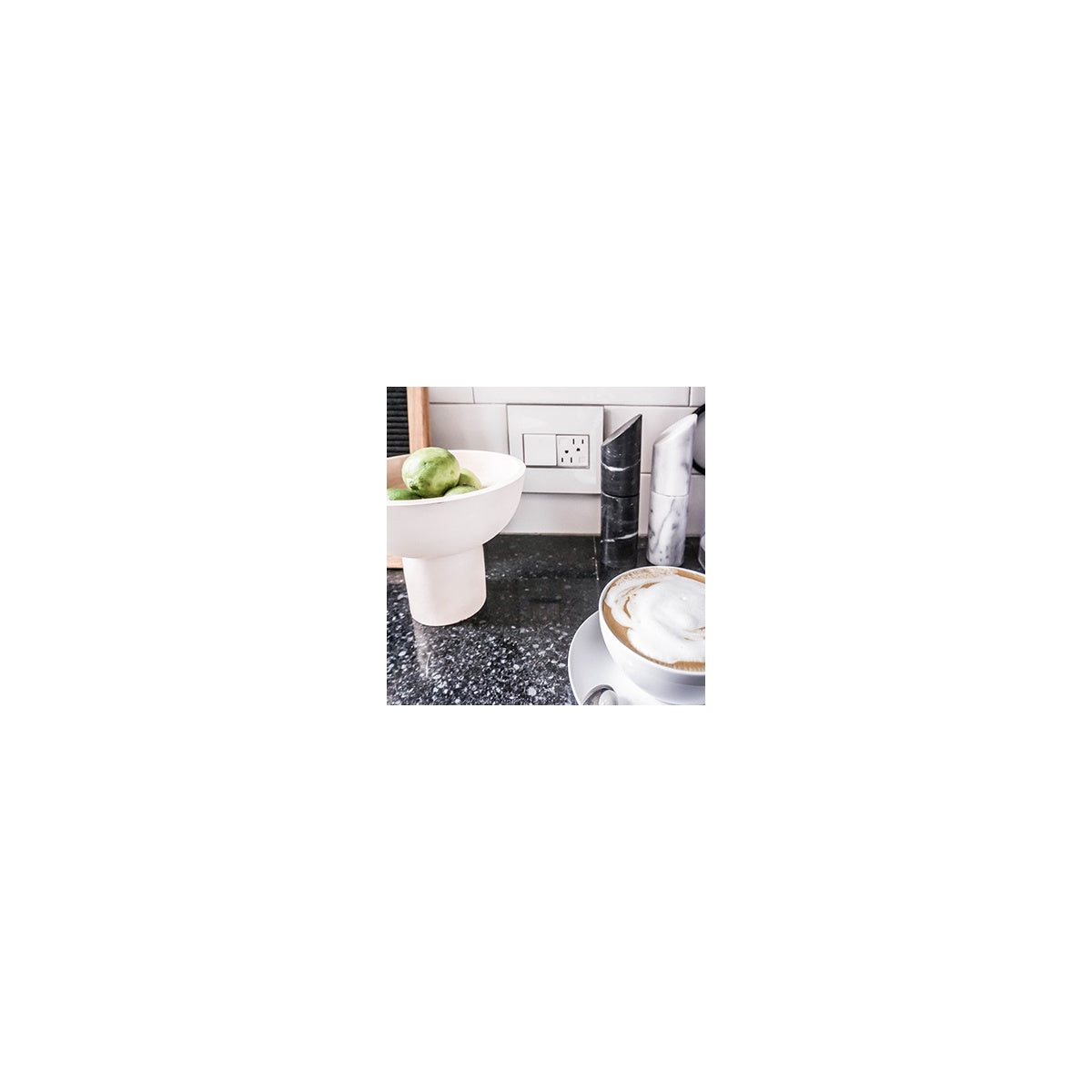

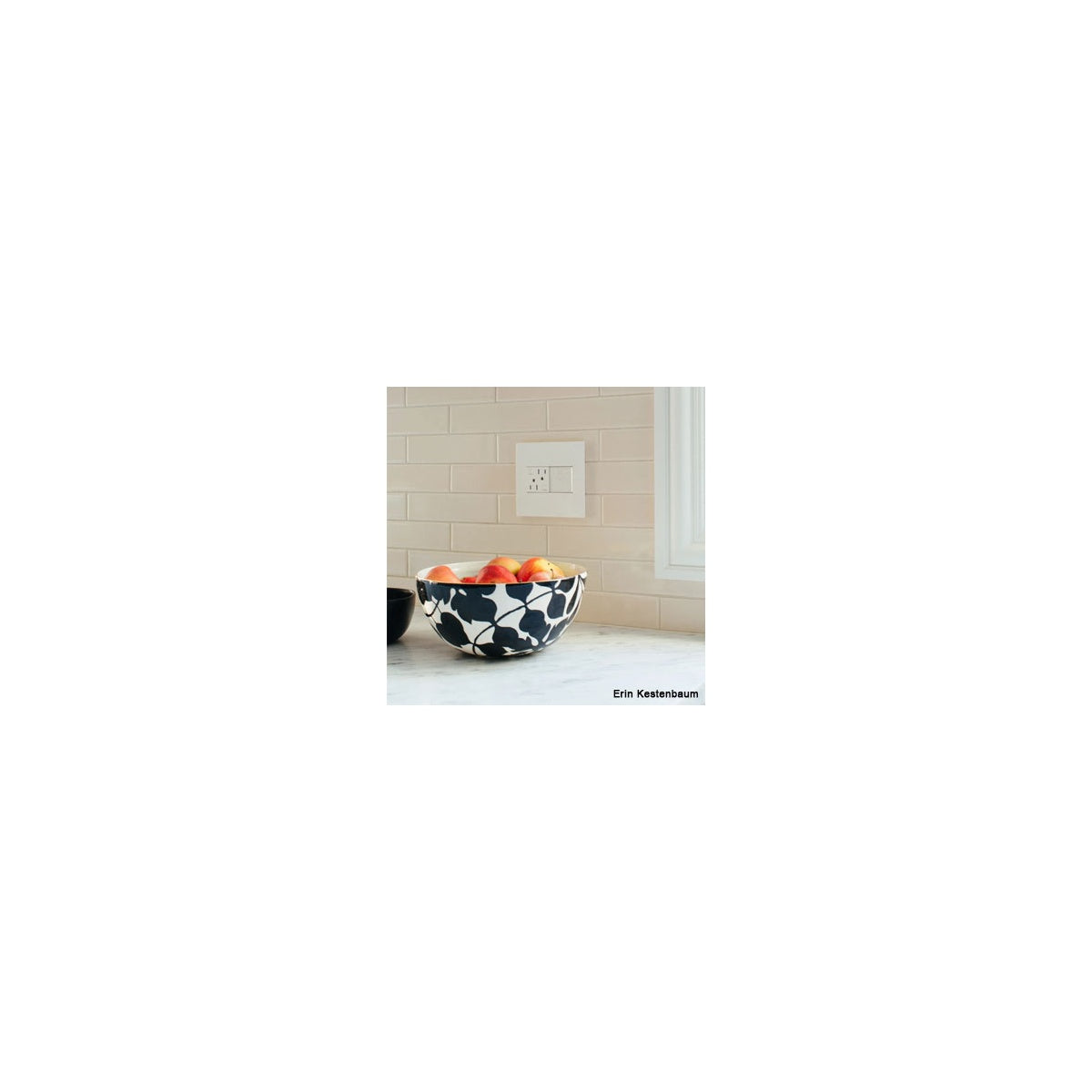

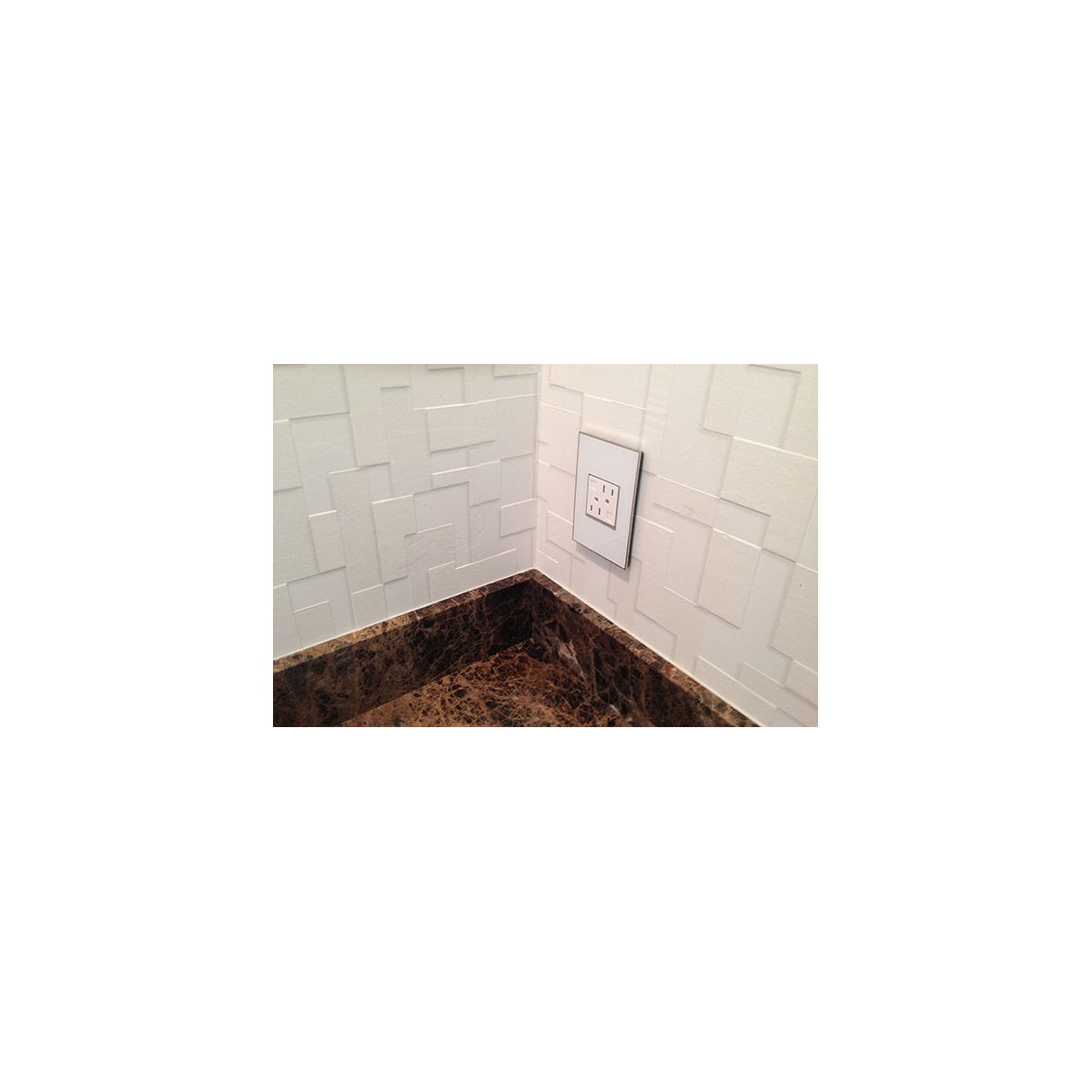

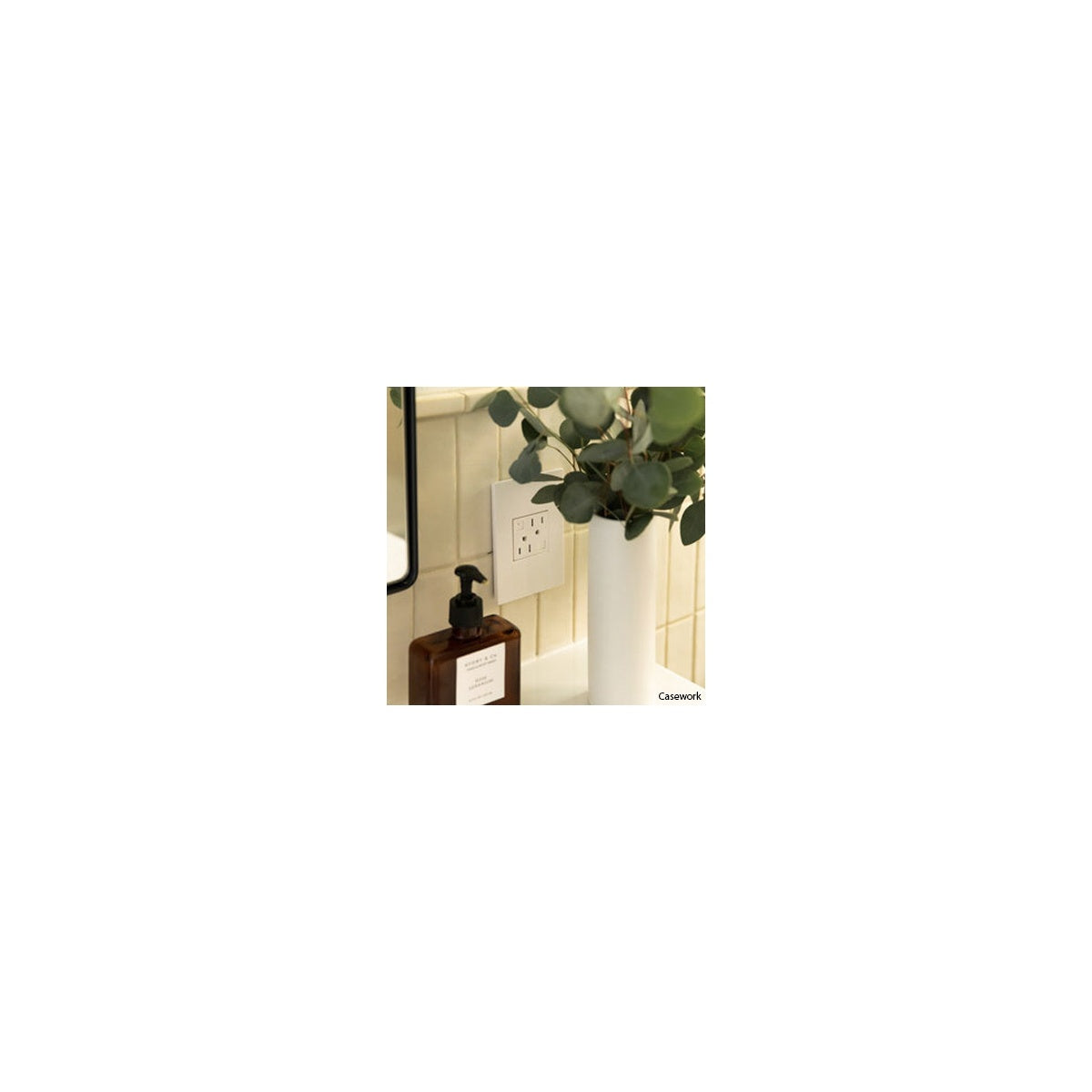

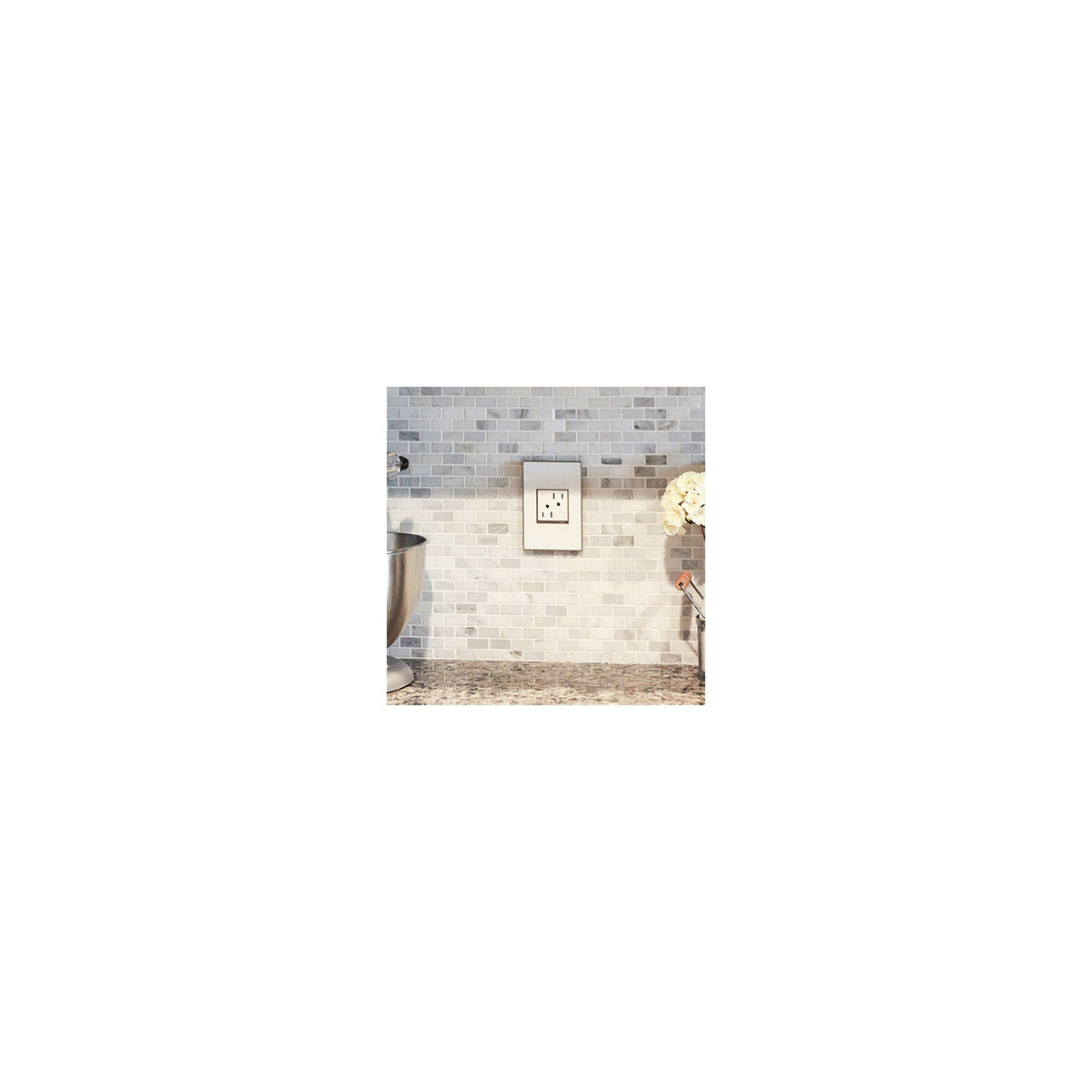

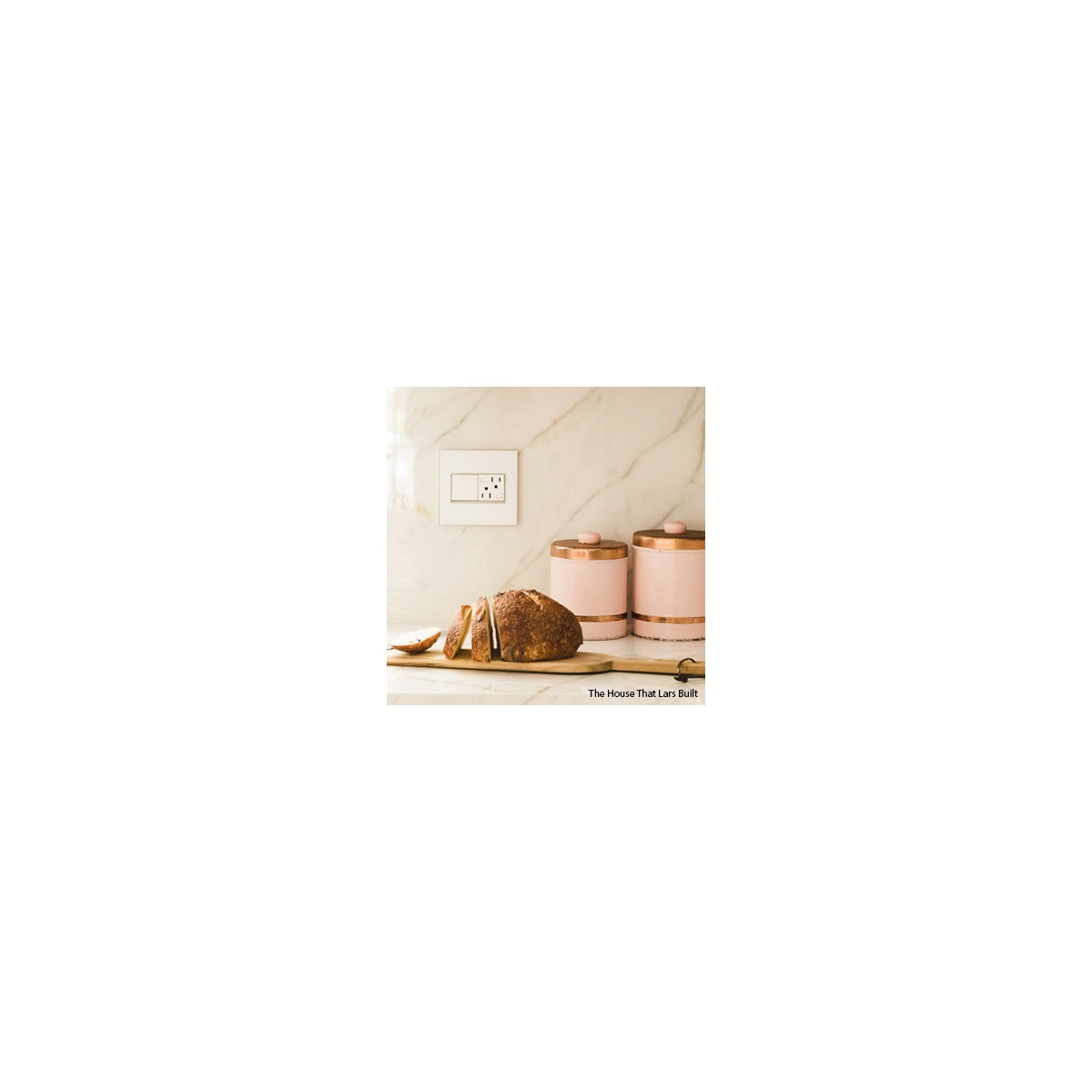

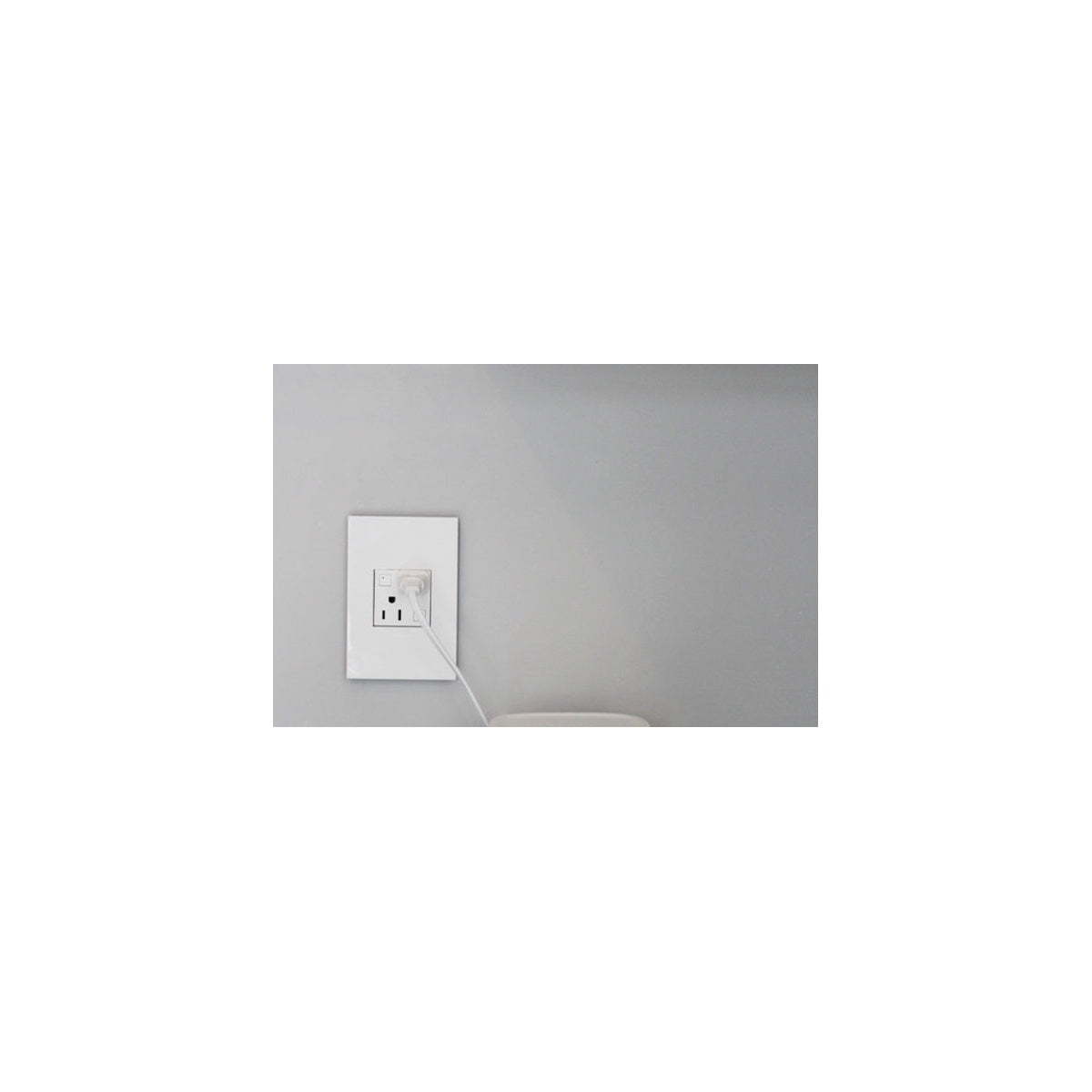

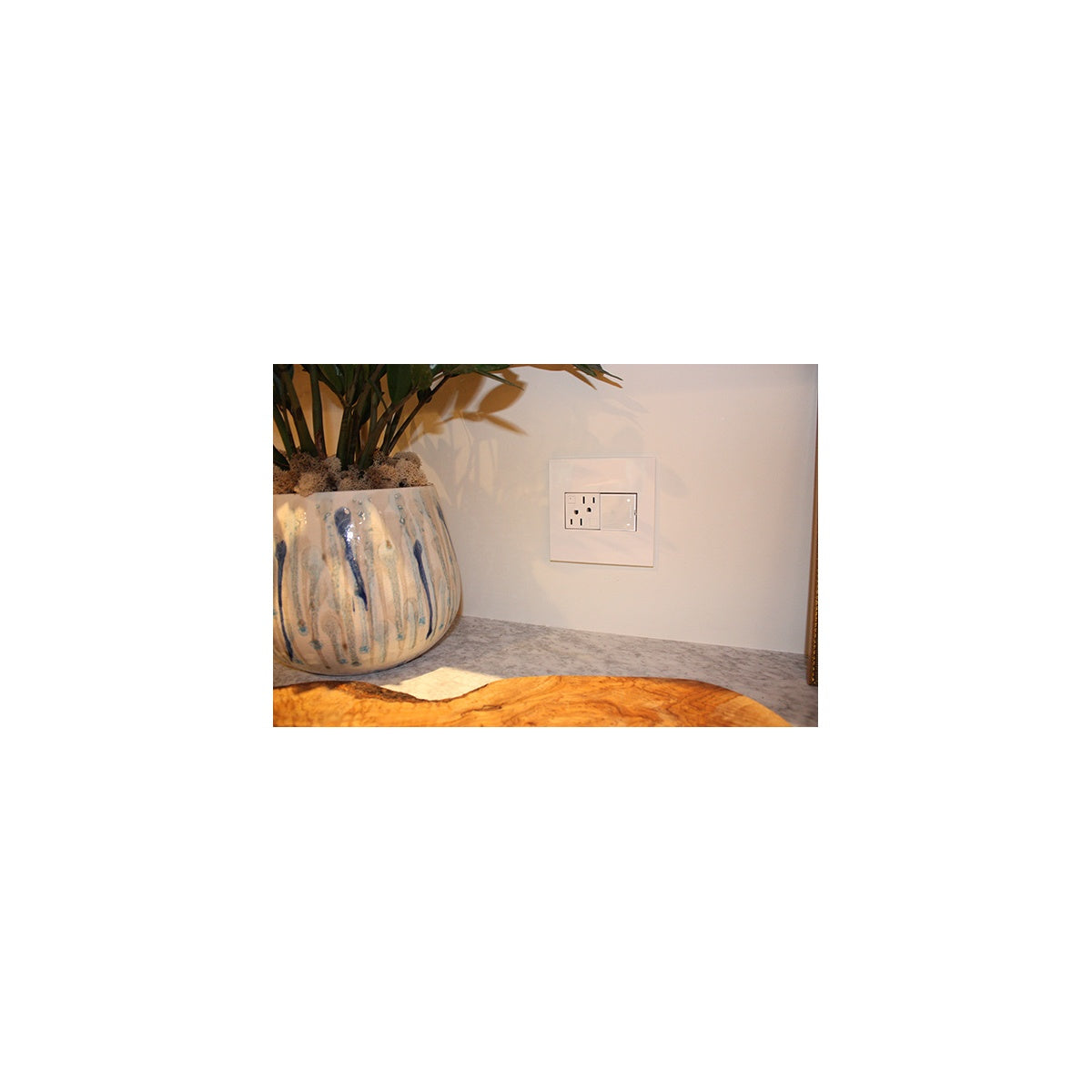

The adorne® Tamper-Resistant 15A Duplex Self-Test GFCI Receptacle provides ground fault protection for residential outlets, ideal for kitchens, bathrooms, garages, basements, and outdoor areas. This GFCI outlet meets electrical code requirements for ground fault protection by quickly interrupting power to prevent shock hazards. It features automatic self-testing every three seconds to ensure reliable operation and SafeLock™ Protection to disconnect power if critical components fail. Designed for use with screwless adorne® wall plates, it combines contemporary style with advanced safety for residential electrical distributors and lighting solutions.

Specifications

• Amperage Rating: 15A
• Voltage Rating: 125VAC
• Frequency Rating: 60Hz
• NEMA Rating: 15A, GFCI
• Interrupt Rating: 0.025 Second Nominal
• Connection Type: Internal Pressure Plates
• Connection: Side & Back Wire
• Number of Poles: Double Pole
• Material: Polycarbonate
• Finish: Matte
• Color: White
• Dimensions: Height 2.66 in, Width 1.77 in, Depth 1.77 in, Length 1.82 in
• Product Weight: 0.29 lbs
• Environmental Conditions: 95% relative humidity, non-condensing
• Country of Origin: China
• Manufacturer Part #: AGFTR2152W4
• Compliance: cULus Listed, UL498, UL943 GFCI standards

Features

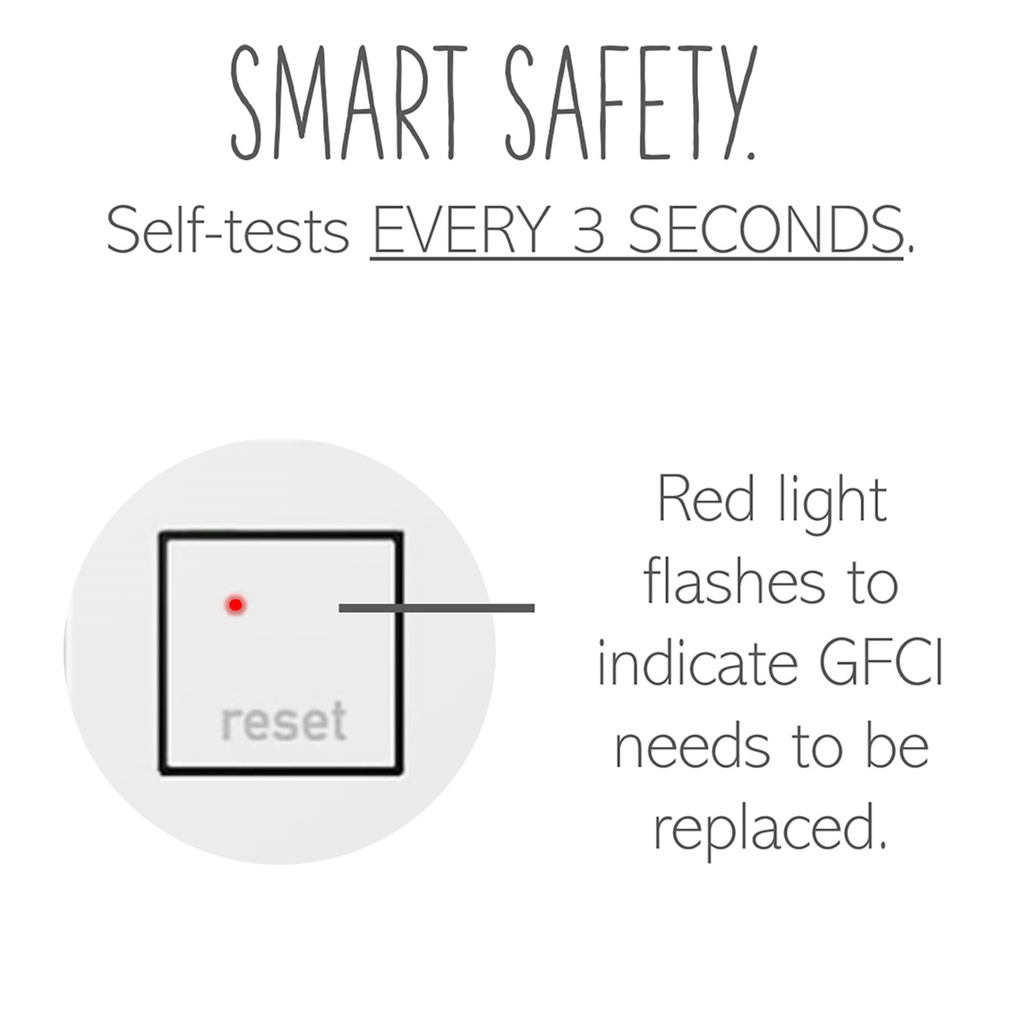

• Self-Test GFCI receptacle with SafeLock‚Ñ¢ Protection automatically tests every three seconds
• Indicator light flashes to signal replacement when protection is lost

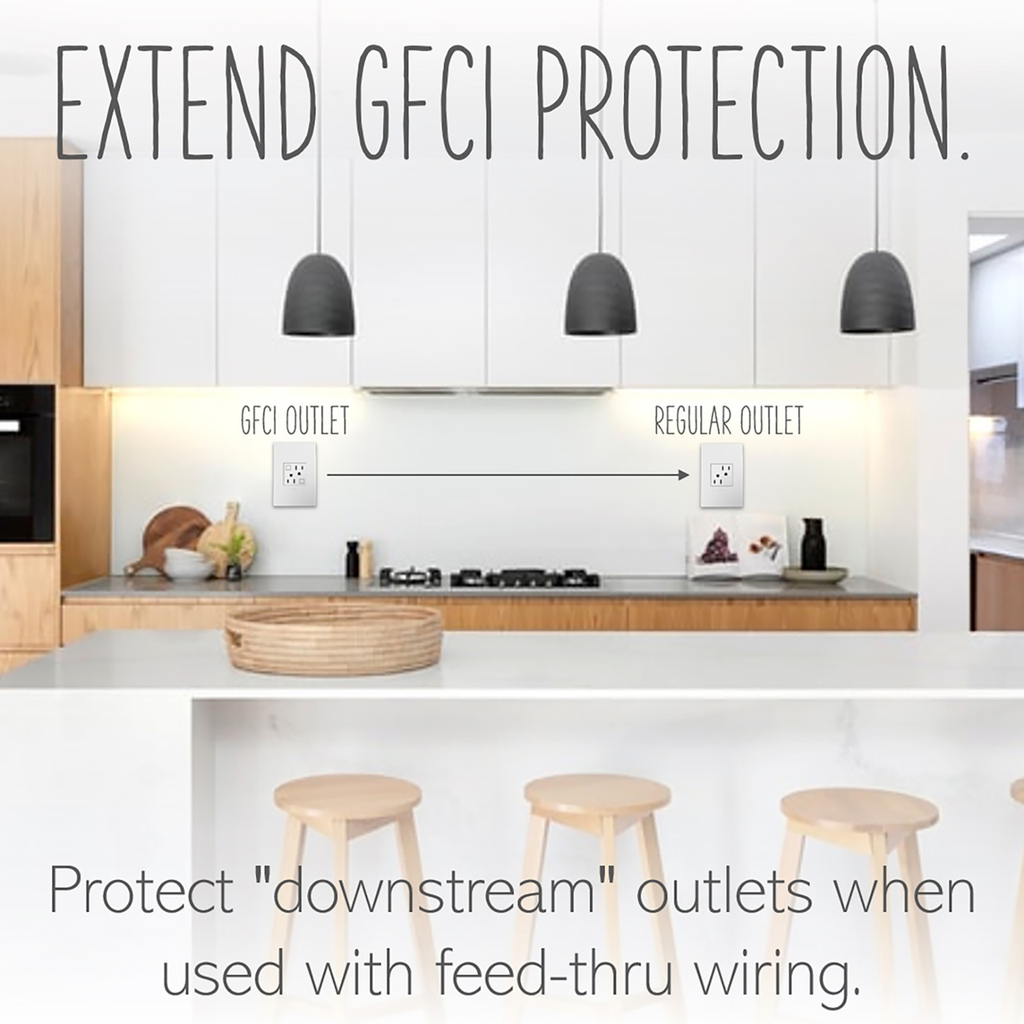

• Disconnects power to receptacle and downstream outlets if critical components fail
• Tamper-resistant design enhances child safety
• Fits in all existing NEMA-approved wall boxes
• Heavy gauge steel frame grounded via factory-installed 12AWG ground lead
• Device snaps into frame and self-aligns without screws; wall plate snaps on without screws
• Compatible exclusively with screwless adorne¬Æ wall plates (sold separately)
• Backwire terminal screws recessed into back of body for secure connections
• Suitable for copper or copper-clad wire; not for aluminum wiring
