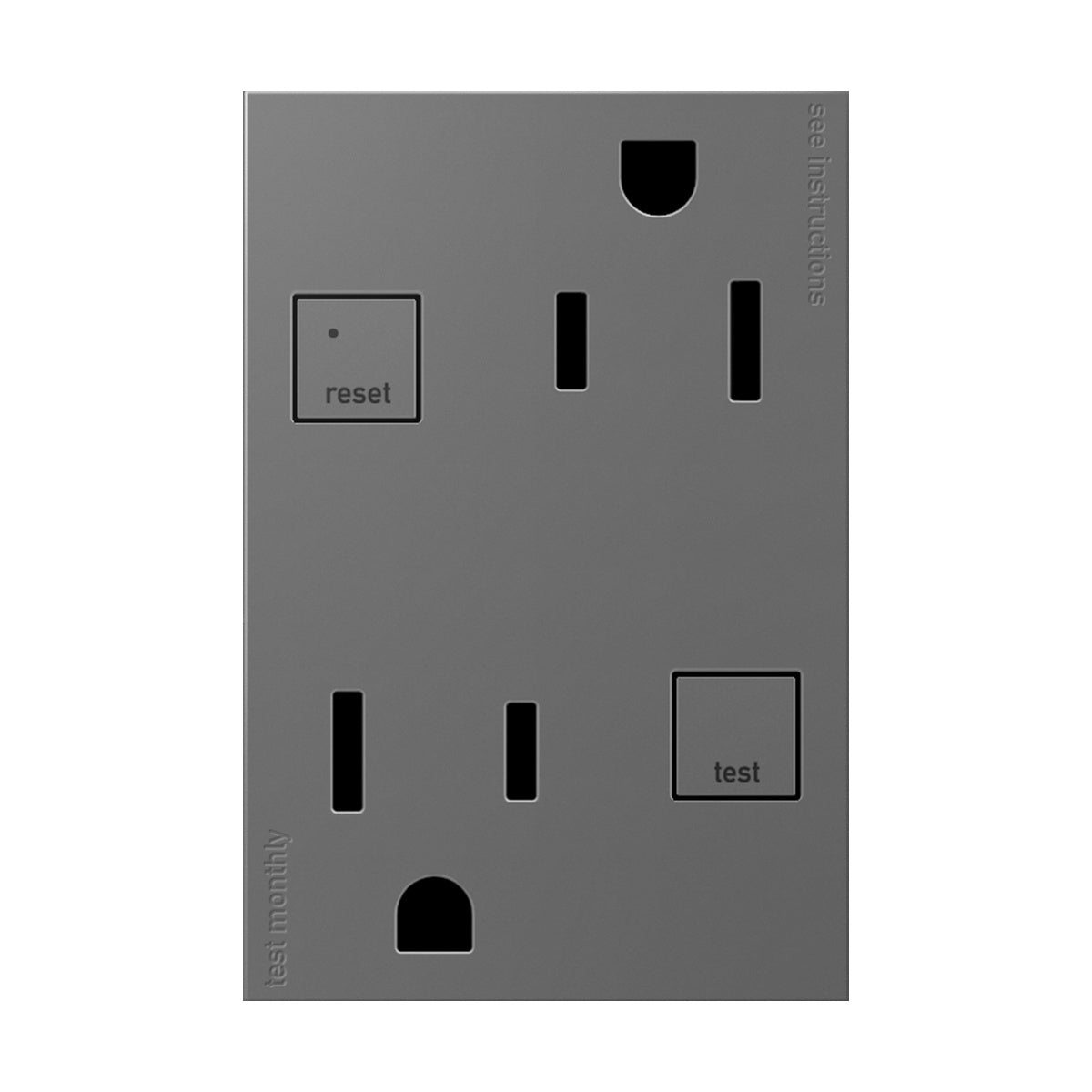

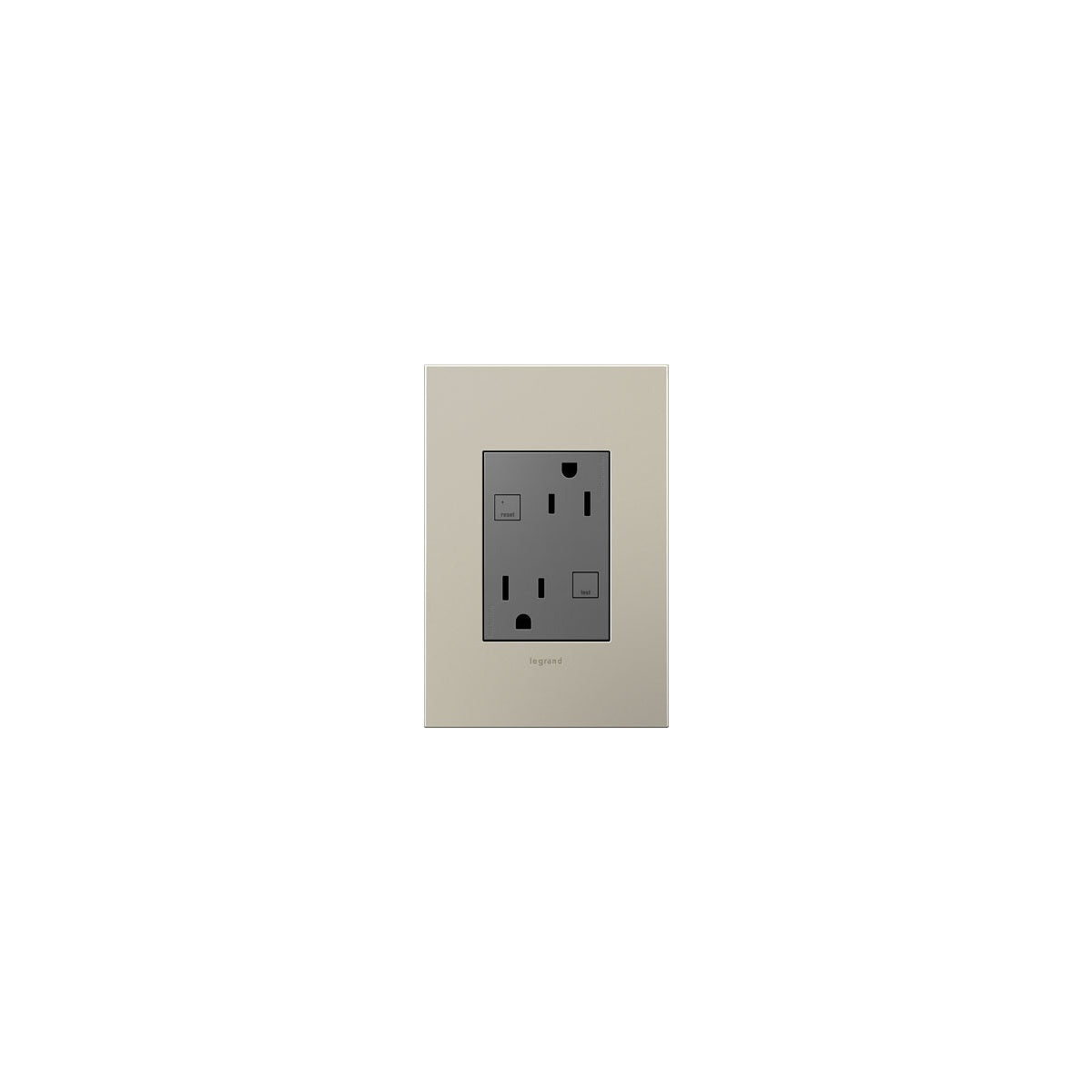

adorne® Plus Size Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles, Magnesium - GFCI Outlet

The adorne® Plus Size Tamper-Resistant 15A Duplex Self-Test GFCI Receptacle provides ground fault protection designed for residential outlet applications. This GFCI outlet enhances electrical safety by automatically tripping in the event of a ground fault, preventing shock hazards. It is suitable for use in kitchens, bathrooms, garages, basements, outdoor areas, and any location within six feet of a water source, complying with electrical code requirements. The device features self-testing every three seconds to ensure reliable protection and is compatible exclusively with screwless Wall Plates from the adorne® Collection.

Specifications

• Amperage Rating: 15A
• Frequency Rating: 60Hz
• Interrupt Rating: 0.025 Second Nominal
• NEMA Rating: GFCI, 15A
• Number of Poles: Double Pole
• Connection: Side & Back Wire
• Connection Type: Internal Pressure Plates
• Material: Polycarbonate
• Color: Magnesium
• Finish: Frosted
• Dimensions (H x W x D): 3 in x 1.76 in x 1.76 in
• Product Weight: 0.3 lbs
• Environmental Conditions: 95% relative humidity, non-condensing
• Country of Origin: China
• Manufacturer: adorne
• Manufacturer Part #: AGFTR2153M4
• Application: Residential Outlet

Features

• Self-test function automatically tests every three seconds to ensure continuous ground fault protection.
• Meets electrical code requirements for ground fault protection in residential settings.
• Tamper-resistant design enhances safety by preventing foreign object insertion.
• Compatible exclusively with adorne¬Æ screwless wall plates for a seamless, contemporary style.
• Dual wiring options with side and back wire connections for flexible installation.
• Double pole design for enhanced protection and reliability.
• Quick trip response time of 0.025 seconds to minimize shock risk.
• Suitable for use with copper or copper-clad wire; not for aluminum wiring.
