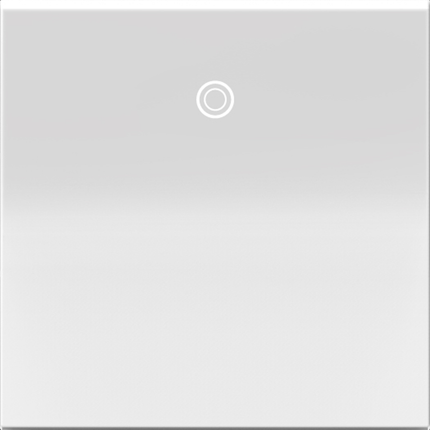

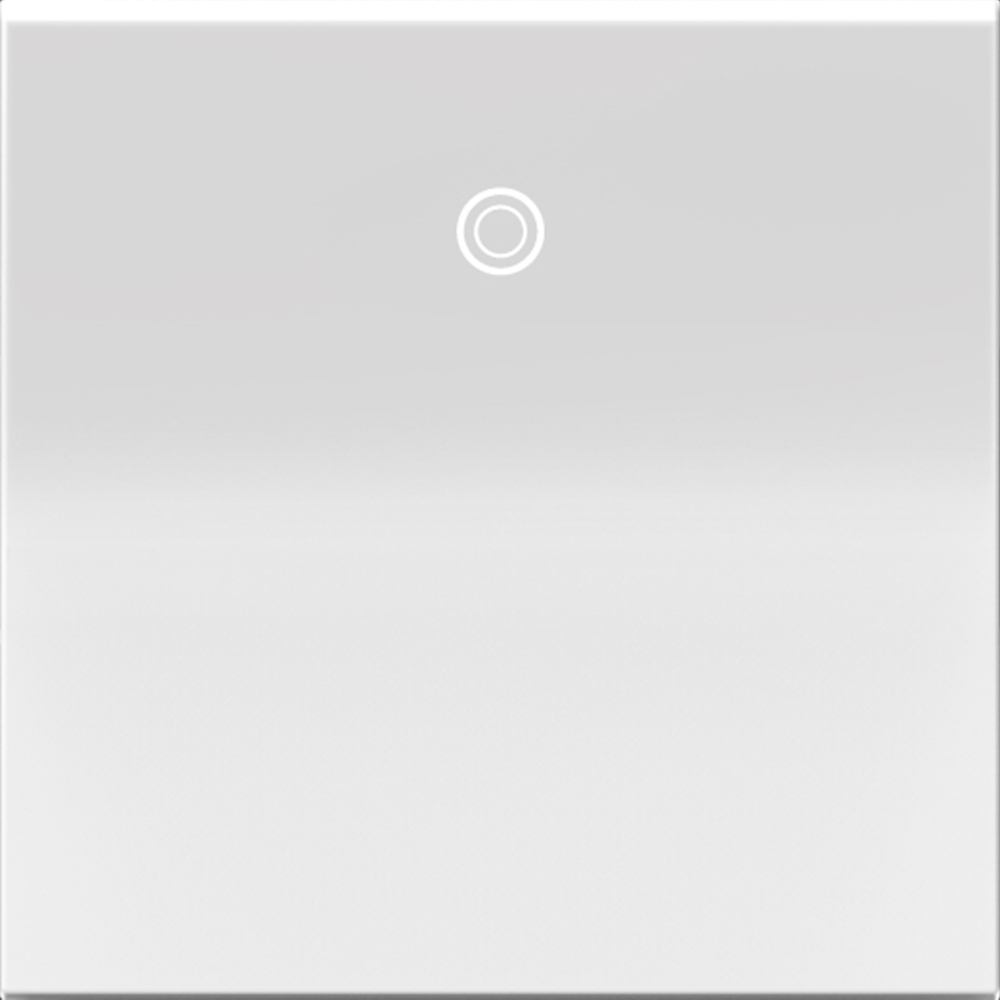

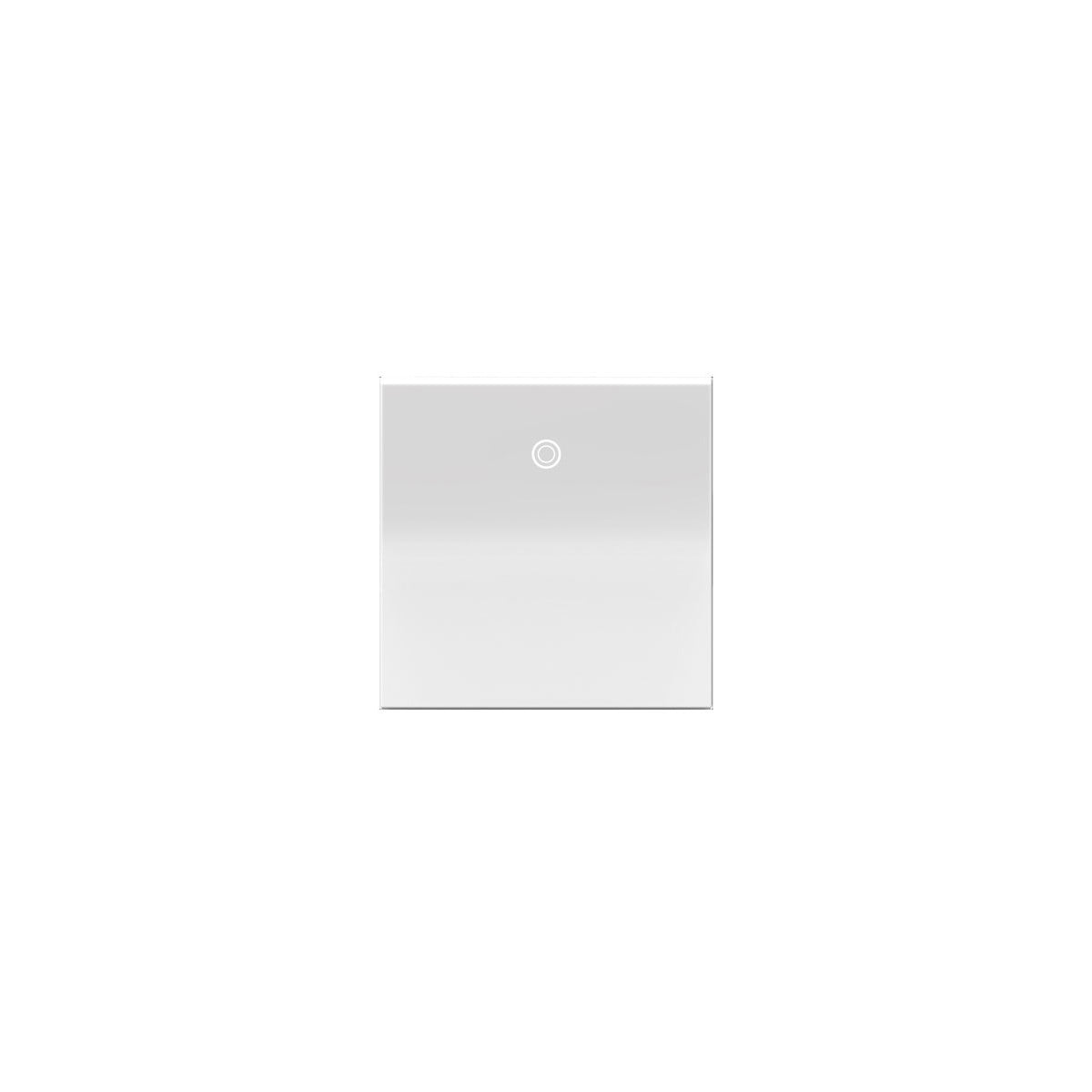

adorne® 15A Paddle Switch, White, with Microban® - Electrical Paddle Switch

The adorne® 15A Paddle Switch is designed for easy on/off lighting control with a modern paddle actuator, suitable for single-location or 3-way installations. This switch incorporates Microban® antimicrobial technology to inhibit bacterial growth on its surface throughout the product lifespan, enhancing hygiene in residential, hospitality, luxury office, and light commercial applications. It is compatible exclusively with screwless wall plates from the adorne® Collection, providing a sleek, contemporary lighting solution for electrical distributors and switchgear suppliers.

Specifications

• Amperage Rating: 15A
• Voltage: 120VAC
• Number of Poles: Single Pole, 3-Way
• Material: Polycarbonate
• Actuator: Paddle Switch
• Mounting: Box Mount
• Connection: Screw Terminals
• Dimensions (W x H x D): 1.77 in x 1.77 in x 1.5 in
• Weight: 0.15 lbs
• Country of Origin: China
• Third-Party Compliance: cULus Listed
• Termination: Back Wire Only
• Terminal Accommodations: #14 AWG - #12 AWG Copper Wire
• Dielectric Voltage Withstand: 1500V minimum
• Endurance: 30,000 cycles (10,000 resistive, 10,000 inductive, 10,000 tungsten filament load)
• Flammability Rating: UL94 V2

Features

• Microban¬Æ antimicrobial protection reduces bacterial growth on switch surface

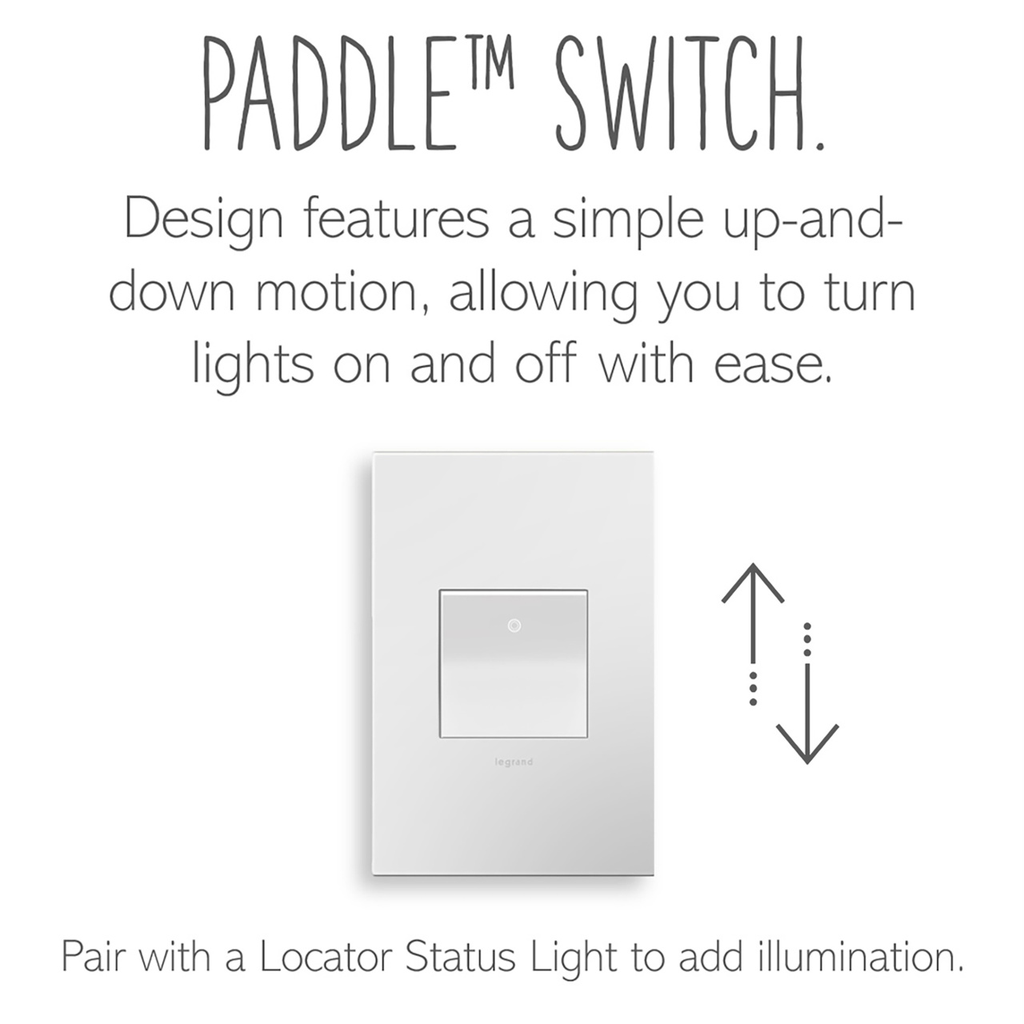

• Wide paddle actuator enables simple up and down motion for light control
• Compatible with adorne¬Æ screwless wall plates for seamless installation
• Heavy gauge steel frame with factory-installed 12AWG ground lead for grounding
• Device snaps into frame and self-aligns without screws; wall plate snaps on without screws
• Backwire terminal screws recessed into body for secure wiring
• Accepts locator status light accessory for easy switch location in low light
• Designed for use in standard NEMA-approved wall boxes
• Limited lifetime warranty ensures long-term reliability
