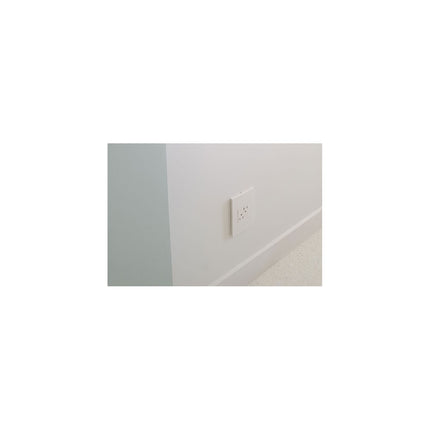

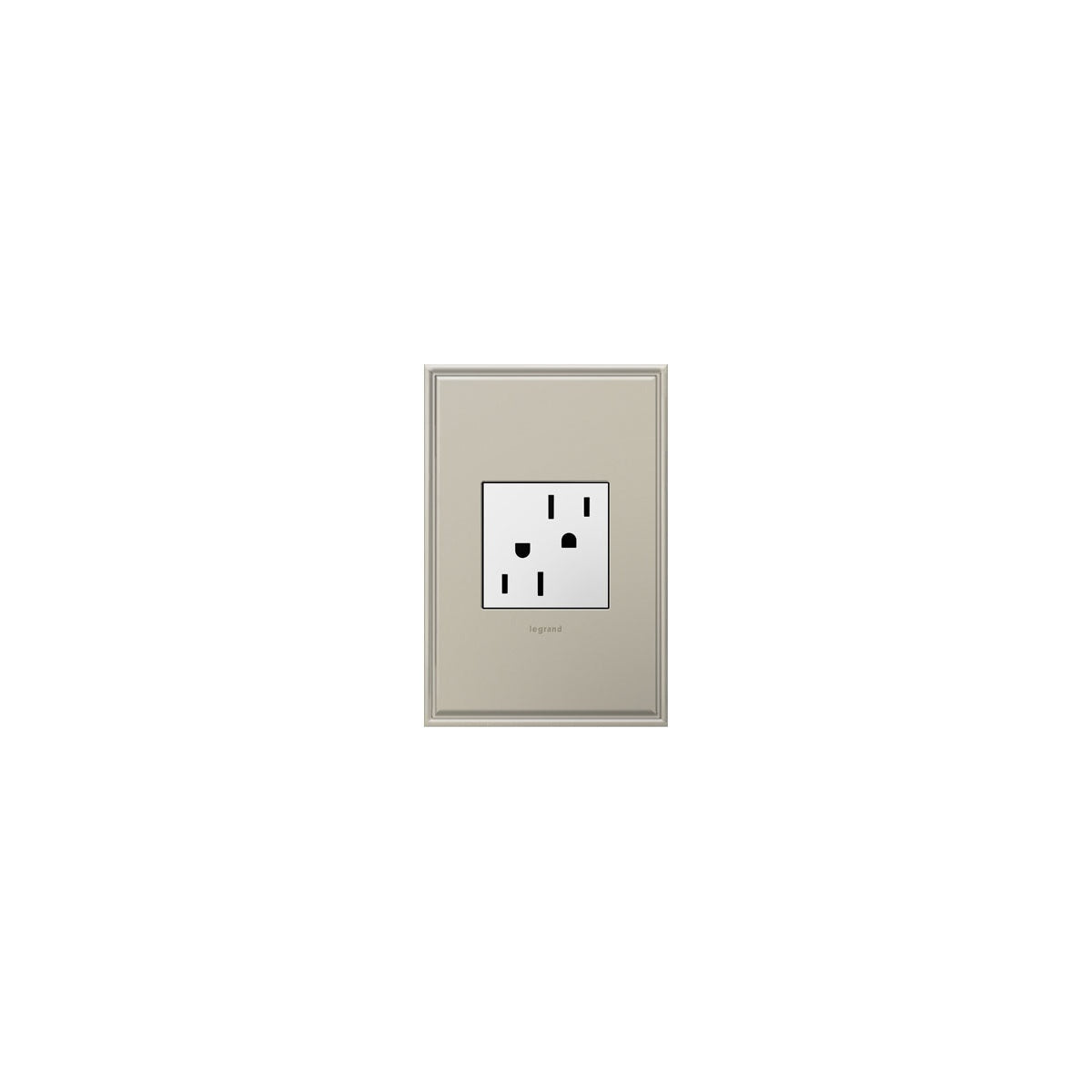

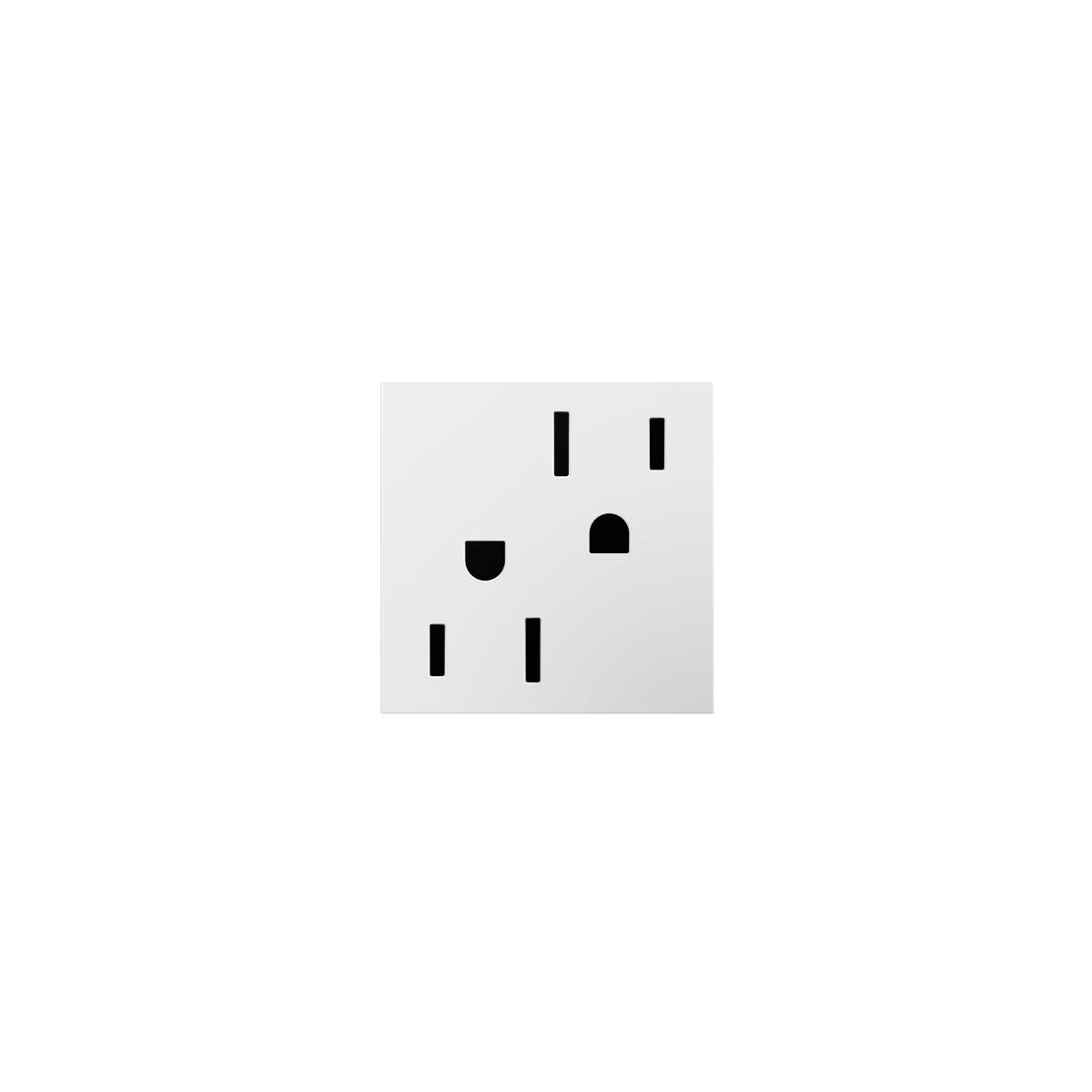

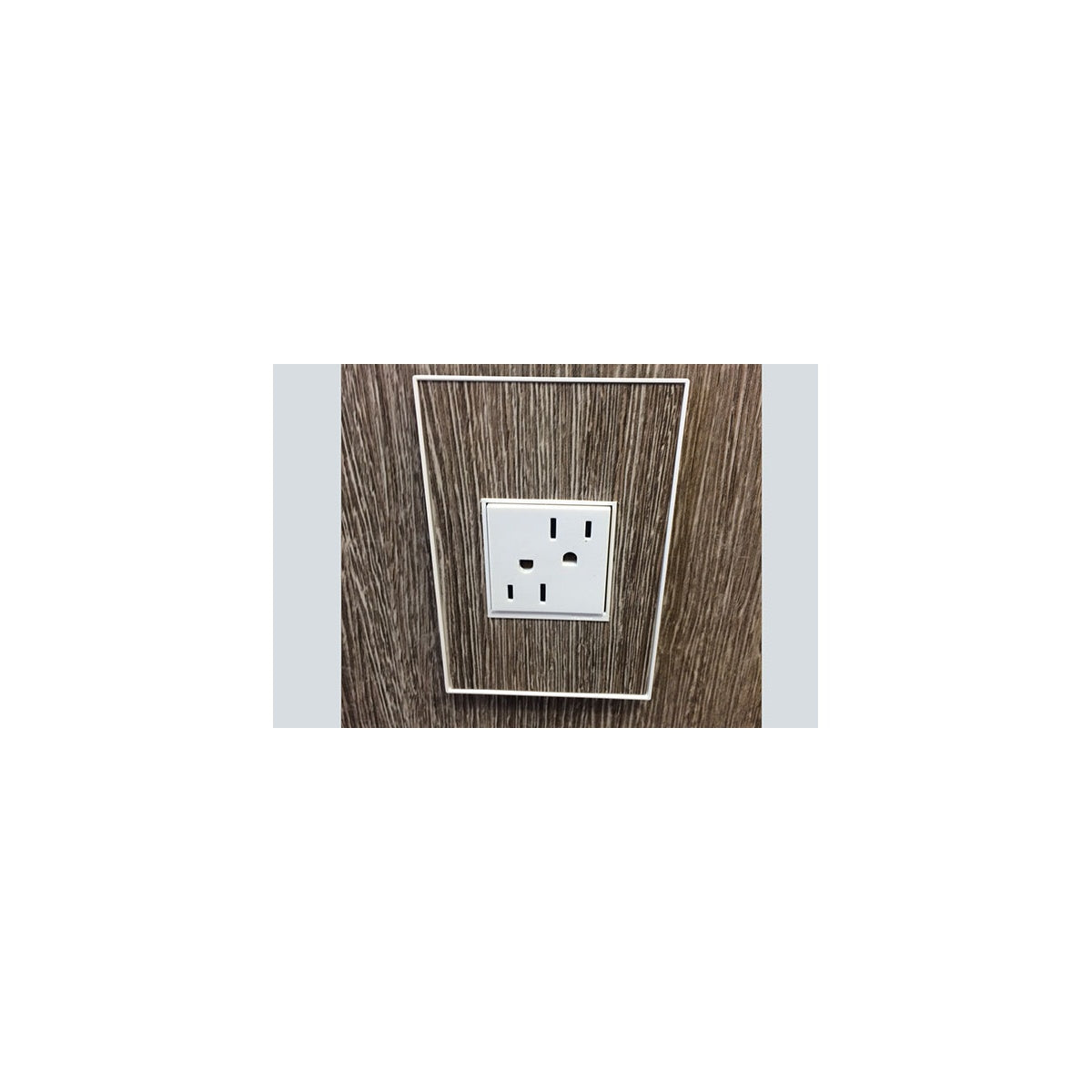

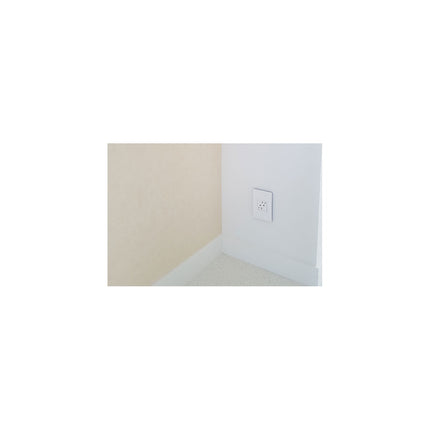

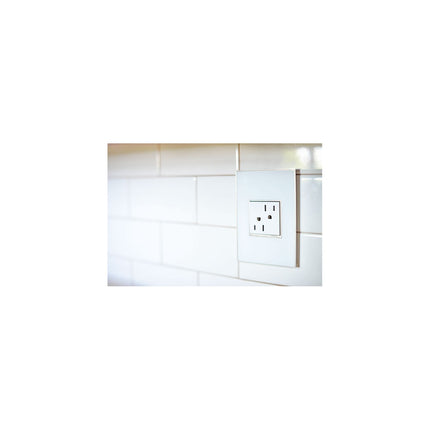

adorne® 15A Dual Tamper-Resistant Outlet, White – Residential Electrical Outlet

The adorne® 15A Dual Tamper-Resistant Outlet is designed for residential outlet applications, providing a modern upgrade in style and safety. This tamper-resistant outlet features a patented shutter system that prevents children from inserting small objects, enhancing safety in the home environment. It is compatible exclusively with screwless Wall Plates from the adorne® Collection, sold separately. The outlet supports both side and back wire connections with internal pressure plates for secure wiring. Suitable for use by electrical distributors and lighting solutions providers, this device fits in all existing NEMA-approved wallboxes and offers a 20A feed-through capability for installation on 20A circuits such as kitchens and bathrooms.

Specifications

• Amperage Rating: 15A
• NEMA Rating: 15A
• Connection Type: Internal Pressure Plates
• Connection: Side and Back Wire
• Number of Poles: Double Pole
• Number of Wires: 3
• Material: Polycarbonate
• Finish: Matte
• Color: White
• Mounting: Box Mount
• Dimensions (HxWxD): 2.12 in x 1.77 in x 1.73 in
• Product Weight: 0.25 lbs
• Environmental Conditions: 95% relative humidity, non-condensing
• Country of Origin: China
• Manufacturer Part #: ARTR152W4
• UPC: 785007040272
• 3rd Party Compliance: cULus Listed, UL498 Standard
• Warranty: Limited Lifetime

Features

• Patented tamper-resistant shutter system for child safety
• Heavy gauge steel frame with factory-installed 12AWG ground lead
• Self-grounding device and metal wall plates
• Device snaps into frame and self-aligns without screws
• Screwless wall plate snaps onto frame for easy installation
• Modular system improves fit and finish in multi-gang installations
• Backwire terminal screws recessed into back of device body
• Compatible with standard NEMA-approved wallboxes
• 20A feed-through allows installation on 20A circuits
