Adjustable in and out box for fan and ceiling fixtures. Mounts securely to joist on new construction. 2 Hour Fire Rating. 21.0 cu. Adjusts from 1/2" to 1-1/2"
SKU: #72028
Part: #FBA426
UPC: 018997025753
Adjustable in and out box for fan and ceiling fixtures. Mounts securely to joist on new construction. 2 Hour Fire Rating. 21.0 cu. Adjusts from 1/2" to 1-1/2"
SKU: #72028
Part: #FBA426
UPC: 018997025753
Description

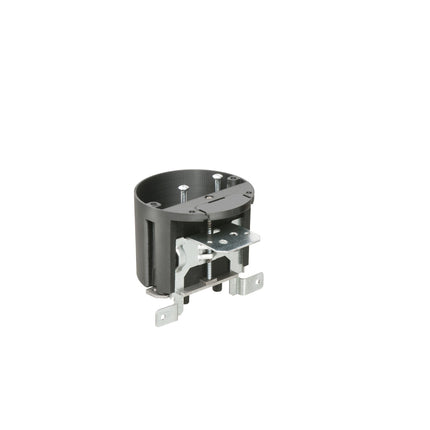

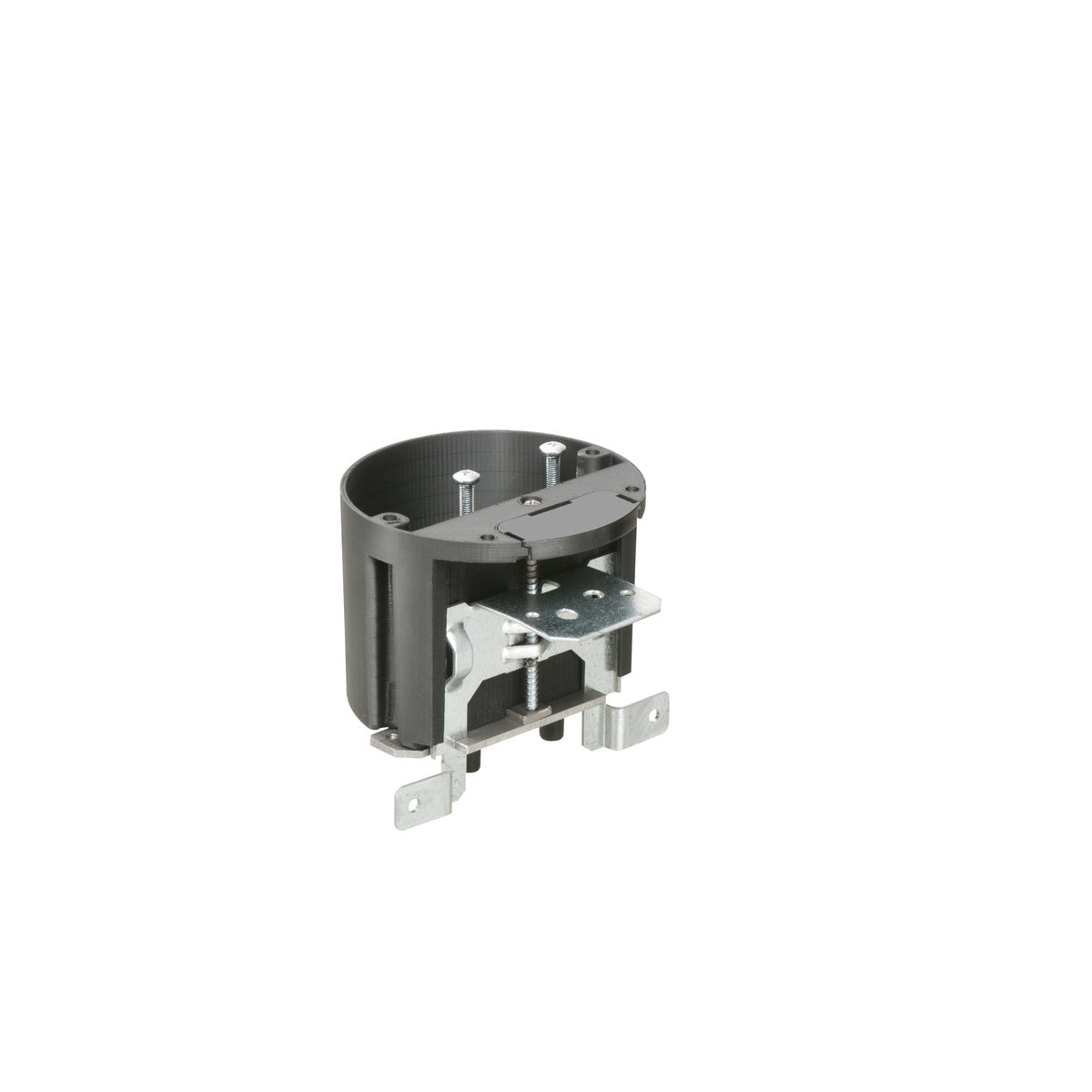

Adjustable IN/OUT BOX for Fan and Ceiling Fixtures
The Arlington Adjustable IN/OUT BOX is a non-metallic, adjustable electrical box designed for mounting fan and ceiling fixtures in new construction. It accommodates varying ceiling thicknesses from 1/2" up to 1-1/2", making it suitable for installations involving single or double drywall. This product is ideal for electrical distributors and lighting solutions providers requiring reliable fixture support and compliance with electrical codes.
Specifications
- Material: Plastic
- Color: Black
- Volume: 21.0 cubic inches
- Weight: 0.6180 lbs
- Fire Rating: 2-hour fire rating
- Fixture Support: Rated for fans up to 70 lbs and fixtures up to 100 lbs
- Mounting: Secures to joist in new construction
- Depth Adjustment: Adjustable from 1/2" to 1-1/2" ceiling thickness
- Compliance: Meets 2014 NEC, 314.20 for set back boxes
- Certifications: UL and CSA Listed
Features
- Always accessible depth adjustment screw allows adjustment before or after ceiling installation
- Includes NM cable connector for easy wiring
- Plastic insert included for secure installation
- Patent pending design

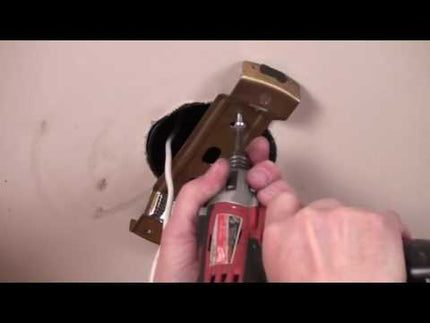

- Easy installation with four mounting screws through support tabs and front flange
- Flush mounting with ceiling after adjustment and bracket installation
- Made in USA
