Adjustable Box Mounting Brace, Adjust 10-3/8 in. to 18 in., for 4 in. or 4-11/16 in. Square Boxes that are 1-1/2 in. or 2-1/8 in. Deep
SKU: #122451
Part: #9013R
UPC: 050169990131
Adjustable Box Mounting Brace, Adjust 10-3/8 in. to 18 in., for 4 in. or 4-11/16 in. Square Boxes that are 1-1/2 in. or 2-1/8 in. Deep
SKU: #122451
Part: #9013R
UPC: 050169990131
Description

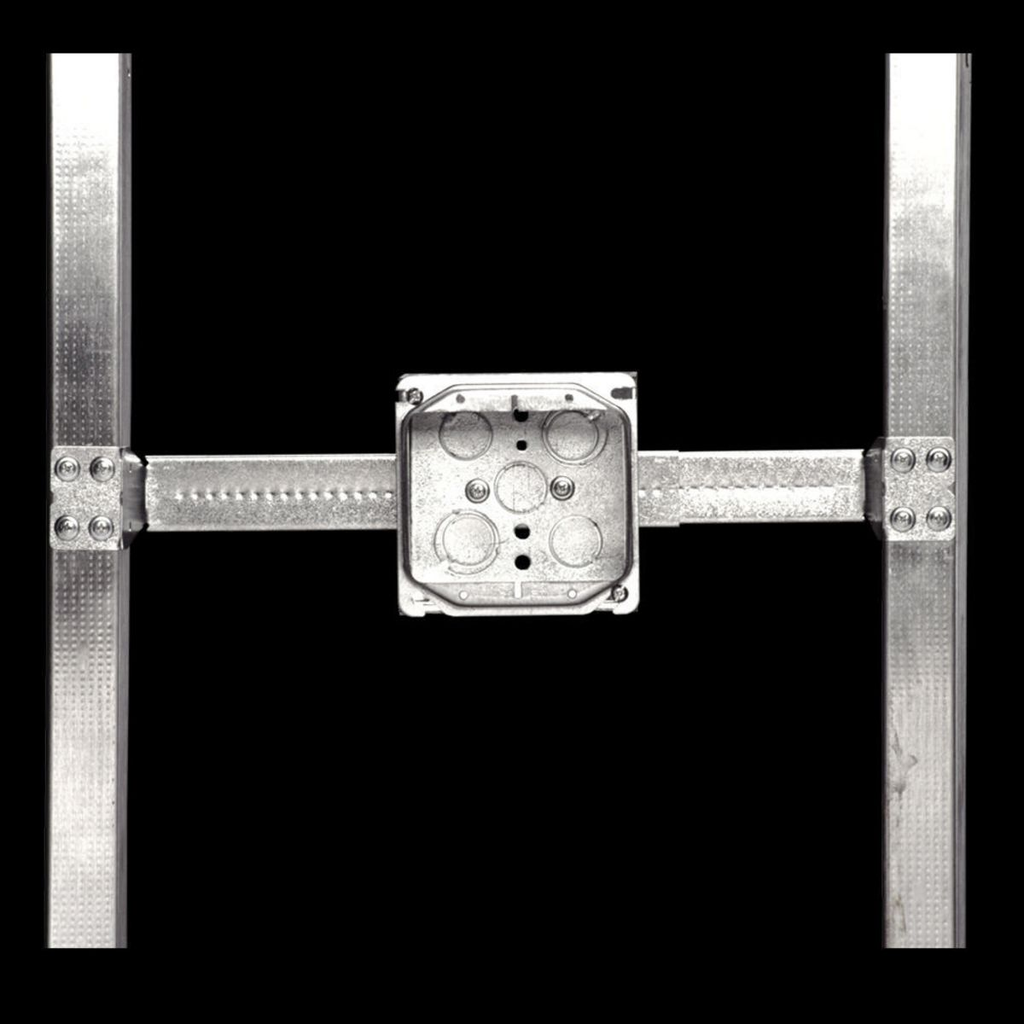

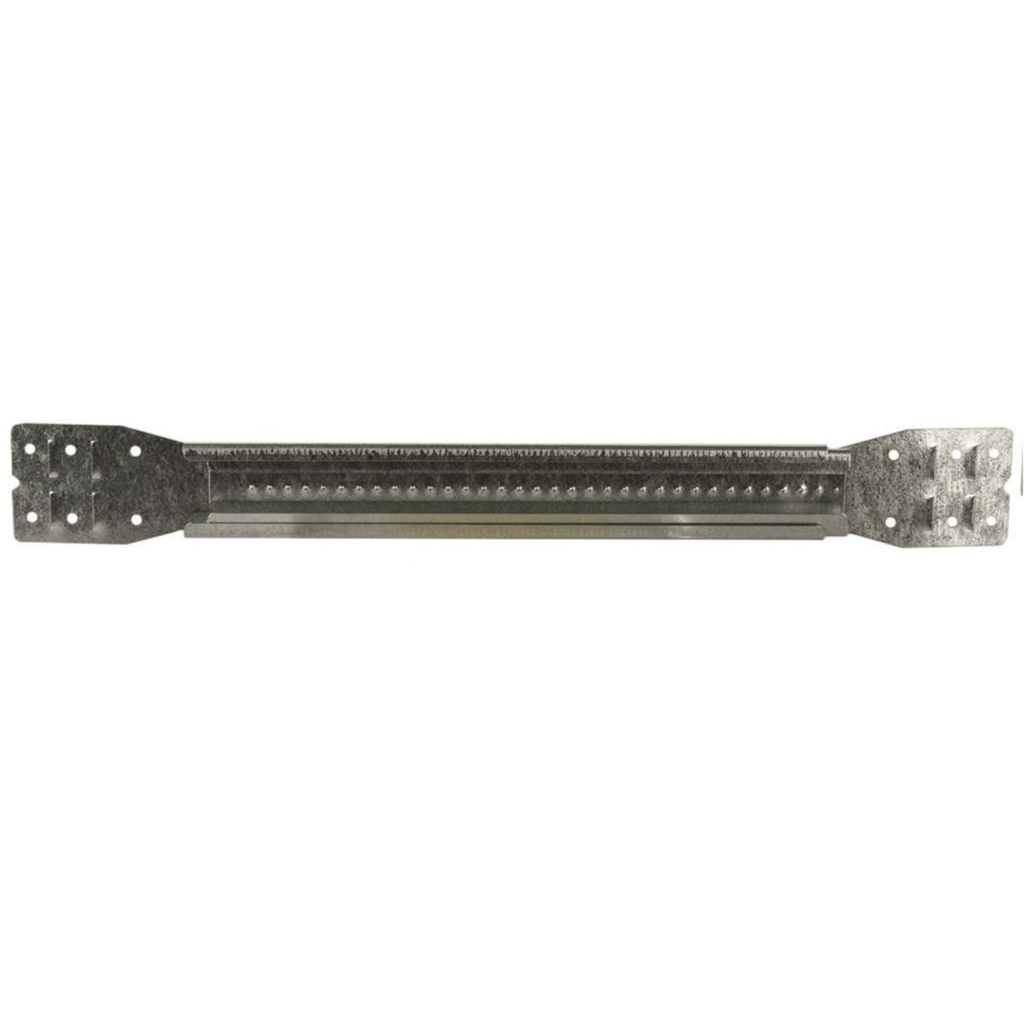

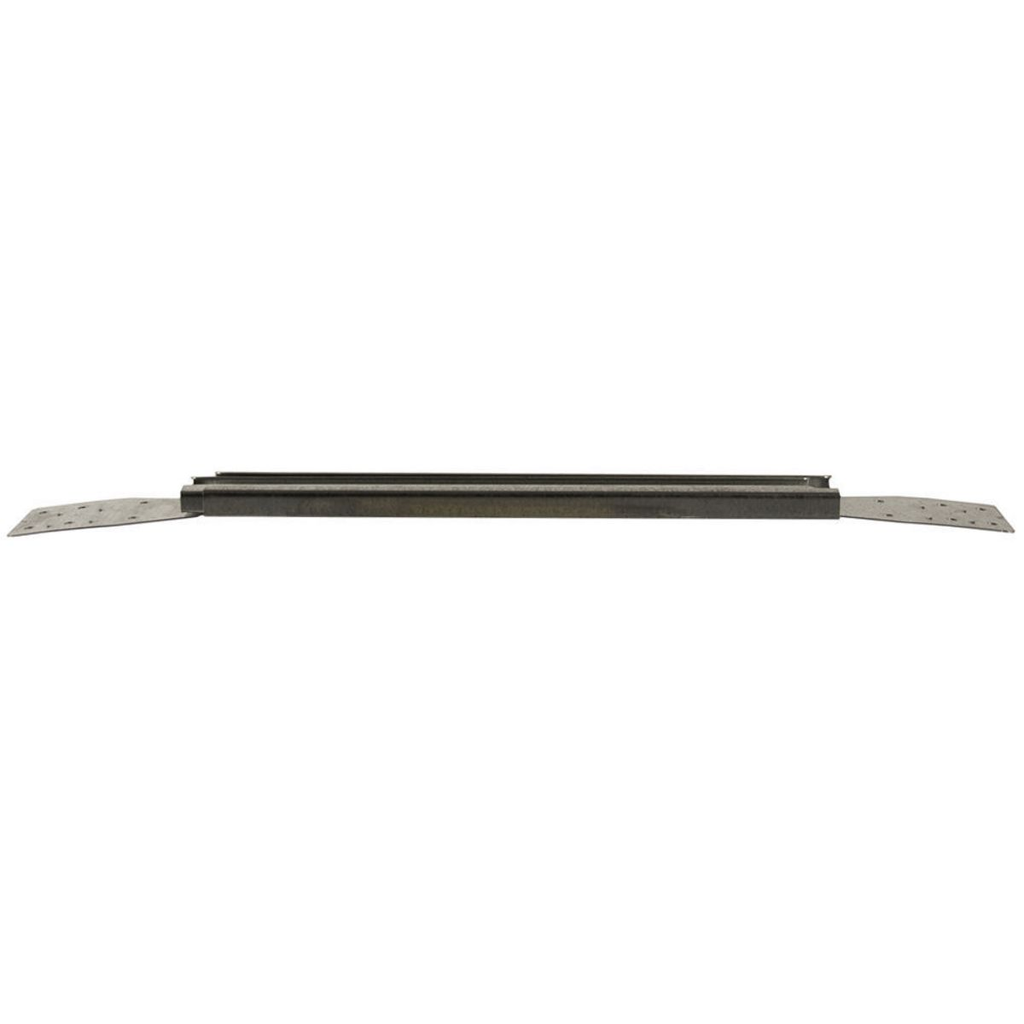

Adjustable Box Mounting Brace by RACO – Electrical Mounting Solutions
The Adjustable Box Mounting Brace by RACO is designed for secure and flexible installation of electrical boxes in residential and commercial wiring applications. It adjusts from 10-3/8 inches to 18 inches, accommodating 4 inch or 4-11/16 inch square boxes with depths of 1-1/2 inches or 2-1/8 inches. This brace is suitable for electrical distributors and switchgear suppliers seeking reliable box mounting hardware compatible with standard wire and cable installations.
Specifications
- Manufacturer Part #: 9013R
- Adjustable Length: 10-3/8 in. to 18 in.
- Compatible Box Sizes: 4 in. or 4-11/16 in. square
- Box Depth Compatibility: 1-1/2 in. or 2-1/8 in.
- Weight: 0.36 lb
- Width: 16 in.
- Dimensions: 0.43 in. (height) x 16 in. (width) x 1.75 in. (depth)
- Country of Origin: United States
- Made in USA: Yes
- Certifications: cULus Listed, Buy American Act Compliant (valid through December 2024)
Features
- Available for 1-1/2 in. or 2-1/8 in. deep boxes
- Locator dimples on the face allow precise positioning of single or multiple boxes
- Dimple design provides quick screw start and reinforcement to prevent screw stripping
- Adjustable design allows ground screw clearance when box is mounted
- Boxes attach easily with self-tapping screws
