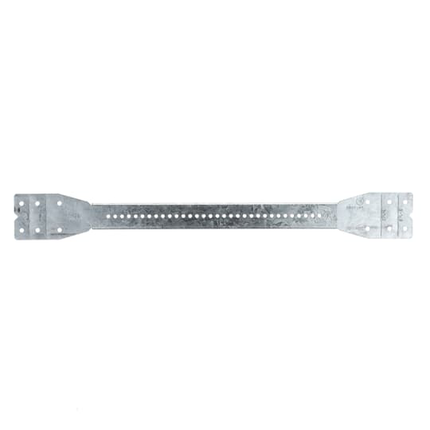

ADJUSTABLE BAR BRACKET 16 IN
SKU: #67133
Part: #SSF-SG16A
UPC: 785991014891
ADJUSTABLE BAR BRACKET 16 IN
SKU: #67133
Part: #SSF-SG16A
UPC: 785991014891
Next day delivery
Description
ADJUSTABLE BAR BRACKET 16 IN – Screw-Gun Adjustable Box Bracket
The ADJUSTABLE BAR BRACKET 16 IN is designed for mounting electrical outlet boxes in stud walls, suitable for use with 1-1/2 inch and 2-1/8 inch deep outlet boxes. This steel bracket enables adjustable stud spacing from 11 inches to 18 inches and installs easily with a screw gun, making it a practical solution for electrical distributors and switchgear suppliers managing wire and cable installations and lighting solutions.
Specifications
- Material: Steel
- Color: Silver
- Stud Spacing: 11 inches to 18 inches
- Box Depth Compatibility: 1-1/2 inch or 2-1/8 inch
- Product Weight: 20.0000 (units not specified)
- Manufacturer: Thomas & Betts
- Manufacturer Part #: SSF-SG16A
- Application: For use with 1-1/2 inch and 2-1/8 inch deep outlet boxes
- Number of Knockouts: 0
- Standards: UL E13938
Features
- Adjustable tabs for 1-1/2 inch or 2-1/8 inch deep electrical boxes
- Self-tapping screws aligned with dimples for straight box mounting
- Allows mounting of multiple boxes on a single bracket
- Preset for metal studs spaced 16 inches or 24 inches on center
- Easy installation with a screw gun
- Adjustable for non-standard stud spacing
- Galvanized finish for corrosion resistance
