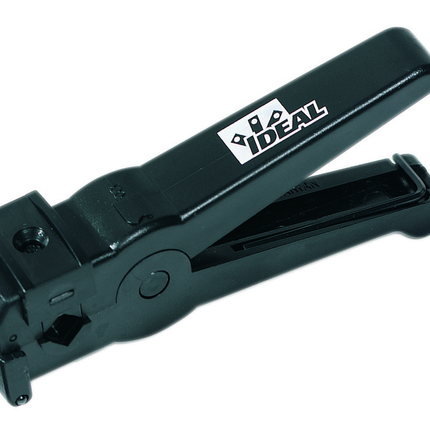

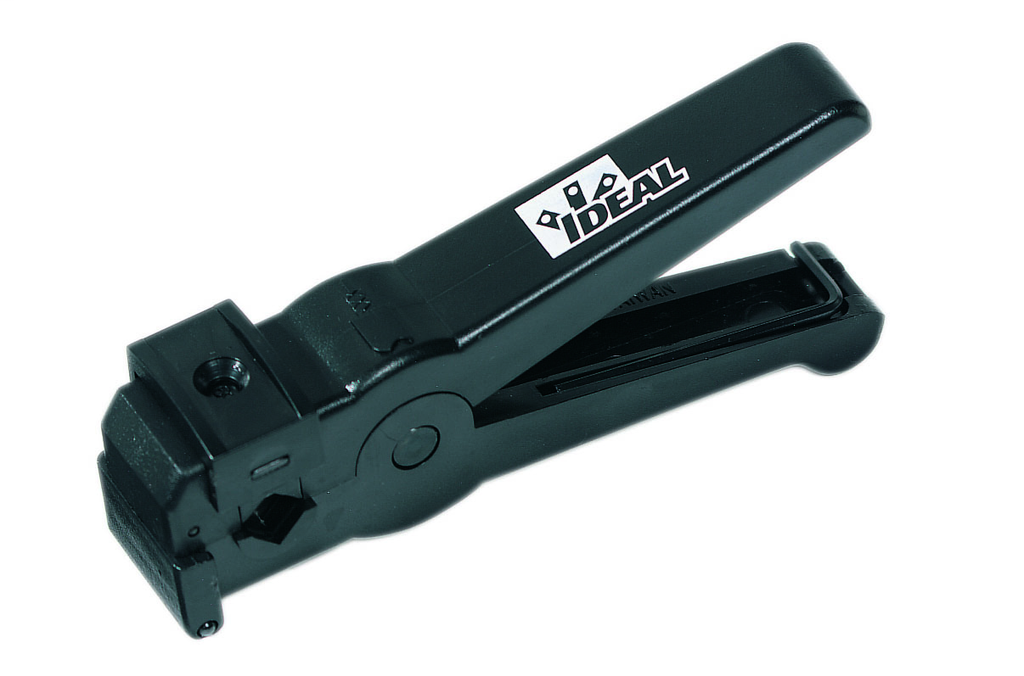

Adjustable 3 Blade Coax Stripper – Coaxial Cable Stripping Tool

The Adjustable 3 Blade Coax Stripper by IDEAL Industries is a precision tool designed for prepping coaxial cables ranging from RG-59 to RG-11. Ideal for electrical distributors and lighting solutions providers, this tool offers adjustable blade depths to accommodate varying cable jacket thicknesses and diameters, ensuring precise stripping for wire and cable applications. It is particularly suited for legacy RF crimp connectors requiring specific shield, dielectric, and conductor exposures. The integrated hex wrench stored in the handle allows fine-tuning of blade depth, enhancing compatibility with a wide range of coaxial cable types.

Specifications

• Manufacturer: IDEAL Industries
• Manufacturer Part #: 45-520
• Product Weight: 1.0000 lb
• Strips Coaxial Cable Types: RG-59 to RG-11
• Blade Spacing: Approximately 1/4 inch apart
• Blade Exposure: 1/4 inch shield, 1/4 inch dielectric, 1/4 inch conductor (variable up to 1/2 inch)
• Adjustment Tool: Hex wrench included in handle

Features

• Three individually adjustable blades for precise cutting on non-standard coaxial cables
• 3-position top side slide bar for fast adjustment of cable V-notch size
• Blades can be recessed to a no-cut position to allow operation as a standard 2-step stripper
• Compatible with traditional compression or crimp connectors requiring 1/4 inch by 1/4 inch cable preparation
• Hex wrench stored inside handle for easy blade depth adjustments
• Designed for use with legacy RF crimp connectors, not modern compression connectors
