ACP6044BC, Pin and Sleeve Plug
SKU: #380240
Part: #ACP6044BC
UPC: 781381440233
ACP6044BC, Pin and Sleeve Plug
SKU: #380240
Part: #ACP6044BC
UPC: 781381440233
Description

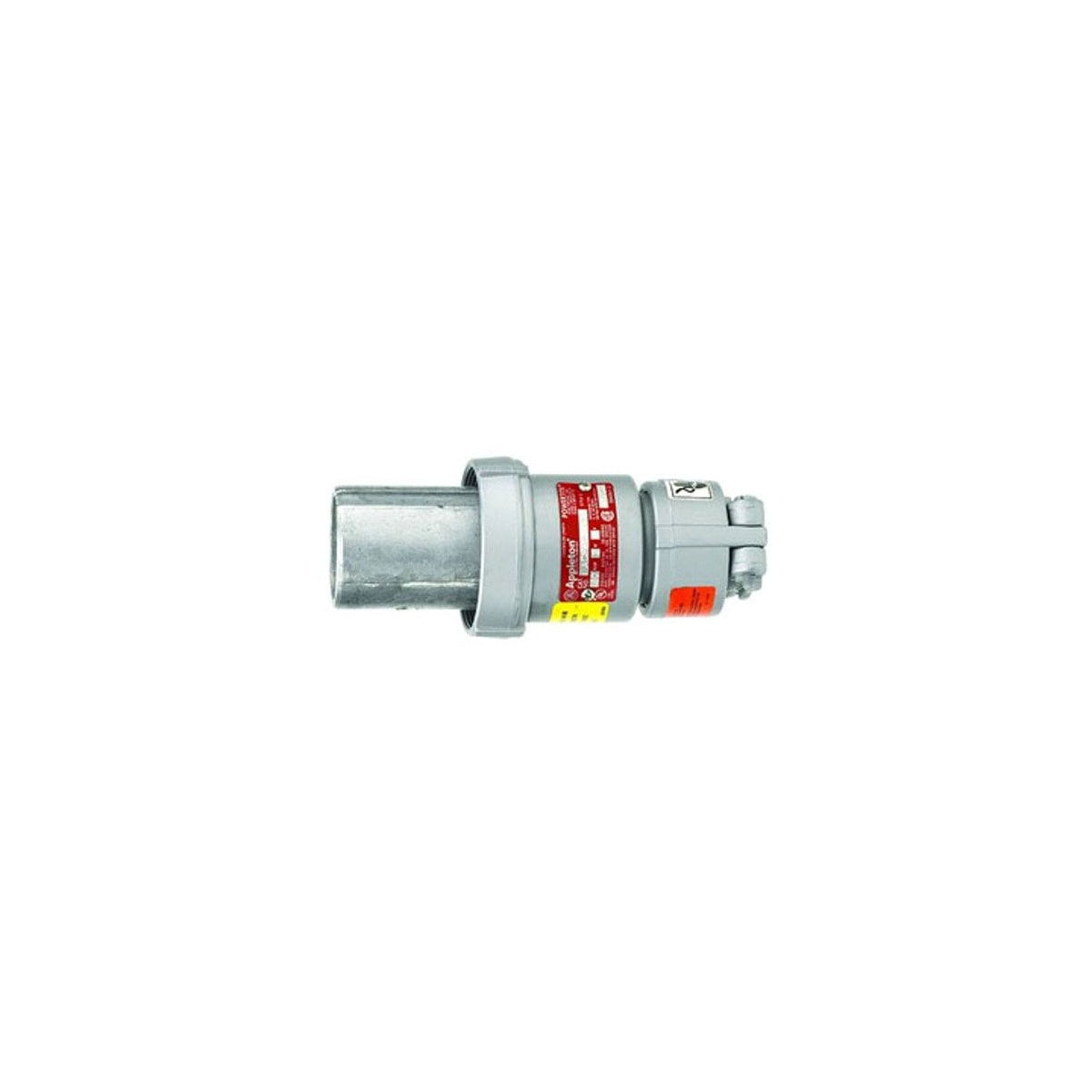

ACP6044BC Pin and Sleeve Plug – 60 Amp Powertite™ Electrical Connector
The ACP6044BC Pin and Sleeve Plug by Appleton is designed for safe, reliable power delivery to heavy-duty portable or fixed electrical equipment. Ideal for use in demanding industrial environments, this plug features a robust pin and sleeve design with recessed contacts and an internal arc snuffing chamber to enhance electrical safety. Suitable for applications requiring weatherproof enclosures, it is commonly used by electrical distributors and switchgear suppliers for lighting solutions, wire and cable connections, and power distribution to motor generators, welders, pumps, compressors, and cellular relay stations.
Specifications
- Current Rating: 60 amperes
- Number of Poles: 4
- Number of Wires: 4
- Material: Epoxy Powder Coated Copper-Free Aluminum
- Product Weight: 2.51 lbs
- Manufacturer: Appleton
- Manufacturer Part Number: ACP6044BC
Features
- Pin and sleeve design with solid brass pressure wire terminal contacts and beryllium copper springs for reliable conductivity and mechanical strength
- Contacts recessed within an internal arc snuffing chamber to reduce accidental contact and minimize arc exposure
- Neoprene sealing bushing compressed by cable collar prevents water ingress and resists hydrocarbon deterioration
- Positive polarization ensures compatibility only with plugs and receptacles of matching style, poles, and amperage
- Plug mechanical cable clamps provide strain relief and allow easy cable replacement
- Available in grounding styles: shell only or shell plus extra pole for enhanced grounding safety
- Ambient temperature range from -25°C to +40°C (-13°F to +104°F)
- Durable epoxy powder-coated finish on copper-free aluminum housing for corrosion resistance
- Designed for rough usage and suitable for weatherproof and classified locations when used with compatible explosionproof receptacles
