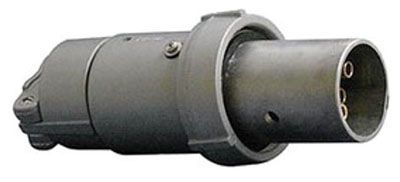

Features

• Circuit Breaking - In 100 Amp Units, any Arcing Created as Line and Load Terminal Disengage is Safely Confined Deep within Terminal Cavities
• Plugs May be Withdrawn in an Emergency Under Full Rated Loads without Separate Disconnect Switch
• Positive Polarization - Only Plugs and Receptacles of Same Style, Number of Poles and Ampere Rating Can be Used Together
• Locking Screw and Slot Prevents Plug Cable Collar from "Backing Off"
• Controlled Length Contacts Ensure that Ground Makes First and Breaks Last for Added Safety
• Contacts Exert Constant Pressure Along Entire Contact Surface and Provide Electrical Continuity
• Insulating Blocks Provide Greatest Dielectric and Mechanical Strength and Lowest Arc Tracking
• Neoprene Bushing Compressed by Cable Collar Prevents Entrance of Water
• Bushing is Highly Resistant to Hydrocarbon Deterioration and is Self-Extinguishing
• 100 Amp Powertite™ Plugs also Suitable for Classified Locations When Used with Appleton EBR, EBRH, JBR, MD2SR or DBR Explosionproof Interlocking Receptacles

Additional Information

• Hub Size 1-1/4 to 1-1/2 Inch
• Wire Size 4 to 1 AWG (Building), 4 to 2 AWG (Extra Flexible)
• Wire Recess Diameter 0.391 Inch
• Insulating Block Material Natural Glass Filled Polyester
• Enclosure Rating NEMA 3/3R/4/4X
• Ambient Temperature Rating -13 to 104 Deg F
• Applicable Standard NEC/CEC
• Power Rating 40 HP
• Temperature Rating -40 to 225 Deg F

Specifications

• Type: Motor Generator Unit, Welder, Pump, Compressor, Cellular Relay Station, Circuit Breaking, Positive Polarized, Clamping Ring
• Constructional Feature: Weatherproof, Rain Tight
• Voltage Rating: 600 Volt AC 50 to 400 Hertz 3-Phase, 250 Volt DC
• Current Rating: 100 Amp
• Number of Poles: 3
• Number of Wires: 3
• Grounding Style: 1, Shell
• Minimum Cable Outer Diameter: 0.875 Inch
• Maximum Cable Outer Diameter: 1.906 Inch
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Approval: UL, UL 1682/1686/50E, CSA C22.2
• Series/Model: ACP
