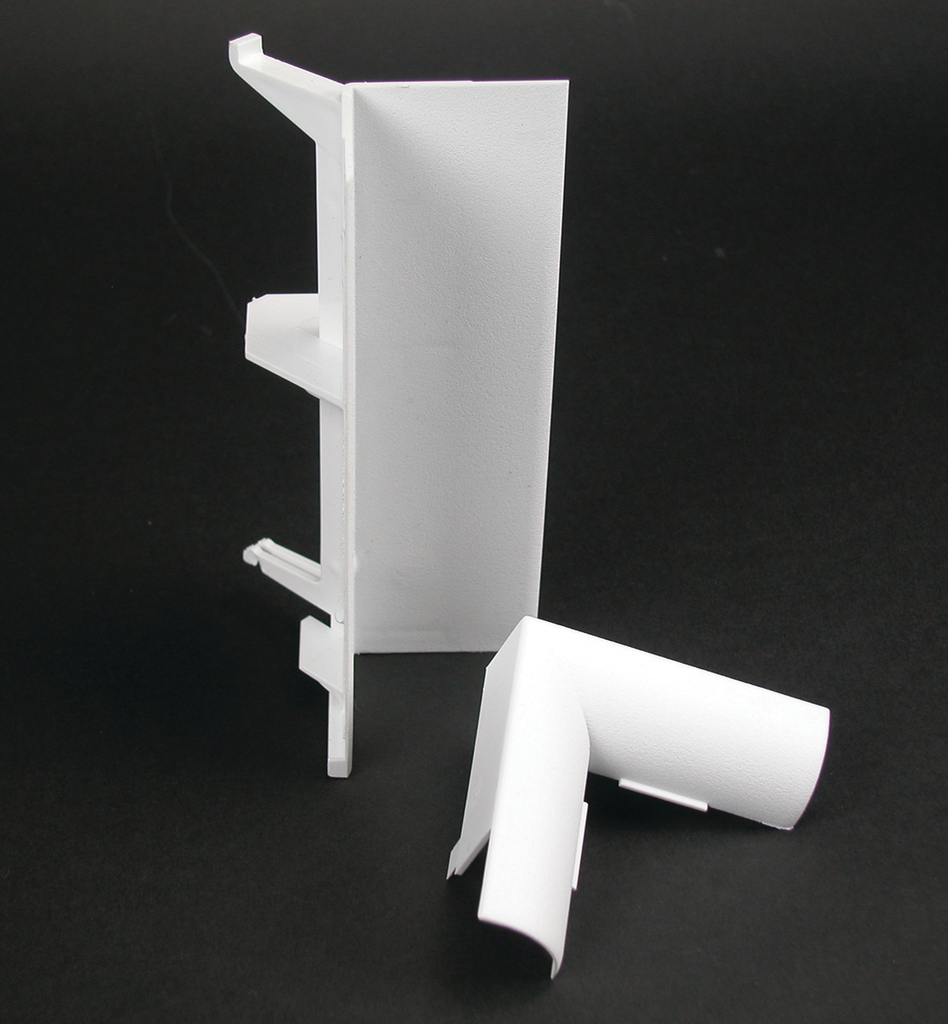

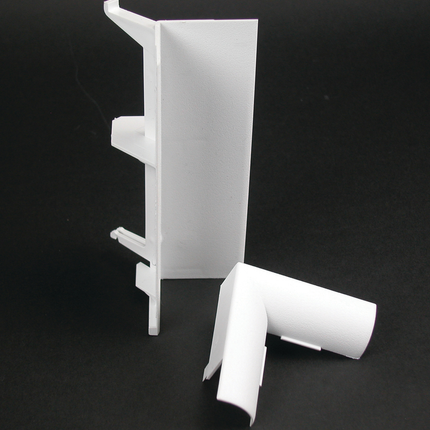

Access 5000 Internal Elbow Cover – Low-Profile Raceway Solution

The Access 5000 Internal Elbow Cover by Wiremold is designed to complement the Access 5000 Series Raceway system, a low-profile, dual-channel raceway solution that conceals and organizes electrical wiring and low-voltage cabling. Ideal for electrical distributors and lighting solutions providers, this component facilitates clean, efficient routing of power and communication cabling in residential and commercial environments such as homes, offices, classrooms, and hotels. The raceway system supports faster installation and reconfiguration compared to traditional in-wall wiring, preserving wall integrity and improving energy efficiency.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 5017CGY
• Product Weight: 0.2640 lbs
• Dimensions (H x W x D): 5.312 in x 2.656 in x 1.625 in
• Country of Origin: United States
• Made in USA: Yes
• UPC: 786776515084

Features

• Designed to mount at 90° internal corners as part of the Access 5000 Series Raceway system
• Low-profile and decorative molding finish maintains aesthetic appeal
• Snap-on cover design allows for quick and clean installation without disrupting wall vapor barriers or insulation
• Compatible with modular device brackets and faceplates for power and communication devices
• Durable PVC construction meets UL flammability requirements and is UL Listed and CSA Approved for up to 600 volts
• Supports easy reconfiguration of wiring and cabling, minimizing labor and costs
