Access 5000 Device Plate Fitting - Raceway Solutions

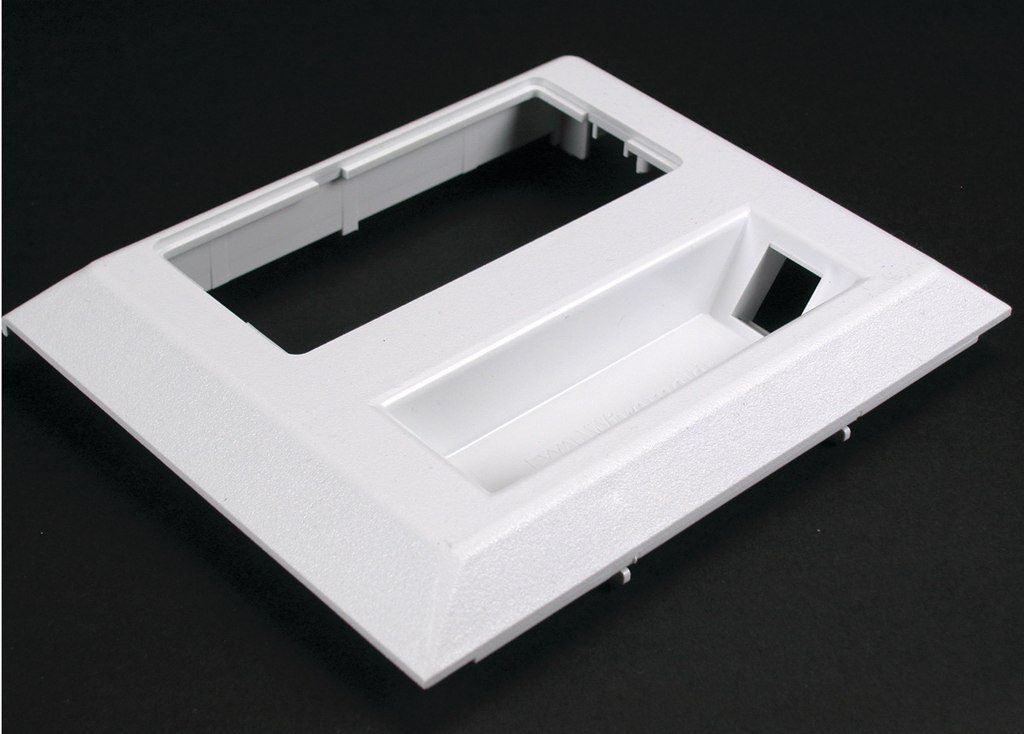

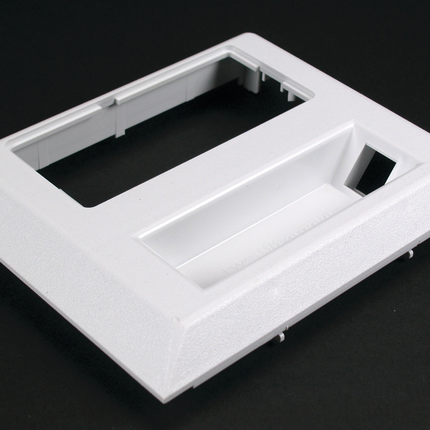

The Access 5000 Device Plate Fitting by Wiremold is a component of the Access 5000 Series Raceway system designed to conceal and organize electrical wiring and low-voltage cabling in a low-profile, decorative molding. This device plate fitting supports multiple options for power and communications cabling, facilitating faster, cleaner installation compared to conventional in-wall wiring. It is ideal for use in homes, offices, classrooms, and hotels, providing an energy-efficient solution that maintains the integrity of walls, vapor barriers, and insulation.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 5007C-1AWH
• Product Weight: 0.2274 lbs
• Dimensions: Length 5.187 in, Height 6.375 in, Depth 0.562 in
• Country of Origin: United States
• Made in USA: Yes
• UPC: 786776518795

Features

• Dual channel raceway system provides separation for power and low-voltage cabling.
• Low-profile device plates for an attractive, decorative finish.
• Modular device brackets and faceplates support integration of new and emerging power or communications technologies.
• Durable, lightweight PVC material meets UL flammability requirements and is UL Listed and CSA Approved for up to 600 volts.
• Quick and easy installation with snap-on fittings that overlap seams.
• Energy efficient installation preserving walls, vapor barriers, and insulation integrity.
• Compatible with Pass & Seymour® Activate Keystone Jacks and Inserts, and 5507 Series Faceplates.
• UL and cUL Listed component raceway complying with Article 386 of NEC and Section 12-600 of CEC.
• Accepts industry-standard and proprietary devices for voice, data, audio, and video applications.
