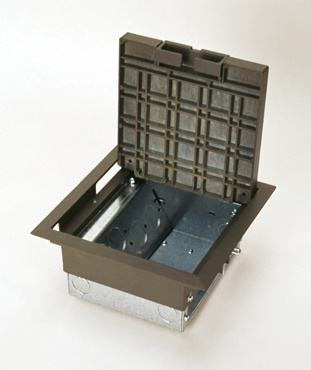

AC8850 Series Raised Floor Box
SKU: #276302
Part: #AC8850
UPC: 786564521358
AC8850 Series Raised Floor Box
SKU: #276302
Part: #AC8850
UPC: 786564521358
Total Price: $298.03 per each Sold in increments of 1 each
Next day delivery
Description
AC8850 Series Raised Floor Box - Raised Floor Boxes
The AC8850 Series Raised Floor Box by Wiremold is a steel-constructed floor box designed for electrical distributors and lighting solutions requiring reliable wire and cable management in raised floor applications. It accommodates power and communication configurations with a 5-inch depth and an 8" x 8" footprint, suitable for installation through the floor. The box is assembled in the United States and supports flexible service configurations for power, communication, and audio/video devices.
Specifications
- Material: Steel
- Dimensions: 8.0" Length x 8.0" Width x 5.0" Depth
- Cable Entry: Through Floor
- Construction: Assembled
- Made in USA: Yes
- Maximum Floor Thickness: 2" (including floor covering) [from AC Series specs]
- Service: Single
- Box Dimensions: 8" x 8" x 5" (203mm x 203mm x 127mm)
- Overall Trim Ring: 9 1/4" x 9 1/4" (235mm x 235mm)
- Panel Opening: 8" x 8" (203mm x 203mm)
- Cover Size: 7 11/16" x 7 11/16" (195mm x 195mm)
- Activation Chamber Volume: 97.22 cu in. (1593 ml)
- User Volume: 102.22 cu in. (1674 ml)
- Total Volume: 199.22 cu in. (3264 ml)
- Knockouts: Power – Four (4) 1/2"-3/4" Trade Size Concentric KOs; Communication – Four (4) 1/2"-3/4" Trade Size Concentric KOs
- Manufacturer: Wiremold
- Manufacturer Part #: AC8850
- Product Weight: 9.0 lbs
Features
- Compatible with Walkerflex® Manufactured Wiring System
- Provides four duplex power receptacle capacity on one side
- Communication plate accepts at least three communication adapters for up to 18 ports of activation
- Lids rotate 180° for easy orientation
- Gray lids constructed of die-cast zinc for durability
- Designed for installation after floor coverings are installed
- Listed by Underwriters Laboratories Inc. to U.S. and Canadian safety standards
- Meets NEC Section 300-22(C) for use in air handling spaces and raised floor plenums
- Triple service capacity accommodating power, communication, and audio/video devices
