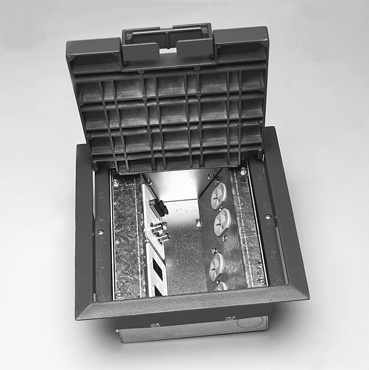

AC8840 Series Raised Floor Box – Raised Floor Electrical Distributor Solution

The AC8840 Series Raised Floor Box by Wiremold is a steel-constructed, assembled floor box designed for power and communication wiring applications in raised floor environments. Ideal for electrical distributors and switchgear suppliers, it provides a versatile solution for managing wiring in PBX rooms, MIS processing rooms, university computer labs, financial institutions, and houses of worship. The box supports through-floor cable entry and is compatible with the Walkerflex® Manufactured Wiring System, offering flexibility in power and communication configurations.

Specifications

• Material: Steel
• Dimensions: 8.0 in (Length) x 8.0 in (Width) x 4.0 in (Depth)
• Cable Entry: Through Floor
• Construction: Assembled
• Country of Origin: United States
• Made in USA: Yes
• Product Weight: 9.0 lbs
• Manufacturer: Wiremold
• Manufacturer Part #: AC8840
• Order Minimum: 1 unit
• Maximum Floor Thickness: 2" (including floor covering) [from installation instructions]
• Panel Cutout Dimensions: 8" x 8" (203mm x 203mm) [from installation instructions]

Features

• Compatible with Walkerflex¬Æ Manufactured Wiring System for modular wiring solutions
• Designed for flexibility and accessibility in raised floor and shop floor box applications
• Supports a variety of power and communication configurations with device plate options
• Power plate with two duplex knockouts included; communication plate accepts two communication adapters (up to 12 ports)
• Lids rotate 180¬∞ for easy orientation; gray lids are die-cast zinc construction
• Suitable for use in air handling spaces in compliance with NEC Section 300-22(C)
• UL Listed and Classified for safety standards
• Installation designed for quick mounting with locking tabs securing box to floor panel
