Description
Features
Certifications
- NAFTA Compliant
- cULus Listed
- RoHS Compliant

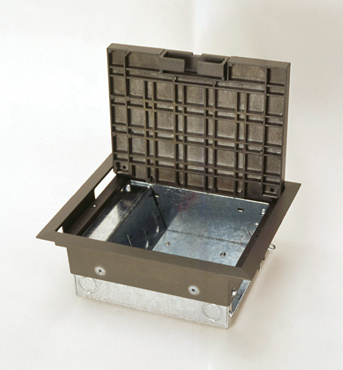

- This box has a 4'' (102mm) depth design with an extra 2'' (51mm) of width for additional wiring capacity. These boxes can accommodate two duplex power receptacles on one side. Power plate with duplex knockouts included with box. The communication plate will accept two communication adapters for up to 12 ports of activation. Lids can be rotated 180° for easy orientation. Gray lids are die-cast zinc construction. NOTE: For custom options, consult factory. All boxes are sold with one power plate: 4'' (102mm) deep boxes have plate with two power duplex receptacle KOs, 5'' (127mm) deep boxes have plate with four power duplex receptacle KOs. All communication plates sold separately.
Specifications
- Product Line: Wiremold
Specifications
- Depth: 4.0 in
- Length: 8.0 in
- Width: 10.0 in
- Country of Origin: United States
Downloads
Spec SheetInstallation Instructions
AC Series Multi-Service Raised Floor BoxesCAD Drawings
AC Series Raised Floor Box - AC8104Cutsheet
FloorSource Raised Floor Boxes CutsheetMore Information
Manufacturer Catalog Number
AC8104
Weight
10
Length
8.0
Width
10.0
Country of Origin
United States
Made in USA
Yes
Material
Steel
Depth
4.0 inches
Type
Floor Box
