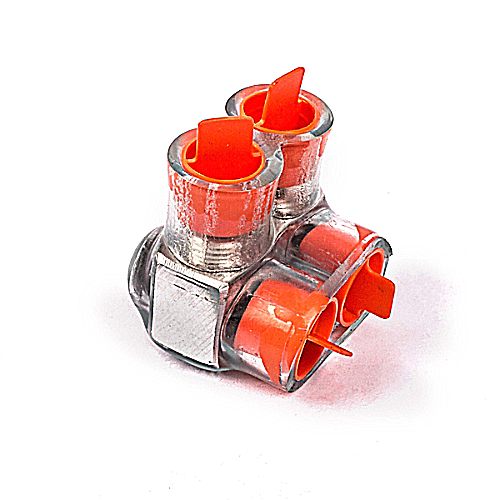

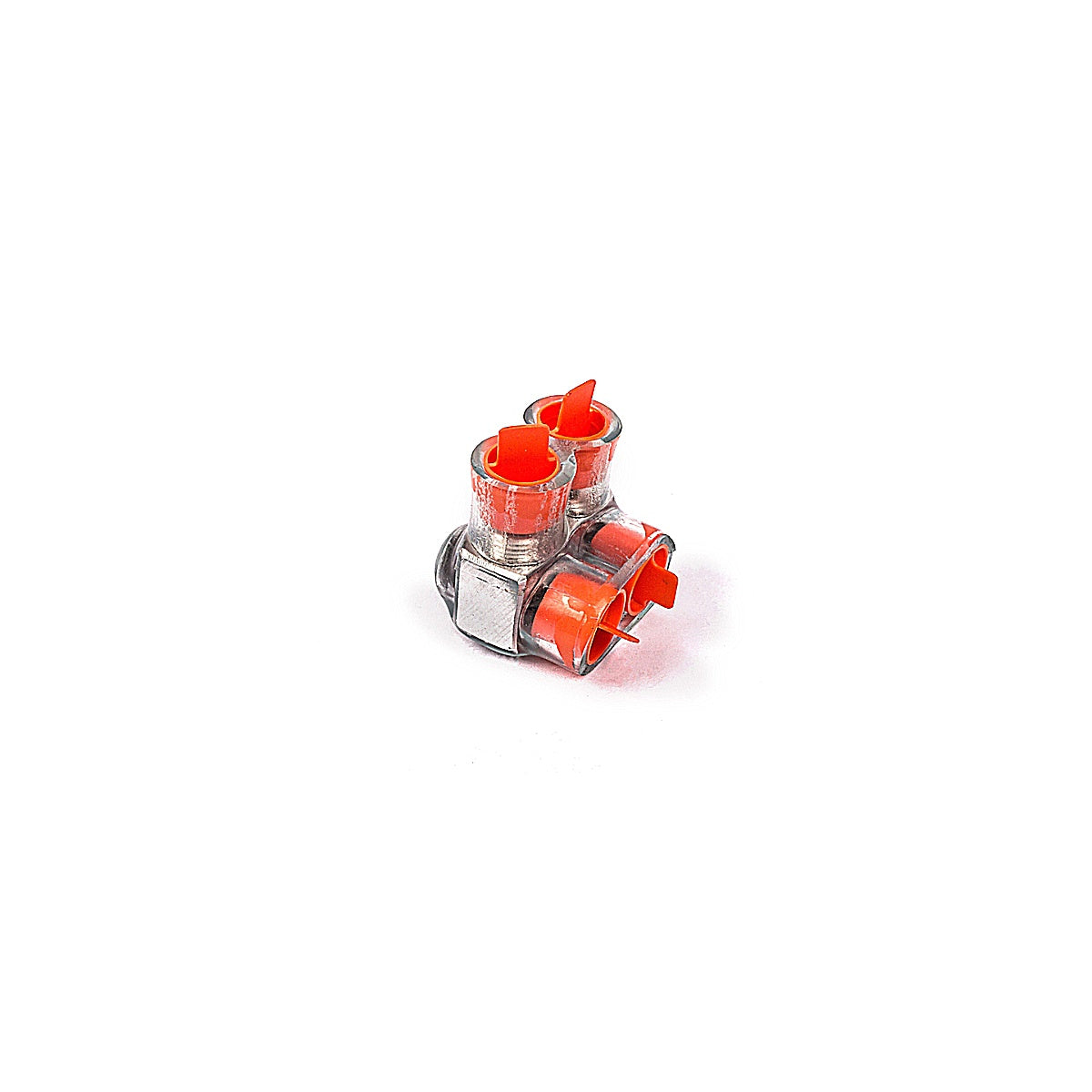

Above Ground Pedestal Connectors & Covers - Aluminum Multi-Tap Cable Blocks

The Homac Above Ground Pedestal Connectors & Covers are aluminum multi-tap encapsulated cable blocks designed for one-way configuration applications. These connectors accommodate a wide wire range from 2/0 to 14 stranded wire and feature clear PVC insulation for safe, time-saving installation without the need for taping. Suitable for use by electrical distributors and switchgear suppliers, these connectors provide reliable electrical connections in lighting solutions and wire and cable systems.

Specifications

• Manufacturer: Homac
• Manufacturer Part #: CSB 2/0-2 S
• Material: Aluminum
• Color: Clear
• Wire Range: 2/0–14 Stranded
• Configuration: One-Way
• Hex Size: 3/16 inch
• Dimensions: Length 1.61 in, Width 1.50 in, Height 1.63 in
• Number of Outlets: 2
• Voltage Rating: 600V
• Temperature Rating: 90°C
• UL Standard: UL E9809
• Packaging Quantity: 10 per box
• Product Weight: 1.23 lbs

Features

• Versatile design supports a wide range of cable sizes and multiple outlet configurations
• Clear PVC insulation provides enhanced safety and eliminates the need for taping during installation
• Encapsulated cable blocks allow for secure, time-efficient electrical connections
• Dual-rated for use with copper or aluminum cables
• Meets or exceeds ANSI C119.4 specifications for electrical taps
