Morris Products
Above Ground Insulation Piercing Connectors Main 500-4/0 Tap 350-1/0
SKU: #280687
Part: #96120
UPC: 601986961202
Description
Above Ground Insulation Piercing Connectors Main 500-4/0 Tap 350-1/0 - Insulation Piercing Connector
This Above Ground Insulation Piercing Connector by Morris Products is designed for reliable electrical connections in low voltage power distribution systems up to 600V. It facilitates efficient wire and cable tapping without the need to strip insulation, making it suitable for electrical distributors and switchgear suppliers managing overhead and above-ground wiring applications.
Specifications
- Material: Copper
- Connector Type: Insulation Piercing - Above Ground
- Dimensions (HxWxL): 5.4 in x 3 in x 5 in
- Product Weight: 1.6650 lbs
- Manufacturer: Morris Products
- Manufacturer Part #: 96120
- Main Conductor Range: 500 - 4/0 AWG
- Tap Conductor Range: 350 - 1/0 AWG
- Number of Bolts: 2
- Bolt Torque: 330 inch lbs
- Bolt Head Size: 5/8 inch
- Voltage Rating: 600 V
- Temperature Rating: 90°C
- UL Certification: UL 486B Dual Rated CU9AL, cUL Yes
Features
- Insulated touch-proof insulation piercing connector for safe installation
- Double head shear nut ensures proper torque during installation
- Feed/tap configuration optimized for low voltage power distribution

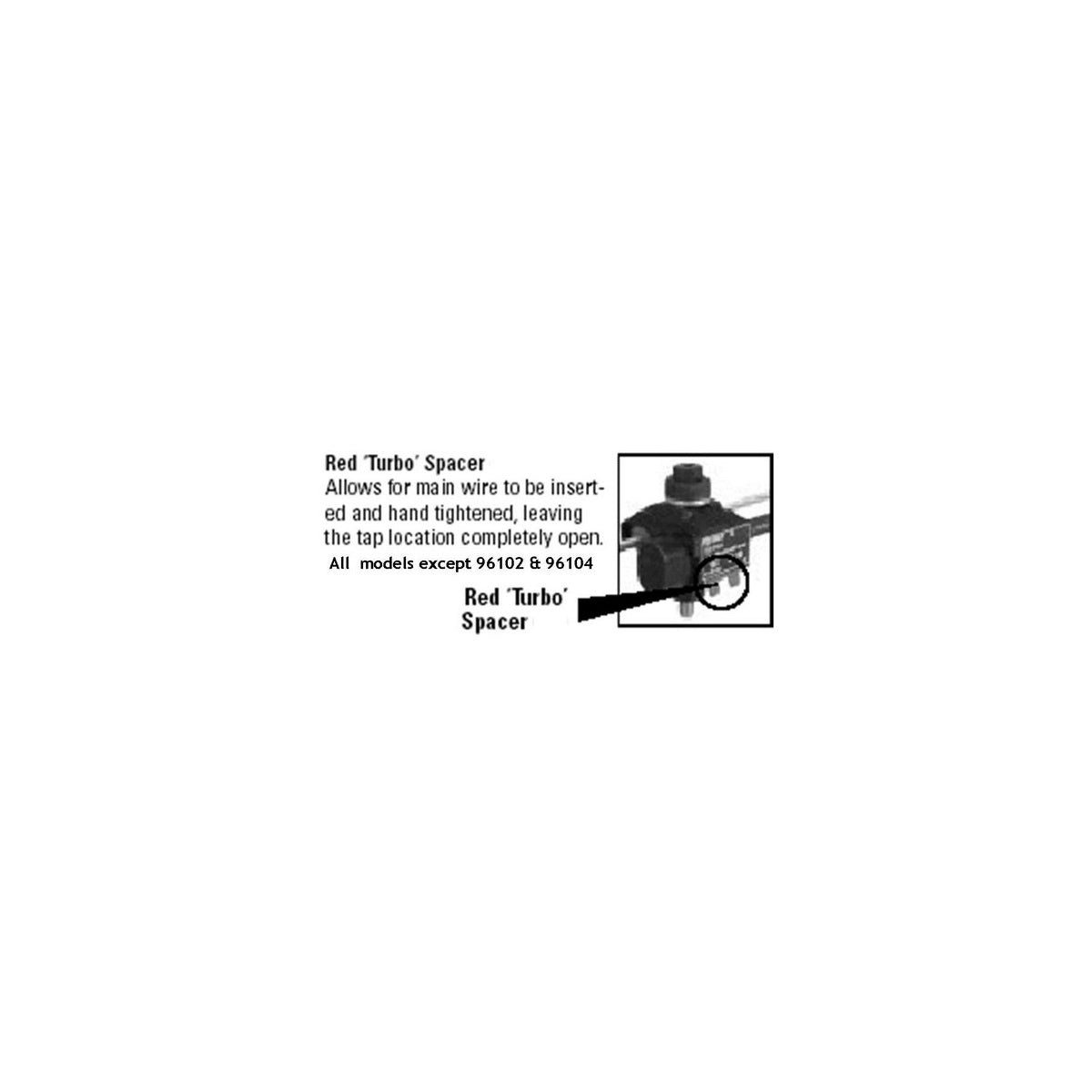

- Turco spacer maintains jaw opening for ease of installation
- Sealant tank provides watertight seal after insulation piercing

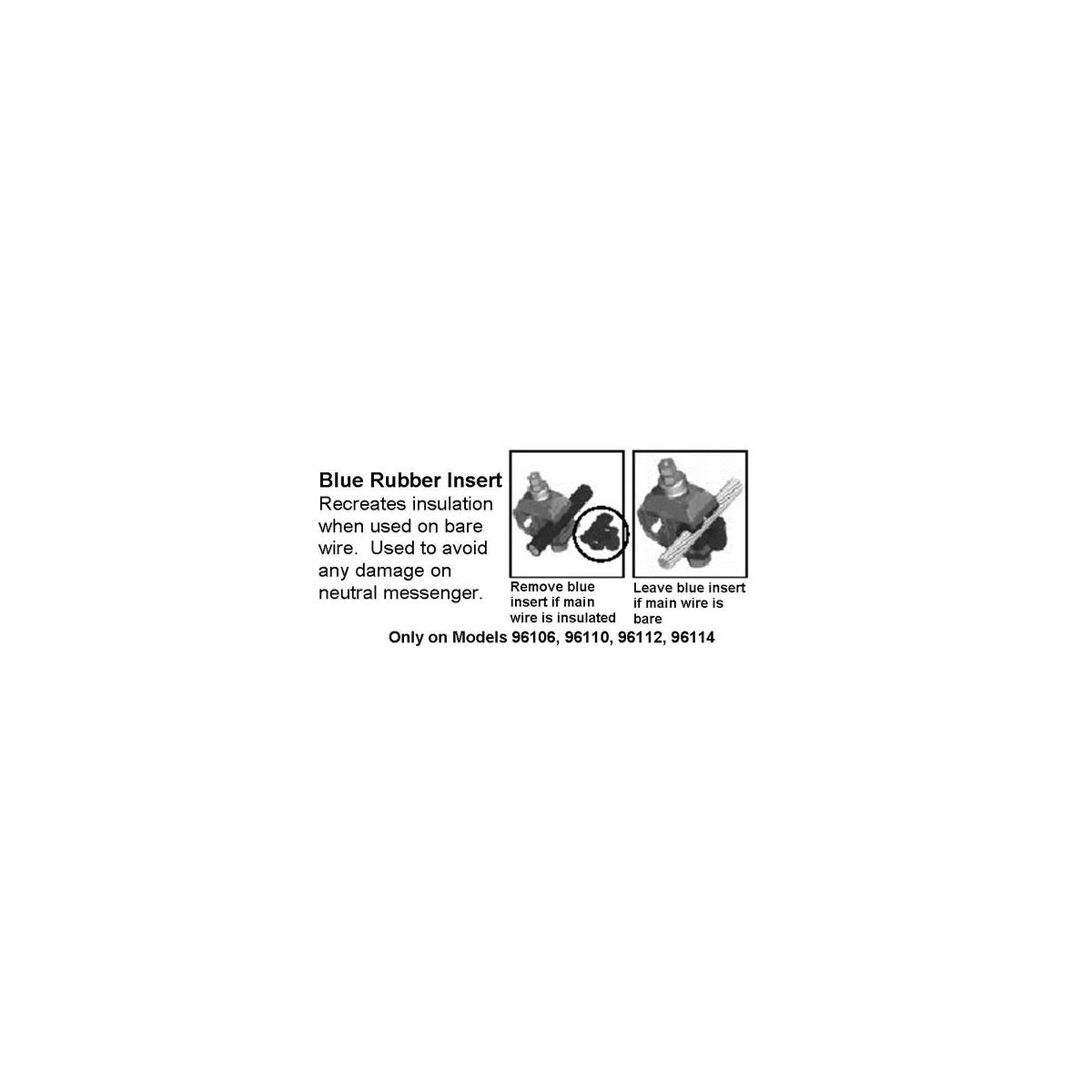

- Jacket insert accommodates non-insulated cable constructions
