Above Ground Insulation Piercing Connectors Main 500-2/0 Tap 4/0-4 – Insulation Piercing Connector

This Above Ground Insulation Piercing Connector is designed for reliable electrical connections in low voltage power distribution applications up to 600V. Suitable for use by electrical distributors and switchgear suppliers, it facilitates secure wire and cable connections without the need to strip insulation, ensuring efficient installation and maintenance in lighting solutions and power distribution systems.

Specifications

• Material: Copper
• Connector Type: Insulation Piercing - Above Ground
• Dimensions (H x W x L): 5.4 in x 3.1 in x 5.0 in
• Product Weight: 1.74 lbs
• Manufacturer: Morris Products
• Manufacturer Part #: 96118
• Conductor Range: Main 500 - 2/0 AWG, Tap 4/0 - 4 AWG
• Bolt Head Size: 5/8"
• Torque: 330 inch lbs.
• Voltage Rating: 600 V
• Temperature Rating: 90°C
• UL Certification: UL 486B Dual Rated CU9AL, cUL Yes

Features

• Insulated touch-proof design for safe insulation piercing
• Double head shear nut ensures proper torque during installation
• Feed/tap configuration optimized for low voltage power distribution

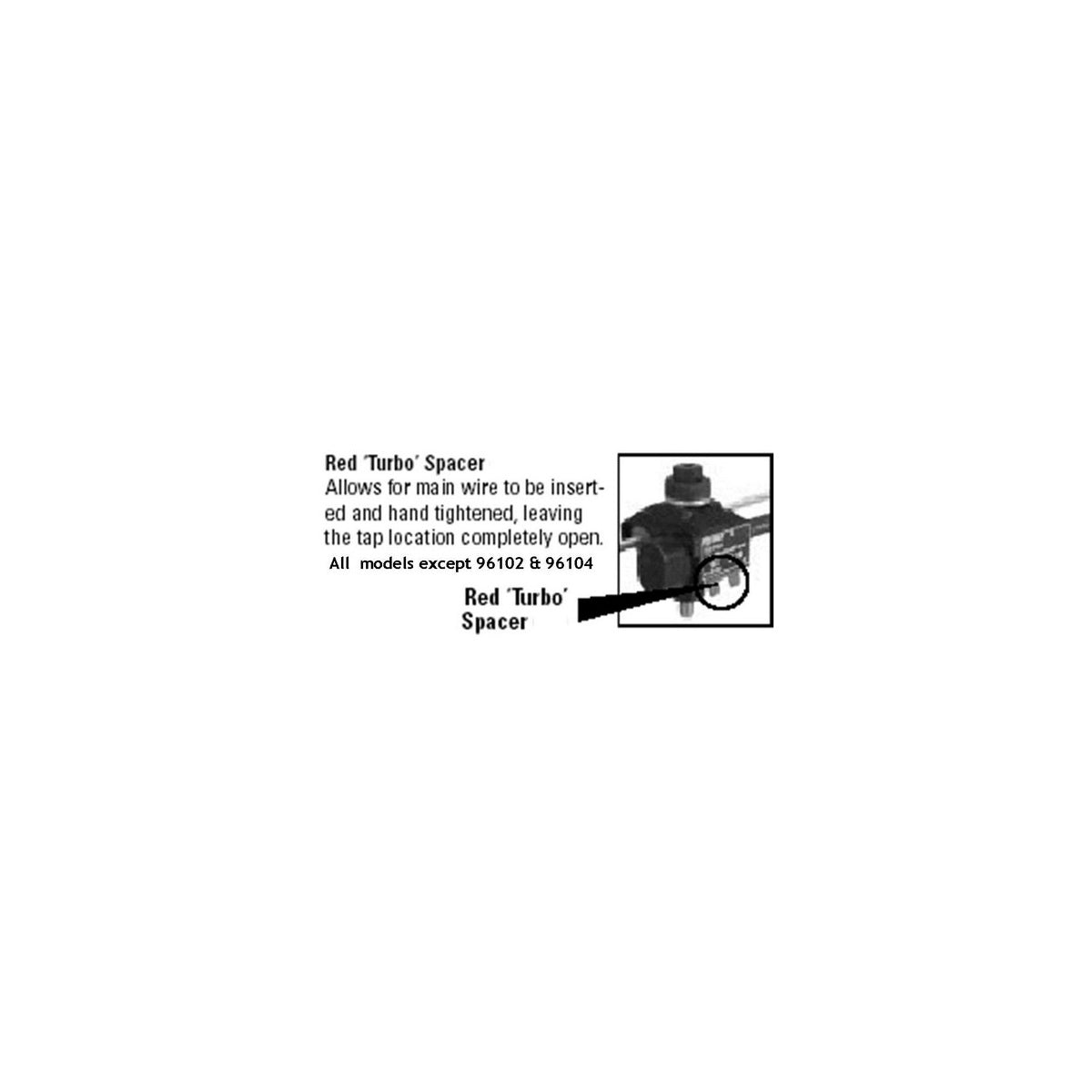

• Turco spacer maintains jaw opening for ease of installation
• Sealant tank provides watertight seal after insulation piercing

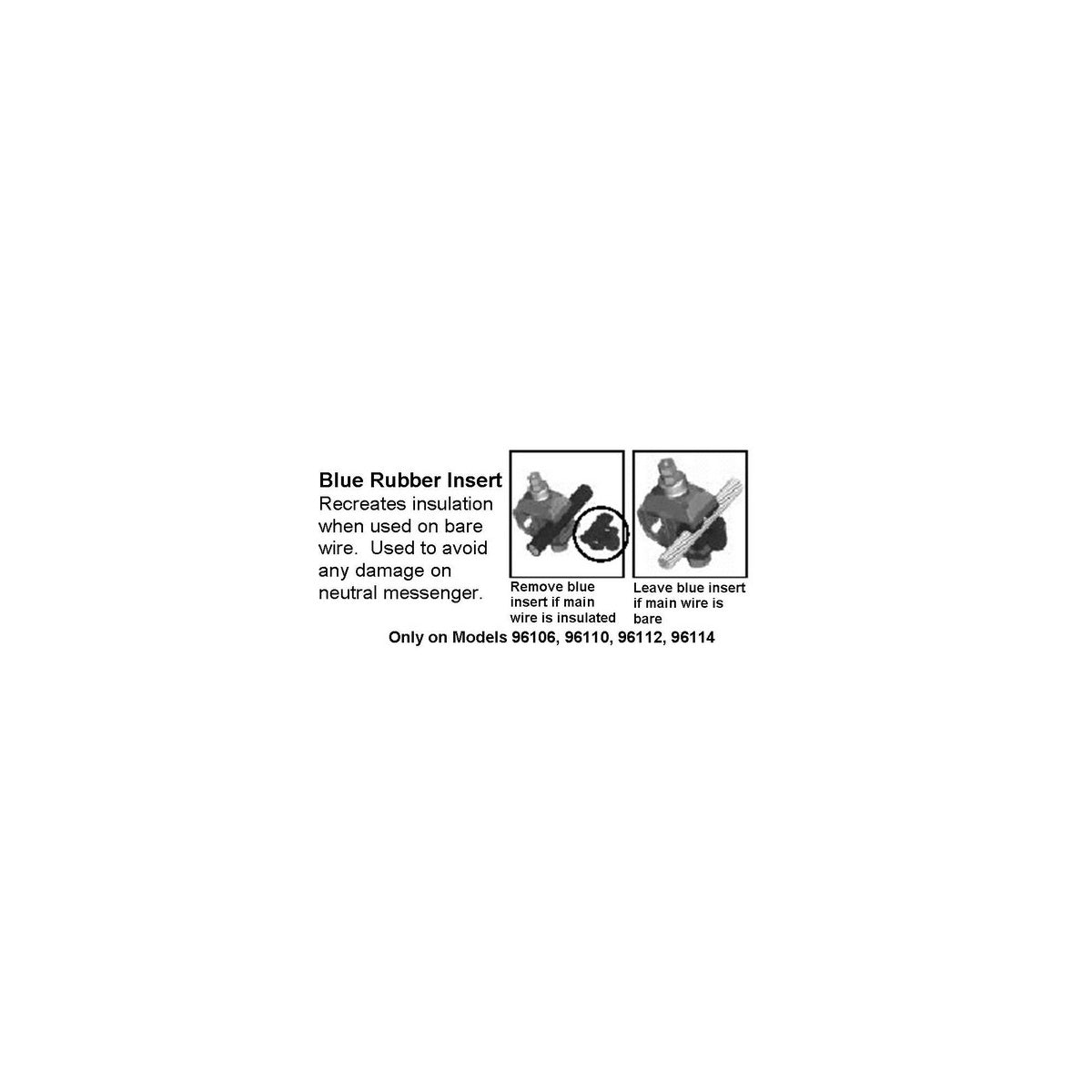

• Jacket insert accommodates non-insulated cable constructions
