Morris Products
Above Ground Insulation Piercing Connectors Main 4/0-3 Tap 2-10
SKU: #280669
Part: #96108
UPC: 601986961080
Morris Products
Above Ground Insulation Piercing Connectors Main 4/0-3 Tap 2-10
SKU: #280669
Part: #96108
UPC: 601986961080
Description
Above Ground Insulation Piercing Connectors Main 4/0-3 Tap - Insulation Piercing Connector
The Above Ground Insulation Piercing Connector is designed for low voltage power distribution applications up to 600V. It provides a reliable feed/tap configuration suitable for electrical distributors and switchgear suppliers requiring efficient wire and cable connections. This connector facilitates quick and secure installation with insulation piercing technology, eliminating the need to strip conductor insulation.
Specifications
- Material: Copper
- Connector Type: Insulation Piercing - Above Ground
- Dimensions (HxWxL): 3.9 in x 1.7 in x 2.7 in
- Product Weight: 0.3900 lbs
- Manufacturer: Morris Products
- Manufacturer Part #: 96108
- UPC: 601986961080
Features
- Insulated touch-proof insulation piercing design for safe installation
- Double head shear nut ensures proper torque during installation
- Feed/tap configuration supports low voltage power distribution through 600V

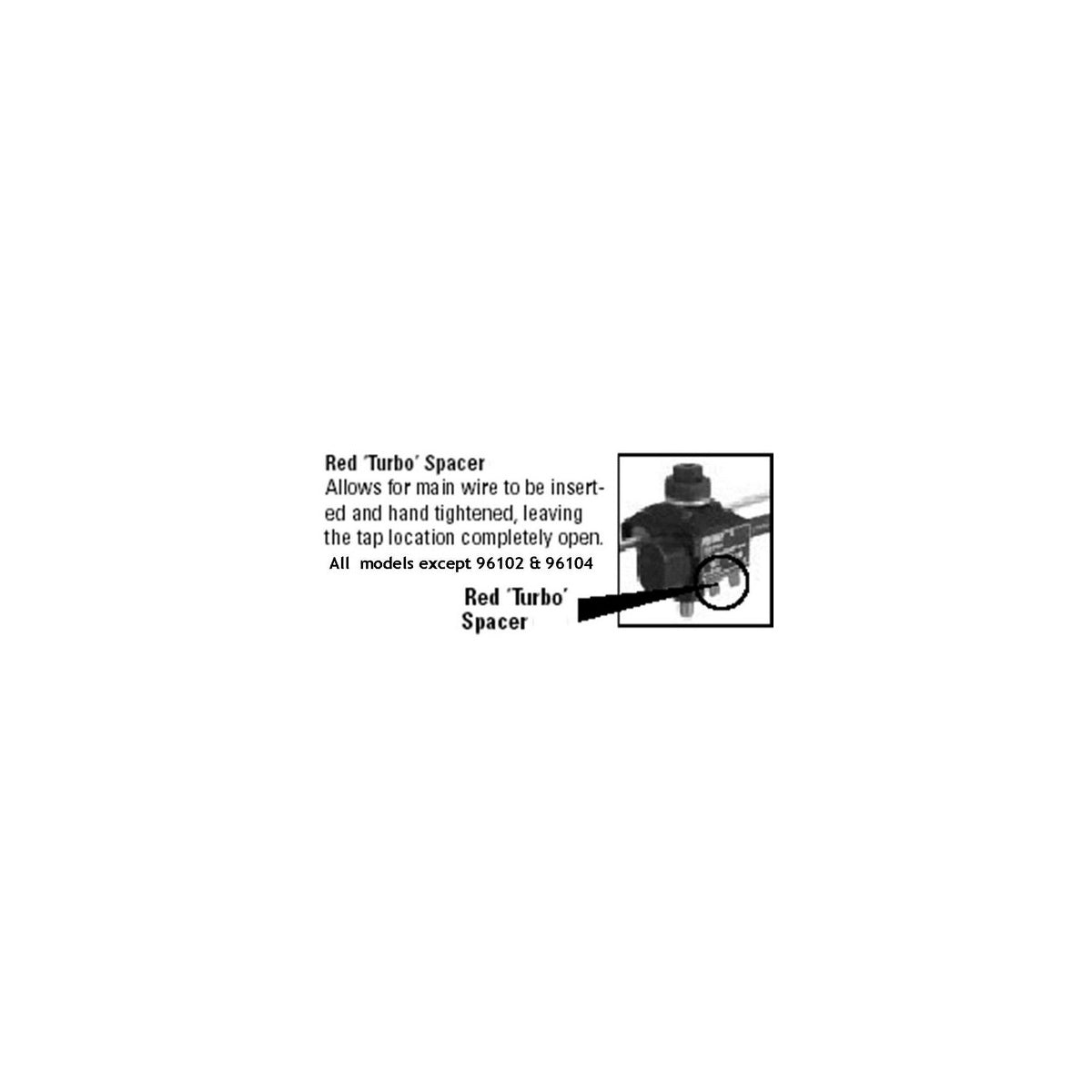

- Turco spacer maintains jaw opening for ease of installation
- Sealant tank provides watertight seal after insulation piercing

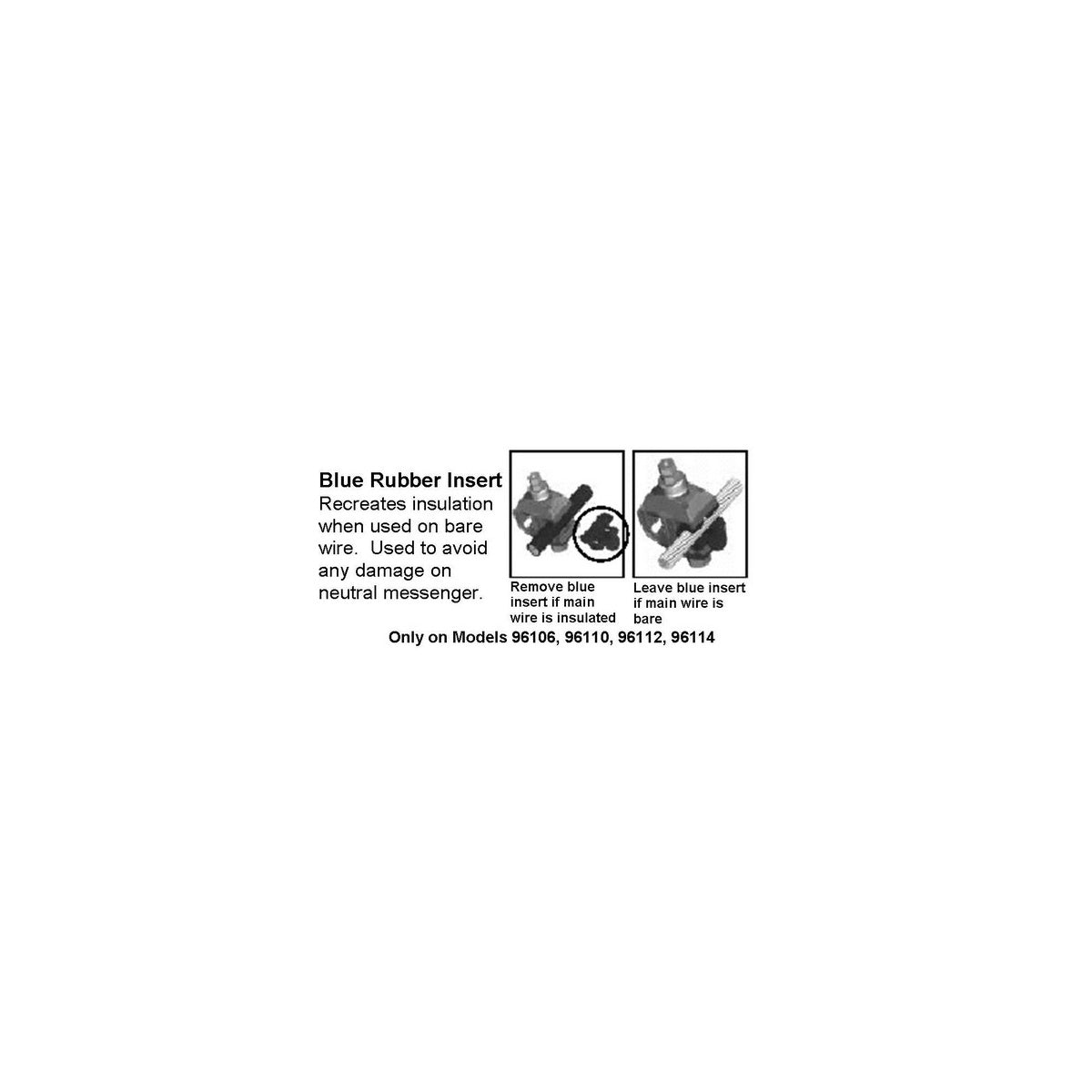

- Jacket insert accommodates non-insulated cable constructions
- Suitable for wire range up to 4/0 on main conductor and 3 on tap conductor
