Above Ground Insulation Piercing Connectors Main 4/0-2 Tap 4/0 - Insulation Piercing Connector

The Above Ground Insulation Piercing Connector, model 96114 by Morris Products, is designed for low voltage power distribution applications up to 600V. This connector facilitates efficient "hot tap" connections with a feed/tap configuration suitable for wire ranges from #14 to 4/0 AWG. It is ideal for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers requiring reliable above-ground insulation piercing connections.

Specifications

• Connector Type: Insulation Piercing - Above Ground
• Material: Copper
• Voltage Rating: 600V
• Temperature Rating: 90¬∞C
• Wire Range: Main 4/0 - 2 AWG, Tap 4/0 - 4 AWG
• Dimensions (H x W x L): 4.3 in x 2.4 in x 3.2 in
• Product Weight: 0.6450 lbs
• Manufacturer Part #: 96114
• UPC: 601986961141
• Bolt Head Size: 1/2 inch
• Torque: 160 inch lbs
• Certifications: UL 486B Dual Rated CU9AL, cUL Yes, ANSI C119.4

Features

• Insulated touch-proof insulation piercing design for safe installation
• Double head shear nut ensures proper torque during installation
• Feed/tap configuration supports low voltage power distribution through 600V

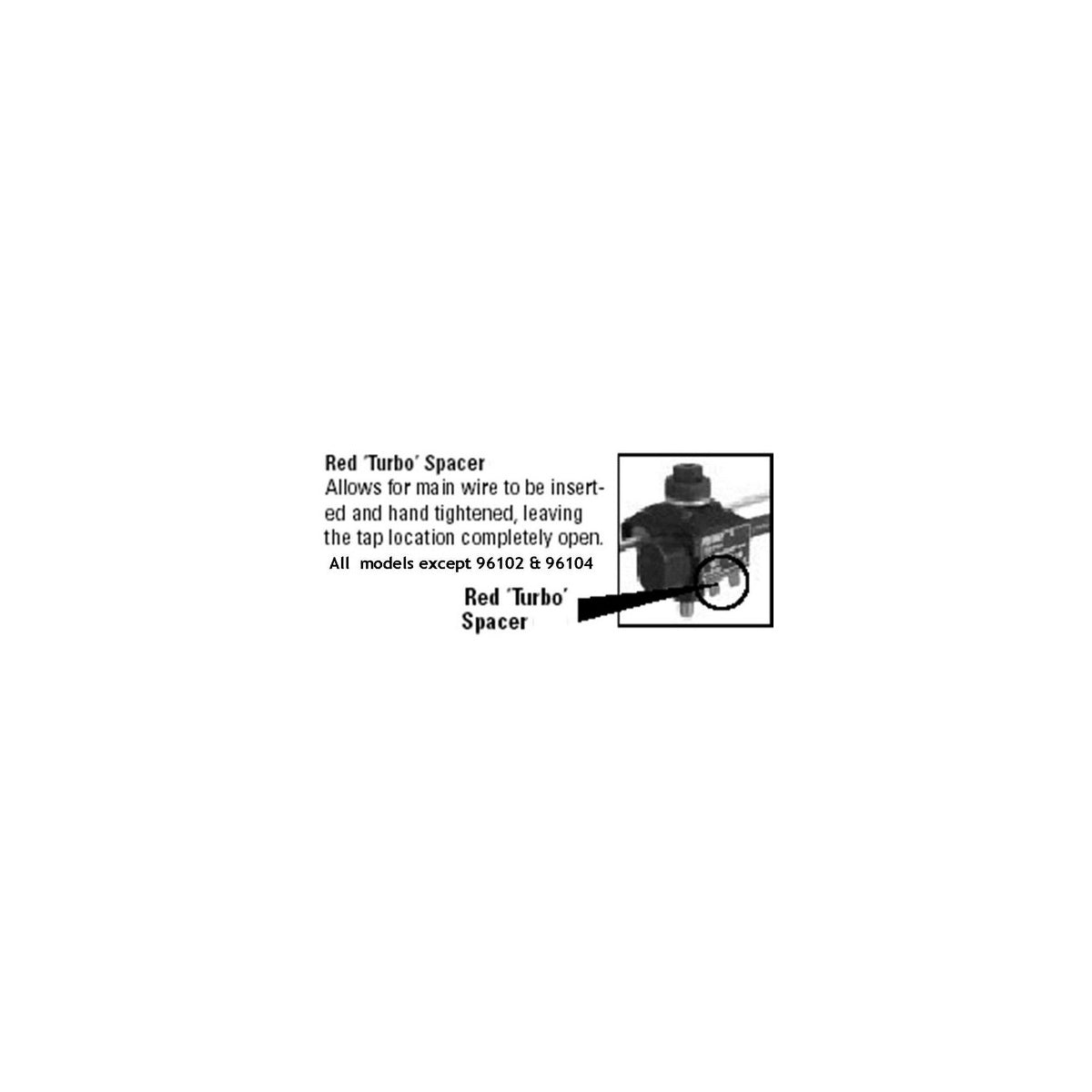

• Red Turbo spacer maintains jaw opening for ease of installation and tap location
• Sealant tank provides watertight seal after insulation piercing
• Jacket insert accommodates non-insulated cable constructions

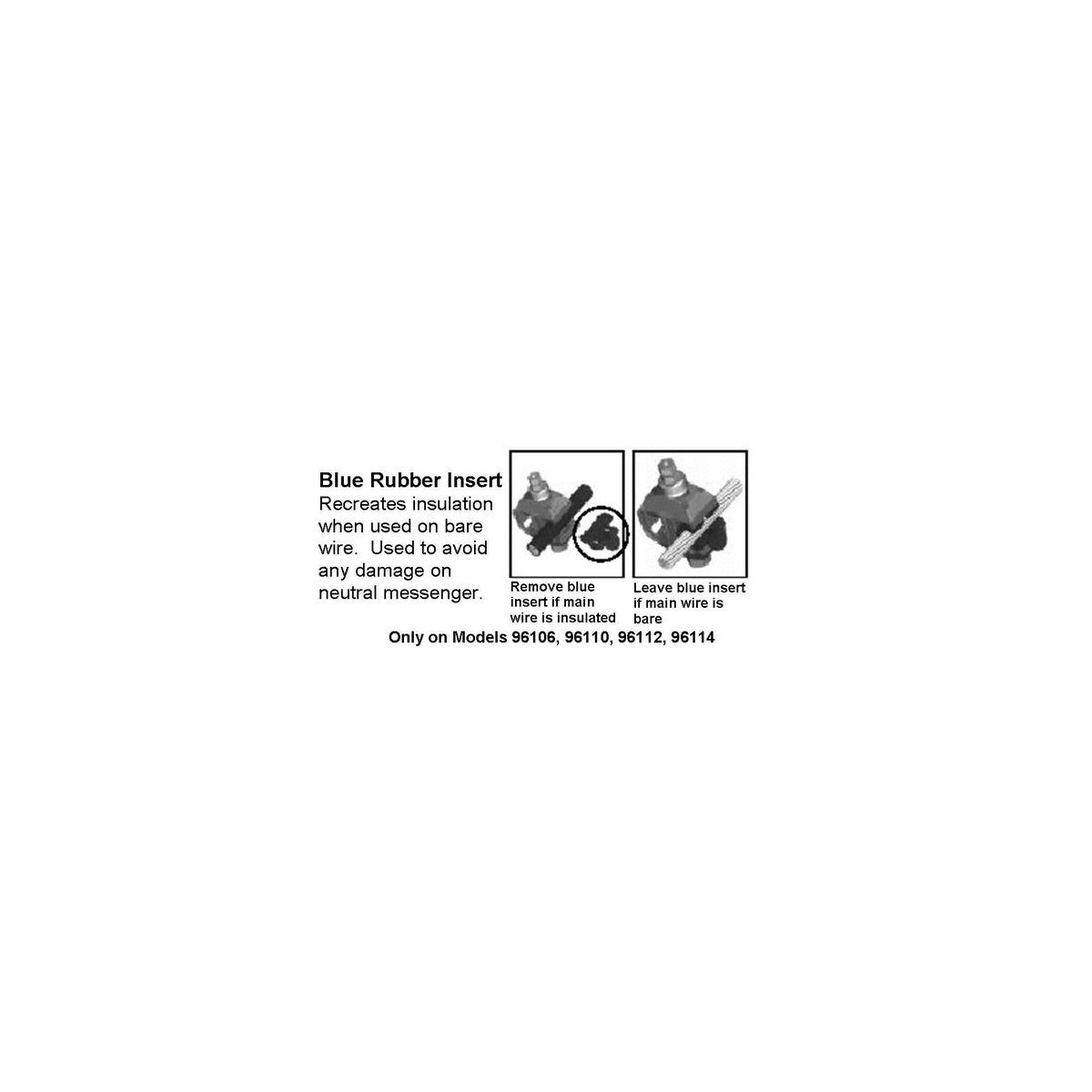

• Blue rubber insert recreates insulation on bare wires to protect neutral messenger (specific to this model)

Downloads & Links

• Spec Sheet
