Above Ground Insulation Piercing Connectors Main 1/0-8 Tap - Insulation Piercing Connector

The Above Ground Insulation Piercing Connector, manufactured by Morris Products, is designed for reliable low voltage power distribution through 600V. It is an insulated, touch-proof connector suitable for electrical distributors and lighting solutions requiring secure wire and cable connections above ground. This connector features a feed/tap configuration and is engineered to maintain a watertight seal after installation, making it suitable for outdoor electrical applications.

Specifications

• Material: Copper
• Connector Type: Insulation Piercing - Above Ground
• Dimensions (H x W x L): 3.7 in x 2 in x 3 in
• Product Weight: 0.45 lb
• Manufacturer: Morris Products
• Manufacturer Part Number: 96106
• UPC: 601986961066

Features

• Insulated touch-proof design for safety during installation and operation
• Double head shear nut ensures proper torque and secure connection
• Feed/tap configuration supports low voltage power distribution up to 600V
• Includes Turco spacer to maintain jaw opening for ease of installation
• Sealant tank provides a watertight seal to protect against environmental exposure
• Jacket insert accommodates non-insulated cable constructions

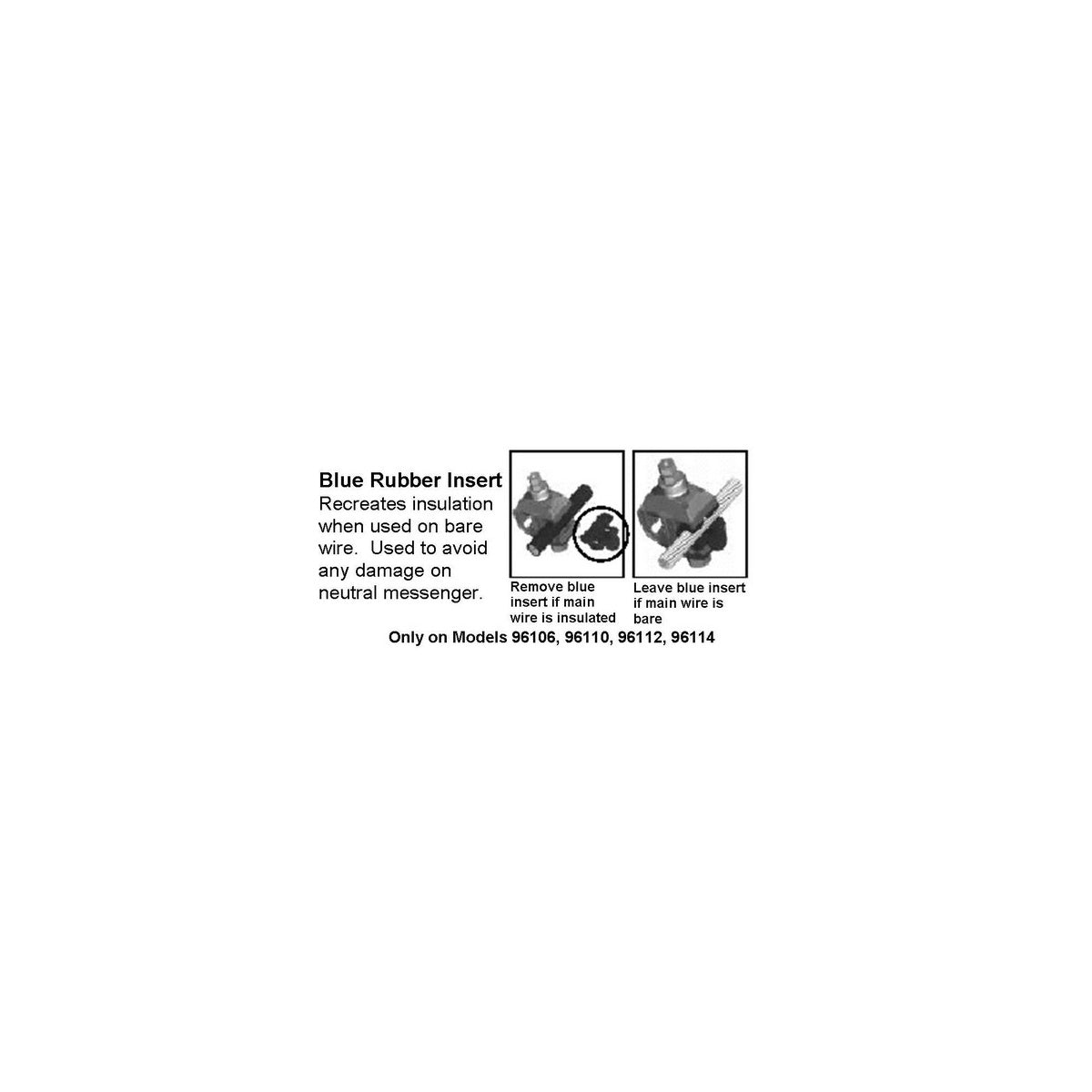

• Blue rubber insert available to protect neutral messenger when used on bare wire (applicable to certain models)

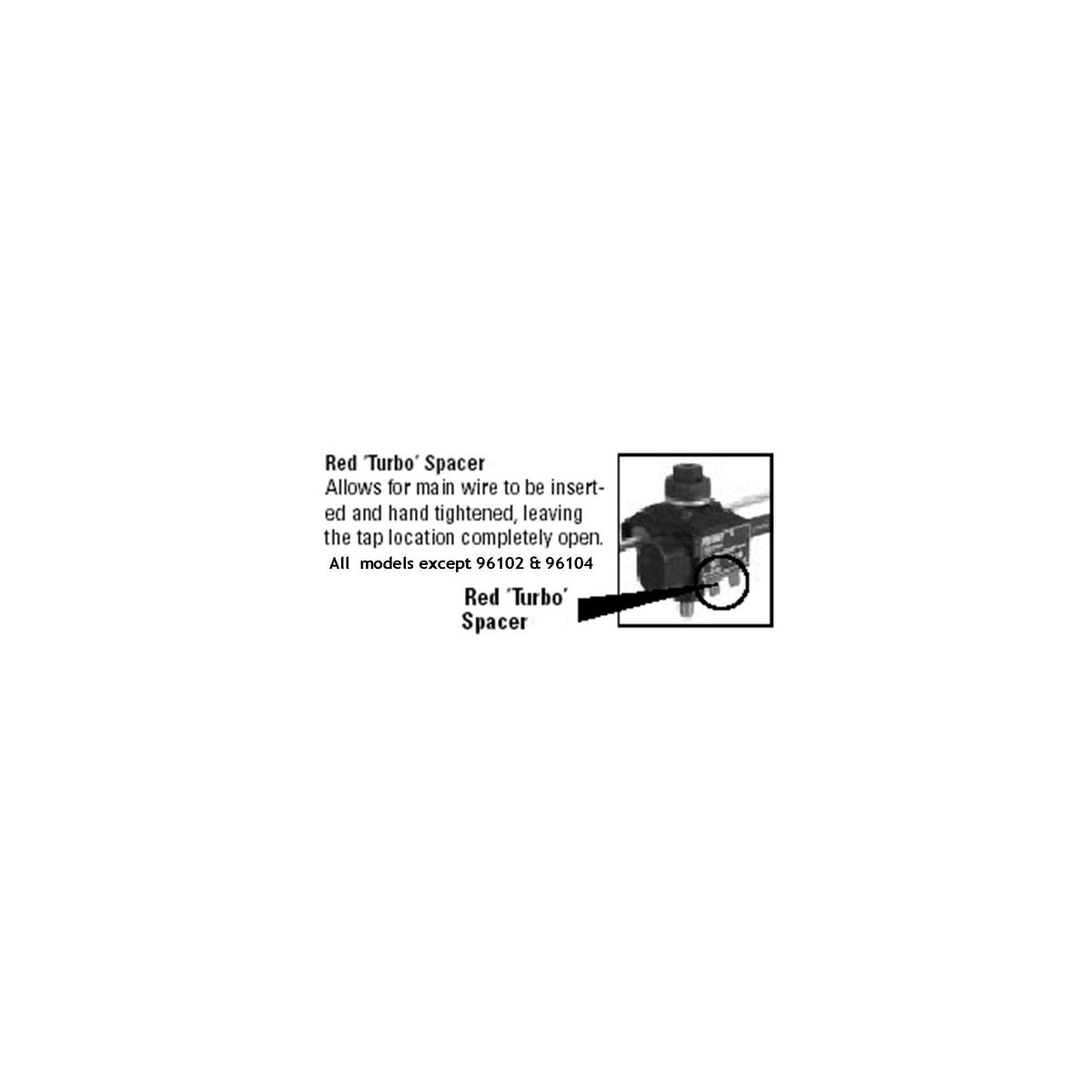

• Red 'Turbo' spacer allows hand tightening of tap location to keep it open during installation (excluded on some models)

Downloads & Links

• Spec Sheet
