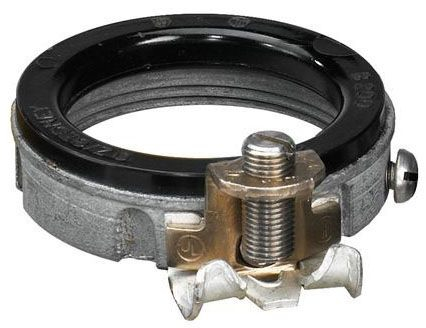

ABLG-2022, IMC/Rigid Conduit Grounding Bushing – Insulated Grounding Bushing

The ABLG-2022 insulated grounding bushing from O-Z Gedney is designed for grounding threaded rigid conduit and IMC. It provides a reliable grounding lug to ensure conduit grounding through an insulated bushing, protecting insulated conductors from abrasion during pulling and mechanical vibration. This specification grade bushing also establishes a voltage gradient between live conductors and ground at points of electrical and mechanical stress on conductor insulation. Ideal for electrical distributors and switchgear suppliers requiring durable grounding solutions in commercial and industrial lighting and wiring applications.

Specifications

• Application: For Threaded Rigid Conduit And IMC
• Material: Copper-Free Aluminum Body, Stainless Steel Screws
• Connection: Set-Screw
• Diameter: 2-3/4 inches
• Height: 7/8 Inch
• Product Weight: 0.2000 lbs
• Manufacturer: O-Z Gedney
• Manufacturer Part #: ABLG-2022

Features

• Provides grounding lug for conduit grounding through insulated bushing
• Protects insulated conductors from abrasion during pulling and mechanical vibration
• Establishes voltage gradient between live conductors and ground at insulation stress points
• Tin plated copper saddle compatible with copper or aluminum conductors from #8 to 4/0
• Spring action design maintains firm contact on grounding conductor
• Set screw ensures fixed alignment and positive ground continuity
• Phenolic insulation rated to 150°C UL, molded over metallic conduit stop, resistant to shatter or shrink at sub-zero temperatures
• Specification grade insulated bushing suitable for commercial and industrial electrical applications
