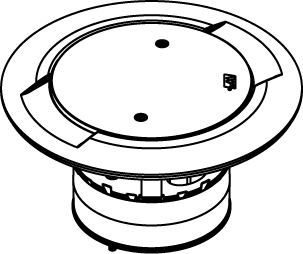

Abandonment Plug Assembly for 4" cored hole – Poke-Thru Device

The Abandonment Plug Assembly for 4" cored hole is designed to effectively seal and maintain the integrity of an unused poke-thru device opening in concrete floors. It is ideal for use in above-grade floor environments where power, communication, and A/V services are routed through floor openings. This assembly includes intumescent fire-stop material to preserve the fire-classification of the floor, along with an integral retainer ring to prevent the unit from pulling up through the floor. The cover is constructed of black die-cast aluminum, providing a durable finish suitable for tile, carpet, or wood-covered floors. Manufactured by Wiremold, this product is a reliable solution for electrical distributors and switchgear suppliers managing floor service access in commercial and institutional settings.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: ABPLUG4
• Country of Origin: Mexico
• Product Weight: 2.35 lbs
• Width: 7.5 in
• Height: 3.875 in
• Construction: Assembled
• UPC: 786564029281

Features

• Complete plug assembly for abandoning an open 4" (102mm) cored hole
• Includes intumescent fire-stop material to maintain fire classification
• Integral retainer ring prevents unit from pulling up through the floor
• Durable black die-cast aluminum cover
• Compatible with tile, carpet, and wood floor coverings
• Maintains UL fire rating of the floor assembly
• Suitable for use in retrofit or new construction applications
