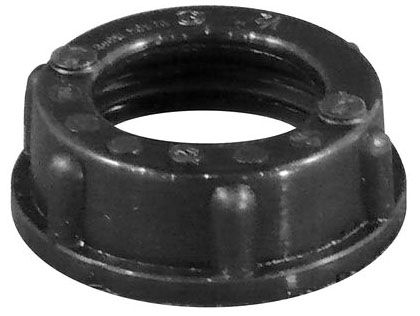

A-125, IMC/Rigid Conduit Bushing – Conduit Sealing Bushing

The A-125 IMC/Rigid Conduit Bushing by O-Z Gedney is designed for use with threaded rigid conduit and intermediate metal conduit (IMC). It serves as a conduit sealing bushing that protects wires and cables from abrasion during installation and mechanical vibration. This product is suitable for electrical distributors and lighting solutions providers requiring reliable conduit fittings for wire and cable installations in commercial and industrial applications.

Specifications

• Application: For Threaded Rigid Conduit And IMC
• Material: Phenolic
• Color: Black
• Connection: Threaded
• Diameter: 2-1/8 inches
• Height: 3/4 Inch
• Product Weight: 0.0500 lbs
• Manufacturer: O-Z Gedney
• Manufacturer Part #: A-125

Features

• Insulating bushing protects wires and cables from abrasion during wire pulling and mechanical vibration
• Molded-on phenolic liner rated for 150°C temperature to prevent popping off or melting
• Positive metallic conduit end stop prevents conduit dislodging from insulating liner, ensuring code compliance
• Original grounding Copper Plus Lay-In-Lug facilitates easier ground wire installation
• Designed for threaded rigid conduit and IMC
