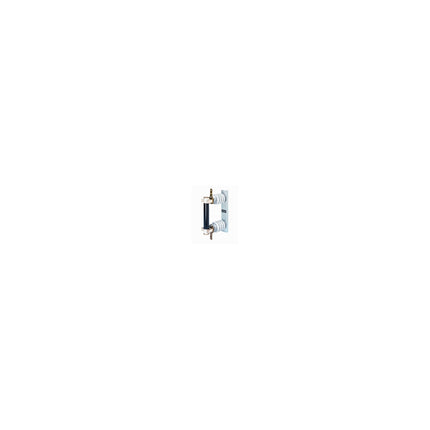

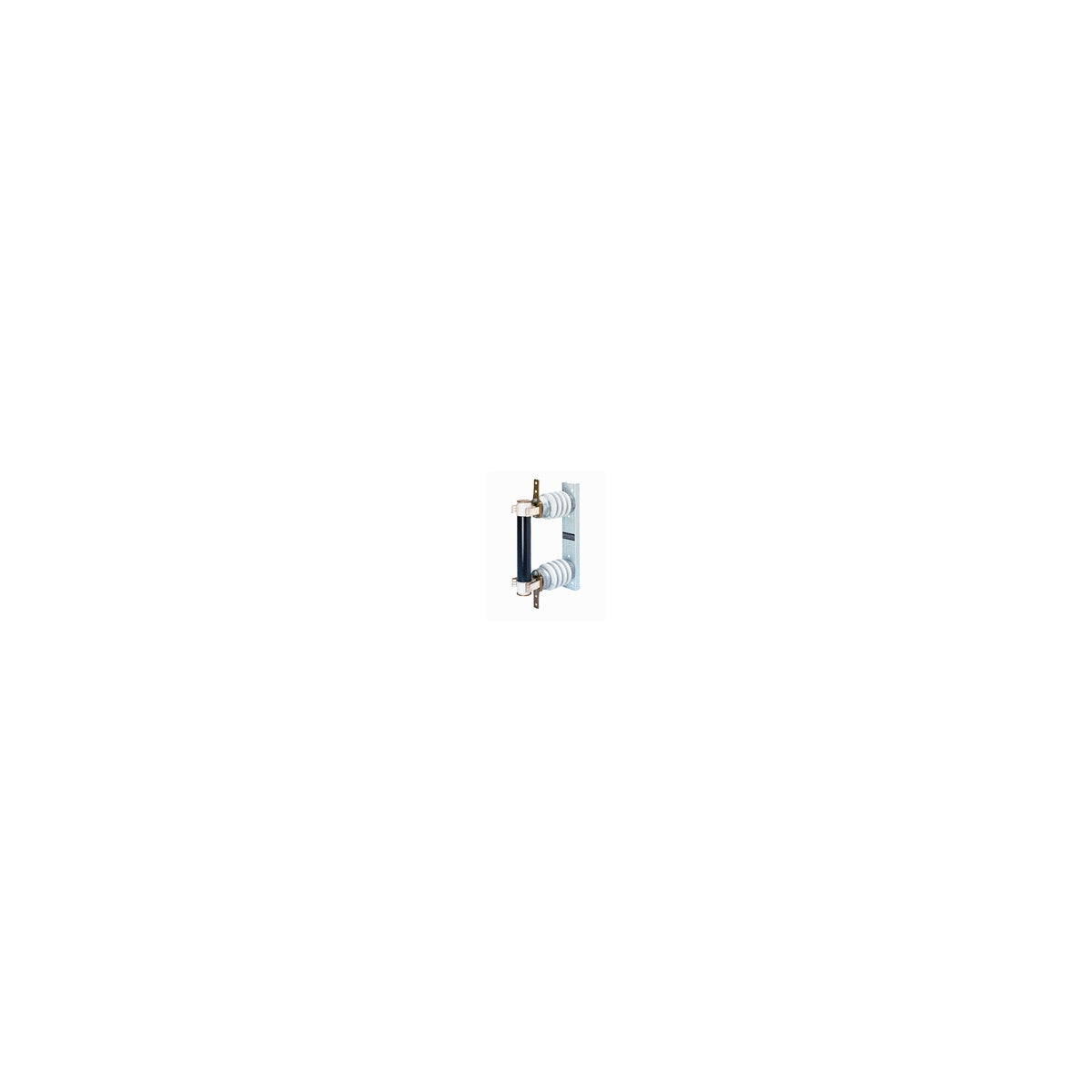

9F61 EKO-1 Outdoor Support Fuse Support for Electrical Distributor Applications

The 9F61 EKO-1 Outdoor Support is a porcelain fuse support designed primarily for use in potential transformer circuits or where a disconnecting or isolating device is present in series with the fuse. Manufactured by Mersen, this product is suitable for outdoor installations and is commonly applied in utilities, industrial plants, hospitals, shopping centers, schools, and office buildings. It serves electrical distributors and switchgear suppliers by providing a reliable mounting solution for fuse units in wire and cable systems.

Specifications

• Material: Porcelain
• Body Material: Zinc Plated Steel Base and Gray Porcelain Insulator
• Contact Material: Copper Bronze and AG Plated Copper
• Mounting: Screw
• Connection: Bus
• Number of Poles: 1
• Dimensions (L×W×H): 24 in × 4 in × 14.43 in
• Product Weight: 60 lbs
• Manufacturer Part #: 9F61CGL209
• UPC: 782001398712
• Application: Utilities, Industrial Plants, Hospitals, Shopping Centers, Schools, Office Buildings

Features

• Non-disconnecting fuse support designed for potential transformer circuits
• Compatible with disconnecting switch devices that isolate protected equipment
• Includes live parts on both ends for secure electrical connection
• Can be mounted vertically or horizontally for installation flexibility
• Outdoor rated (EKO type) for use in exposed environments
