WIRE 3/0-2&1/0-1-AL-UD-HOLLINS-1000
SKU: #258125
Part: #3/0-2&1/0-1-AL-UD-HOLLINS-1000
UPC: 980120596358
WIRE 3/0-2&1/0-1-AL-UD-HOLLINS-1000
SKU: #258125
Part: #3/0-2&1/0-1-AL-UD-HOLLINS-1000
UPC: 980120596358
Description

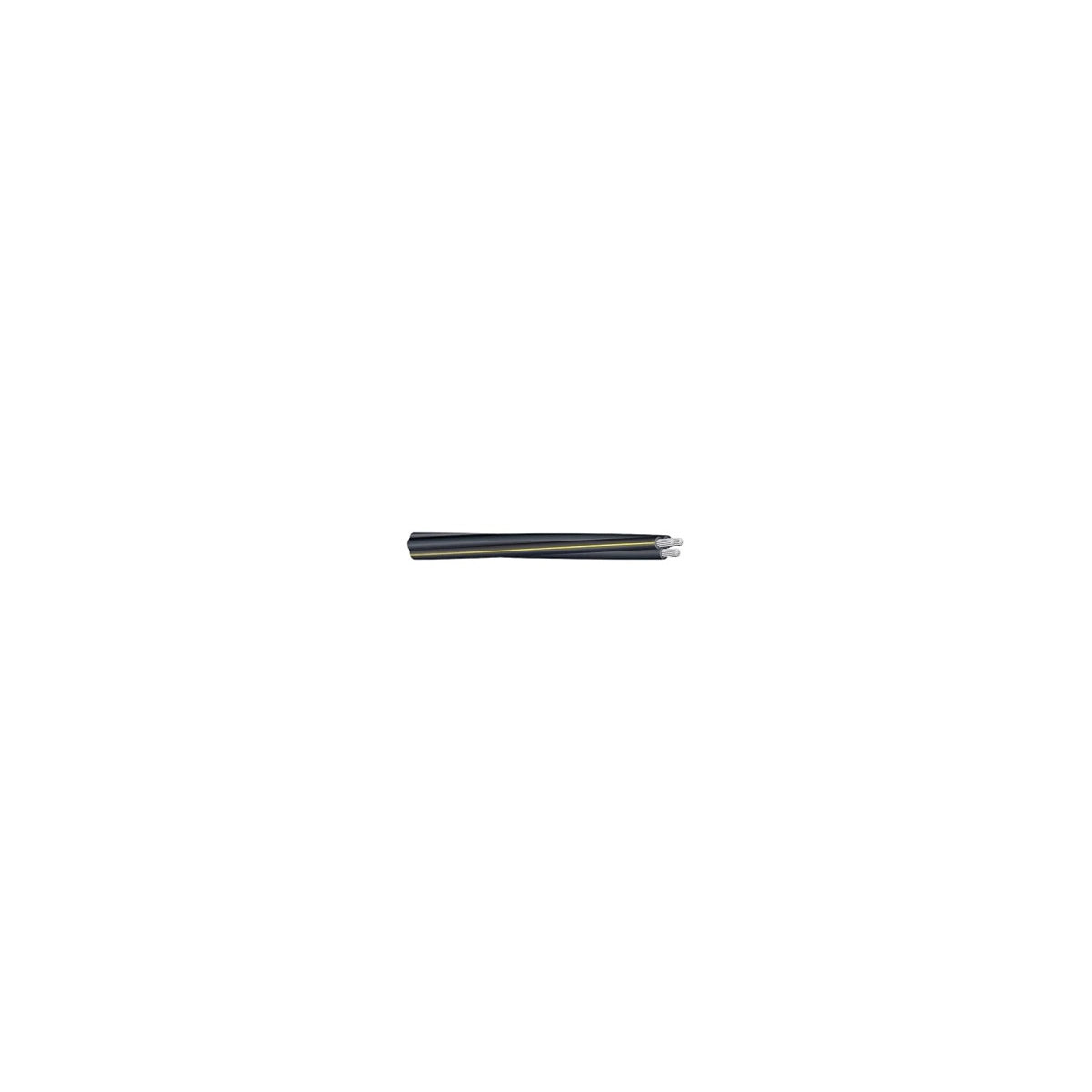

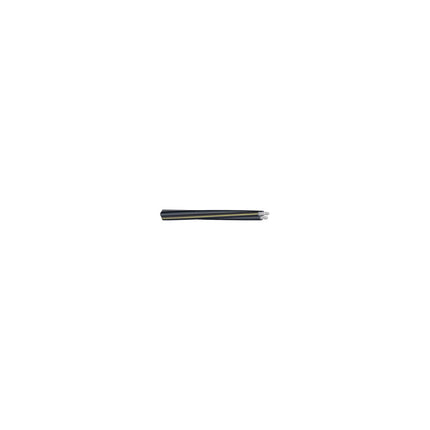

WIRE 3/0-2&1/0-1-AL-UD-HOLLINS-1000 Underground Distribution Cable
This aluminum conductor underground distribution cable is designed for direct burial applications, suitable for electrical distributors and lighting solutions requiring reliable wire and cable rated for 600 V. It supports current ratings up to 280 amperes in direct burial and 205 amperes in duct installations, making it appropriate for switchgear suppliers and electrical infrastructure projects.
Specifications
- Voltage Rating: 600 V
- Current Rating: 205 amperes
- Number of Conductors: 3
- Conductor Size: 3/0 AWG
- Conductor Material: Aluminum
- Insulation Material: XLPE
- Outer Diameter: 1302 mil
- Length: 1000 ft
- Temperature Rating: 90 Deg C
- Approval: UL 854
- Neutral Conductor Size: 1/0 AWG
- Package Type: Reel
- Product Weight: 0.5810 (unit not specified)
Features
- Type Direct Burial rated for underground installation
- Stranding: 17 strands for phase conductors, 9 strands for neutral
- Trade Name: Hollins
