- Application Multiple Circuits for Branch, Feeder and Service Power Distribution, Power, Lighting, Control and Signal Circuits, Fished or Embedded in Plaster and Concealed or Exposed Installations
Specifications

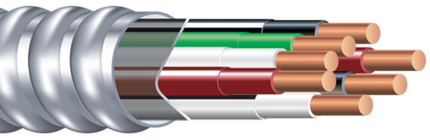

- Type: MC
- Voltage Rating: 600 V
- Conductor Material: Soft Drawn Copper
- Conductor Size: 12 AWG
- Number of Conductors: 6
- Stranding: Solid
- Armor Material: Lightweight Aluminum
- Jacket Material: PVC
- Insulation Material: THHN/THWN
- Color Code: Black/White/Red/Black with White Stripe/Red with White Stripe/White with Black Stripe
- Ground Conductor Type: 12 AWG Green Insulated
- Outer Diameter: 0.574 Inch
- Length: 1000 Ft
- Temperature Rating: 90 Deg C
- Weight: 314 Lb/MFt
- Package Type: Spool/Reel
- Approval: UL 83/1569/1685, NEC
More Information
Manufacturer Catalog Number
MC-AL-12/6-SOL-CU-1000S/R
Weight
0.205
Length
1000
Color
Silver
Conductor Material
Copper
Conductor Size
12
Strands
Solid
Voltage
600 volts
Wire Color
Black/White/Red/Black with White Stripe/Red with White Stripe/White with Black Stripe
Wire Length
1000
Wire Size
12
