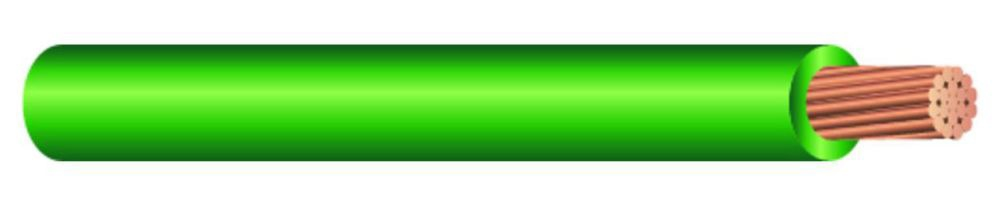

WIRE XHHW-10-GRN-7STR-CU-2500S/R Building Wire

This stranded XHHW copper wire, with a conductor size of 10 AWG and green insulation, is designed for electrical distribution applications. Suitable for use by electrical distributors and switchgear suppliers, it provides reliable current carrying capacity and durability for building wire installations. The wire length is 2,500 feet, making it ideal for large-scale wiring projects requiring consistent performance and compliance with electrical standards.

Specifications

• Conductor Material: Copper
• Conductor Size: 10 AWG
• Wire Type: Stranded XHHW
• Color: Green
• Length: 2500 ft
• Current Rating: 35 amperes
• Product Weight: 0.0390 lbs (per unit)
• Manufacturer Part #: XHHW-10-GRN-7STR-CU-2500S/R

Features

• Stranded construction for flexibility and ease of installation
• XHHW insulation suitable for wet and dry locations
• Rated for 35 amperes current capacity
• Green color coding for grounding or specific circuit identification

Downloads & Links

• Spec Sheet
