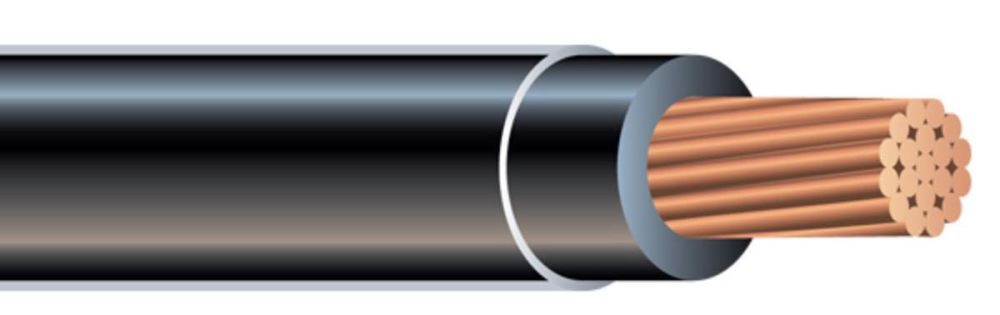

WIRE THHN-8-BLK-19STR-CU-2500S/R Building Wire

This stranded THHN copper wire is designed for electrical distribution and wiring applications requiring durable and flexible conductors. Suitable for use in building wire installations, it supports up to 40 amperes of current and operates at a maximum temperature of 90°C. Ideal for electrical distributors and lighting solutions needing reliable wire and cable products.

Specifications

• Conductor Size: 8 AWG
• Conductor Material: Copper
• Wire Type: Stranded THHN
• Color: Black
• Length: 2500 Ft
• Current Rating: 40 amperes
• Max. Operating Temperature: 90°C
• Product Weight: 0.0630 lbs
• Manufacturer Part #: THHN-8-BLK-19STR-CU-2500S/R

Features

• Stranded conductor for enhanced flexibility
• Rated for 600V applications
• Suitable for dry and wet locations per THHN/THWN standards
• Durable insulation with nylon jacket for mechanical protection
