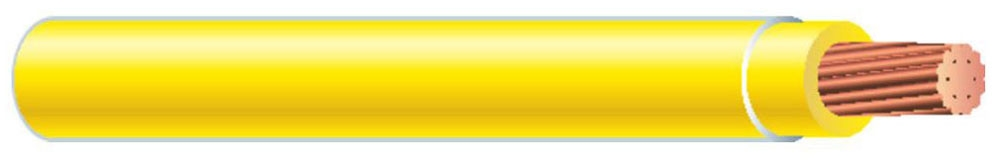

WIRE TFFN-18-YEL-16STR-CU-500S/R Fixture Wire

This stranded TFFN 18 AWG copper wire, with yellow insulation, is designed for fixture wiring applications. It is suitable for electrical distributors and lighting solutions requiring flexible, durable wire. The product comes in a 500-foot spool, ideal for use in wire and cable supply and switchgear installations.

Specifications

• Conductor Size: 18 AWG
• Conductor Material: Copper
• Wire Type: Stranded TFFN
• Color: Yellow
• Length: 500 Ft
• Product Weight: 0.0070 lbs
• Manufacturer Part #: TFFN-18-YEL-16STR-CU-500S/R

Features

• Stranded conductor for enhanced flexibility
• Vinyl insulation thickness of 15 mils with nylon jacket of 4 mils (per TFFN standards)
• Nominal outer diameter approximately 85 mils
• Designed to meet general ampacity requirements per NEC 2008
