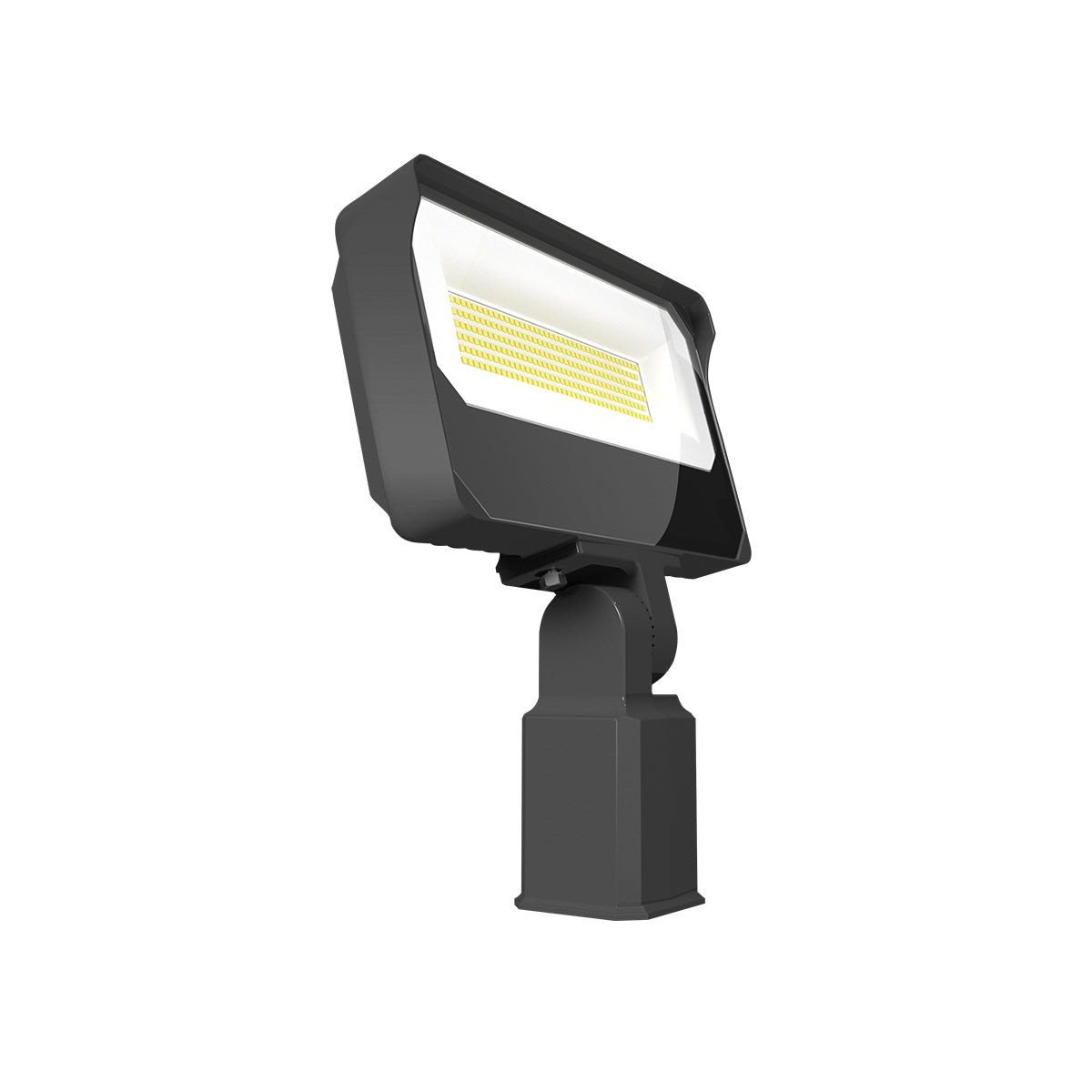

90W/80W/70W Slipfitter Bronze LED Floodlight with Selectable Color Temperature

This RAB X34L field-adjustable LED floodlight offers versatile lighting solutions suitable for commercial and industrial outdoor applications. Designed for electrical distributors and lighting professionals, it features selectable wattage and color temperature settings to optimize illumination performance. The bronze finish and slipfitter mounting make it compatible with standard 2 3/8” O.D. tenons, facilitating easy installation by switchgear suppliers and wire and cable installers in wet locations.

Specifications

• Manufacturer: RAB
• Model Number: X34L
• Input Wattage: 68.1-93.6 W
• Power Output Selection: 90W, 80W, 70W
• Color Temperature (CCT) Selection: 3000K, 4000K, 5000K
• Dimensions (L √ó W √ó H): 14.57 in √ó 5.82 in √ó 3.47 in
• Product Weight: 5.82 lbs
• Finish: Bronze
• Mounting: Slipfitter for 2 3/8‚Äù O.D. Tenon
• Operating Voltage: Universal 120V‚Äì277V, 50/60 Hz
• Dimming: 0-10V dimmable
• Suitable for Wet Locations

Features

• Field-adjustable wattage and color temperature for customizable lighting
• Photocell option with factory default OFF, user-selectable ON/OFF
• Universal voltage driver compatible with standard electrical supply
• Slipfitter mounting with adjustable angle for precise aiming
• UL certified liquid-tight cord grip for wet location safety
• Easy installation with set screws and locking bolt for secure fixture attachment
• Maintenance-friendly design with non-abrasive lens cleaning instructions

Downloads & Links

• Instructions
