90D duplex SNPT Connector 1/2"
SKU: #70861
Part: #84690ST
UPC: 018997582300
90D duplex SNPT Connector 1/2"
SKU: #70861
Part: #84690ST
UPC: 018997582300
Total Price: $4.55 per each Sold in increments of 10 each
Next day delivery
Description

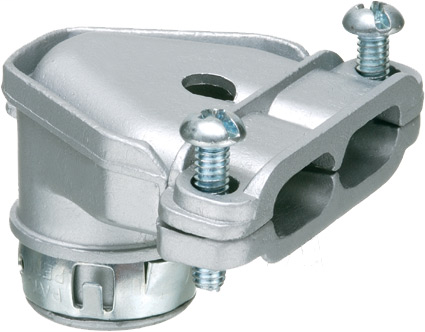

90D duplex SNPT Connector 1/2" – Electrical Connector for Wire and Cable
The 90D duplex SNAP-TITE® Connector 1/2" is a zinc die-cast electrical fitting designed for secure connections of NM, Flex, AC, and MCI steel and aluminum jacketed cables, including MCI-A cable. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable conduit connections that are concrete tight when taped. This connector supports wire and cable installations in commercial and industrial lighting solutions and electrical distribution systems.
Specifications
- Manufacturer Part #: 84690ST
- Material: Zinc
- Color: Silver
- Knockout Size: 1/2 inches
- Trade Size: 3/8
- Dimensions (inches): A - 1.087, B - 1.707, C - 1.965, D - 0.458
- Product Weight: 0.1460 lbs
- Cable Range: 0.512 - 0.610 inches
- UPC: 018997582300
Features
- Zinc die-cast construction for durability
- Twin screw design for secure fastening
- Compatible with NM, Flex, AC, and MCI steel and aluminum jacketed cables
- Concrete tight when taped to prevent moisture ingress
- UL listed and tested to meet ground fault requirements
- Patented SNAP-TITE® design for reliable cable connection
