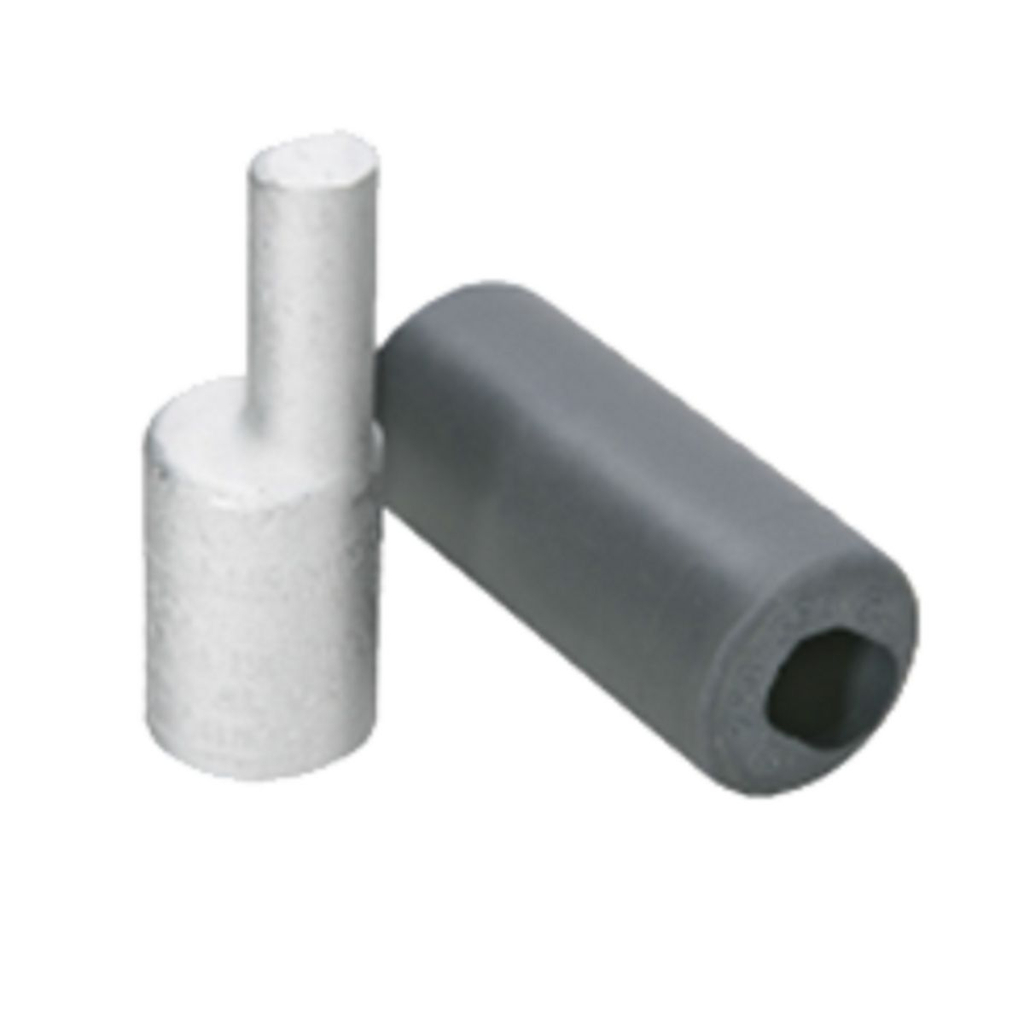

900 kcmil Aluminum Termination Pin - Electrical Wire Termination

This 900 kcmil aluminum termination pin is designed for wire termination applications, suitable for electrical distributors and lighting solutions requiring reliable wire and cable connections. It features a tin-plated aluminum construction with an offset pin connection type, ensuring corrosion resistance and secure electrical connectivity. The product is UL listed and CSA approved, making it suitable for use in switchgear and other electrical equipment installations.

Specifications

• Material: Aluminum
• Conductor Material: Aluminum / Copper
• Connection Type: Offset Pin
• Insulation Type: TPV
• Color: Gray
• Finish: Tin-Plated
• Dimensions (L x W x H): 4.49 in x 1.5 in x 0.91 in
• Voltage Rating: 35 kV
• Application: Wire Termination
• Insulated: Yes
• Manufacturer: Burndy
• Country of Origin: United States
• UL Listed: Yes
• CSA Approved: Yes
• Product Weight: 0.5 lb

Features

• All-aluminum electro-tin plated design eliminates bi-metallic corrosion
• Shortest connector length design for easy installation in limited space
• Solid electro-tin plated aluminum plug ensures proper electrical connection
• Equivalent cross-sectional area to copper wire allows use of larger aluminum wire
• Offset plug design maximizes space utilization and reduces conductor interference
• Factory pre-filled with PENETROX oxide inhibiting compound for air-tight connections
• EPDM rubber covers supplied, rated for 600V, eliminating the need for taping
• Requires only 5 die sets for installation from #6 to 750 kcmil, reducing inventory
• Supplied in plastic convenience pack to keep cover and connector free of contaminants
• Clearly marked with catalog number, wire size, and color-coded die index for easy identification
