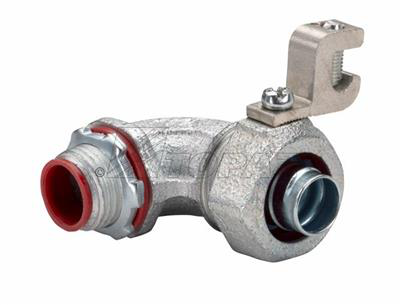

90° Insulated Liquidtight Connector with Grounding Lug – Liquidtight Connector

The 90° Insulated Liquidtight Connector with Grounding Lug by Southwire is designed for secure connection of liquidtight conduit systems and termination of external bonding conductors running parallel to the conduit. This connector is suitable for use by electrical distributors and switchgear suppliers requiring reliable grounding solutions in hazardous locations. It provides protection against abrasion and environmental elements, making it ideal for wire and cable installations in lighting solutions and industrial electrical applications.

Specifications

• Manufacturer Part #: 499SGR
• Product Weight: 8.8 lbs
• Material: Malleable iron body, steel locknut, aluminum grounding lug
• Finish: Zinc electroplated
• UL Listings: UL 467, UL 486A
• Federal Specification: W-S-610E
• NEMA Standard: GR 1-2017
• Conduit Size: 3-1/2"
• Lug Size: 6/250

Features

• Liquidtight, raintight, and oiltight design
• Lay-in grounding lug for easy bonding conductor termination
• Insulated throat to protect conductors from abrasion damage
• Zinc electroplated finish for enhanced durability
• UL listed for use in hazardous locations per NEC 501-4(b), 502-4(a), (2)503-3(a)
• Suitable for grounding sizes 3/8" through 1-1/2" under NEC 351-I
