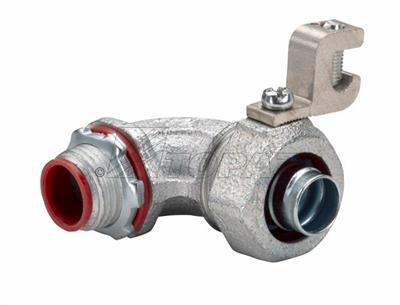

90° Insulated Liquidtight Connector with Grounding Lug
SKU: #175235
Part: #495SGR
UPC: 751338868854
90° Insulated Liquidtight Connector with Grounding Lug
SKU: #175235
Part: #495SGR
UPC: 751338868854
Next day delivery
Description
90° Insulated Liquidtight Connector with Grounding Lug – Liquidtight Connector
This 90° insulated liquidtight connector with grounding lug is designed to connect liquidtight conduit and terminate an external bonding conductor running parallel to the conduit. It is suitable for use by electrical distributors and switchgear suppliers requiring durable, code-compliant fittings for grounding and conduit connections in various applications including hazardous locations.
Specifications
- Manufacturer: Southwire
- Manufacturer Part #: 495SGR
- Product Weight: 1.1925 lbs
- UPC: 751338868854
- Material: Malleable iron with steel locknut and aluminum lug
- Finish: Zinc electroplated
Features
- Liquidtight, raintight, and oiltight construction
- Lay-in grounding lug for external bonding conductor termination
- Insulated throat protects conductors from abrasion damage
- Zinc electroplated for enhanced durability
- UL listed for use in hazardous locations per NEC 501-4(b), 502-4(a), (2)503-3(a)
- Complies with UL 467, UL 486A, Fed. Spec W-S-610E, and NEMA GR 1-2017 standards
