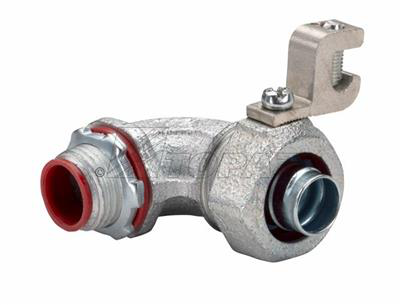

90° Insulated Liquidtight Connector with Grounding Lug – Liquidtight Connector

This 90° insulated liquidtight connector with grounding lug is designed for secure connection of liquidtight conduit and termination of an external bonding conductor running parallel to the conduit. Manufactured by Southwire, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable grounding and conduit connection in compliance with NEC code specifications. The connector is ideal for applications in hazardous locations and supports grounding for conduit sizes from 3/8" through 4".

Specifications

• Manufacturer Part #: 500SGR
• Product Weight: 15.0000 lbs
• UPC: 751338868908
• Material: Malleable iron body, steel locknut, aluminum lug
• Finish: Zinc electroplated for durability
• Conduit Size Compatibility: 4" (per catalog data for 500SGR)
• UL Listings: UL 467, UL 486A
• Standards: Federal Spec W-S-610E, NEMA GR 1-2017

Features

• Liquidtight, raintight, and oiltight design
• Lay-in grounding lug for easy bonding conductor termination
• Insulated throat protects conductors from abrasion damage
• Zinc electroplated finish enhances corrosion resistance
• UL listed for hazardous locations including Class I Div. 2, Class II Div. 1 and 2, Class III Div. 1 and 2
• Suitable for grounding sizes 3/8" through 4" per NEC 351-I
