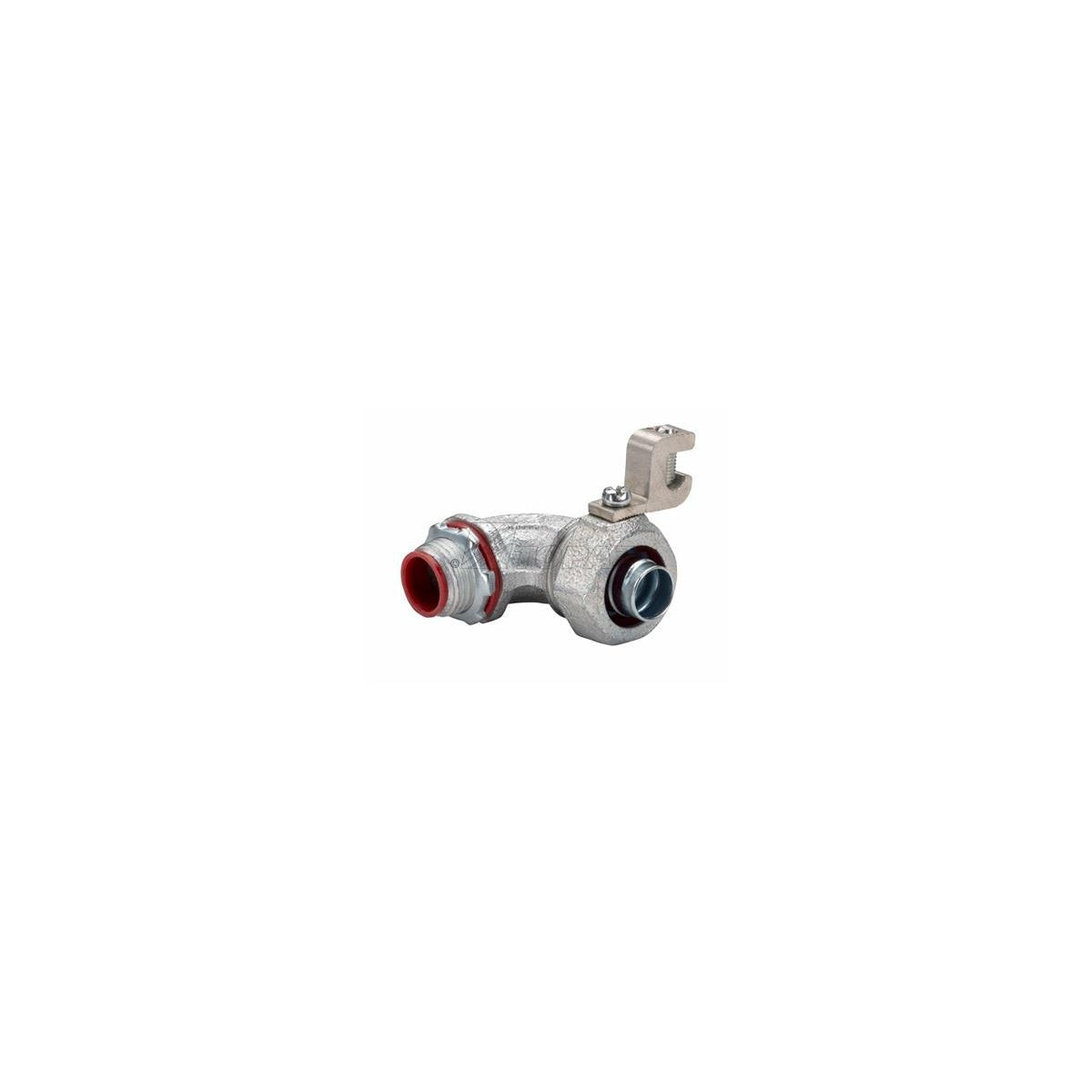

90° Insulated Liquidtight Connector with Grounding Lug – Liquidtight Connector

The 90° Insulated Liquidtight Connector with Grounding Lug by Southwire is designed for secure connection of liquidtight conduit and termination of an external bonding conductor running parallel to the conduit. Ideal for electrical distributors, lighting solutions, and wire and cable applications, this connector complies with NEC requirements and is UL listed for hazardous locations. It is a reliable component for switchgear suppliers and electrical contractors requiring durable, code-compliant conduit fittings.

Specifications

• Manufacturer: Southwire
• Manufacturer Part Number: 490SGR
• Material: Malleable iron body, steel locknut, aluminum grounding lug
• Finish: Zinc electroplated for corrosion resistance
• Conduit Size: 3/8" (specific to part 490SGR)
• Lug Size: 14-4 AWG
• Product Weight: 0.3 lbs
• UL Listings: UL 467, UL 486A
• Compliance: Fed. Spec. W-S-610E, NEMA GR 1-2017
• Certifications: UL Listed for hazardous locations per NEC 501-4(b), 502-4(a), 503-3(a) Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2

Features

• Liquidtight, raintight, and oiltight sealing to protect conductors
• Lay-in grounding lug for easy external bonding conductor termination
• Insulated throat to prevent conductor abrasion and damage
• Zinc electroplated finish for enhanced durability and corrosion resistance
• Compliant with NEC code requirements for bonding jumper length and orientation
• Suitable for grounding sizes 3/8" through 1-1/2" under NEC 351-I
